Solar Power Cable

China Suppliers ICHYTI Wholesale solar power cable Quotation also known as photovoltaic dedicated cables, are mainly used in photovoltaic power plants and have the following advantages: high temperature resistance, cold resistance, oil resistance, acid and alkali resistance, UV protection, flame retardancy and environmental protection, and long service life. It is mainly suitable for environments under harsh climatic conditions.

ICHYTI solar power cable Parameter (Specification)

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571 (VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI solar power cable Feature

◉ The minimum bending radius of the cable is 4 times the diameter (for fixed installation) or 5 times the diameter (in case of bending).
◉ The cable has passed dynamic penetration testing and complies with Appendix F standard of 2 PfG 1169/08.2007.
◉ The cable has good notch propagation performance and complies with Appendix G standard of 2 PfG 1169/08.2007.
◉ The insulation and sheath of the cable have good tensile strength and elongation, meeting the EN 60811 standard.
◉ The expected service life of this cable is 25 years.

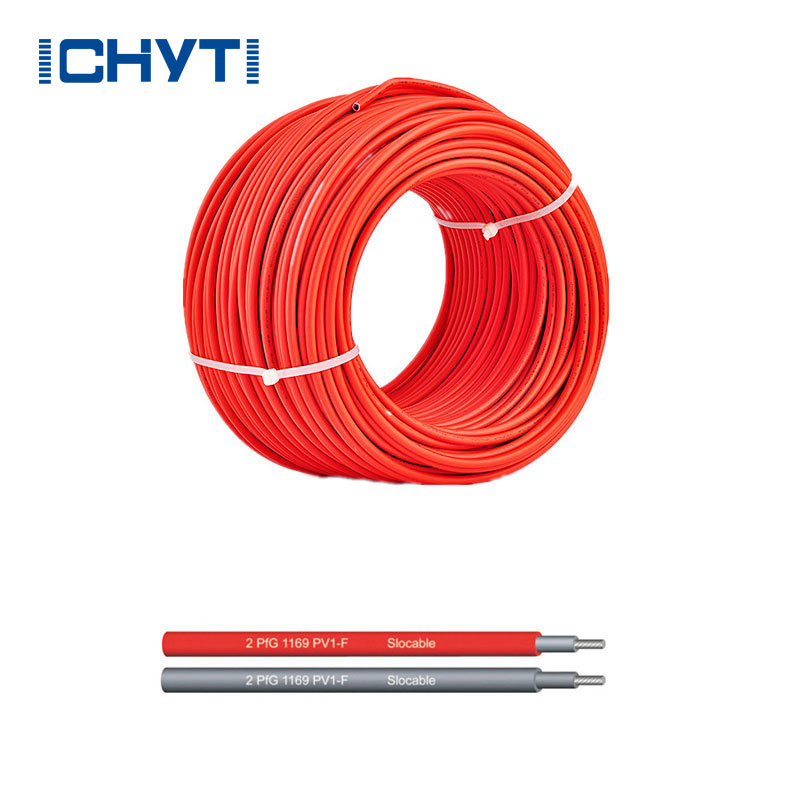

ICHYTI solar power cable Details and structure

ICHYTI solar power cable Advantage

1. Photovoltaic cables:
Conductor: Copper conductor or tinned copper conductor
Insulation: irradiation cross-linked polyolefin insulation
Sheath: irradiation cross-linked polyolefin insulation

2. Ordinary cable:

Conductor: Copper conductor or tinned copper conductor
Insulation: PVC or cross-linked polyethylene insulation
Sheath: PVC sheath

3. Ordinary cables are only suitable for laying in ordinary environments, while photovoltaic cables can be used for laying in harsh environments.
