Solar Panel Pv Wire

ICHYTI is a manufacturer and supplier of solar panel pv wire in China, providing wholesale services for solar panel pv wire. If you are interested in solar panel pv wire products, please contact us. We adhere to the principles of reliable quality, fair prices, and dedicated service. ICHYTI have over 10 years of experience in the electrical industry and can produce solar DC modules that meet the latest DC standards. We guarantee high-quality product quality and excellent service. Looking forward to establishing a good long-term cooperative relationship with you and your company.

Send Inquiry PDF DownLoad

Product Description

In photovoltaic power plants, a large number of outdoor DC cables are required. Due to harsh environmental conditions, the material selection of cables should consider their resistance to UV, ozone, severe temperature changes, and chemical erosion characteristics. Long term use of cables made of ordinary materials in this environment can cause the cable sheath to be fragile and even decompose the cable insulation layer. This situation directly damages the cable system and increases the risk of cable short circuits.

Therefore, it is necessary to use China Suppliers ICHYTI Low Price solar panel pv wire in photovoltaic power plants. solar panel pv wire not only have excellent weather resistance, UV resistance, and ozone erosion performance, but also can withstand a larger range of temperature changes.

ICHYTI solar panel pv wire Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
Type	mm2	No.xcp(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 xq)03	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p03	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI solar panel pv wire Feature

◉ It has been tested according to Method B in Part 8.1.3 of EN 50396 standard and exhibits good ozone resistance.
◉ According to the HD 605/A1 standard, it has excellent weather resistance and UV resistance.
◉ It has ammonia resistance.
◉ It has excellent oil resistance and chemical resistance.
◉ High wear resistance, able to withstand harsh usage conditions.
◉ According to EN 60811-2-1 standard (oxalic acid and sodium hydroxide test), it has good acid and alkali resistance.

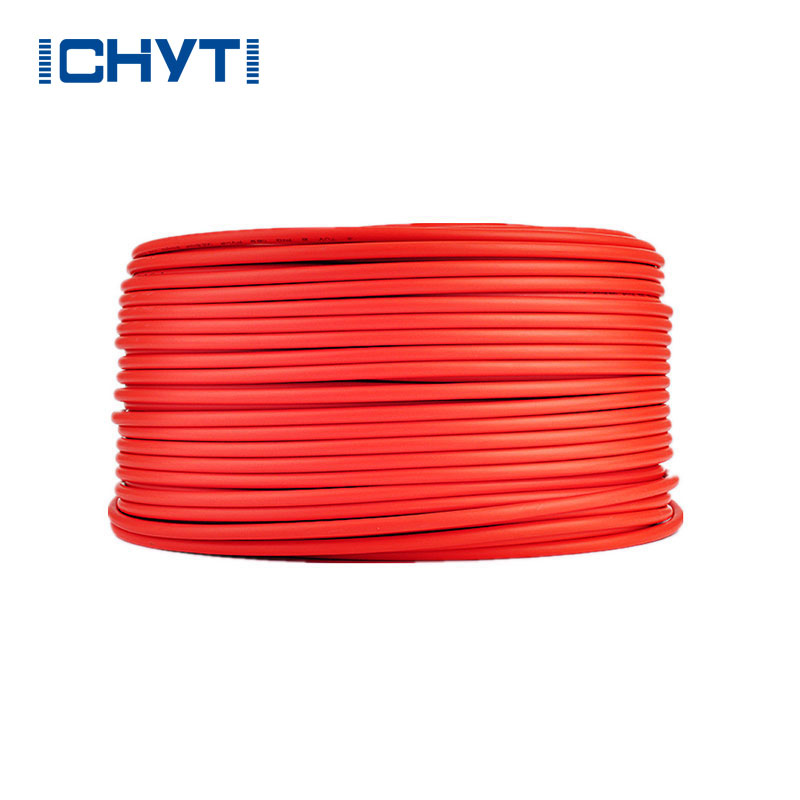

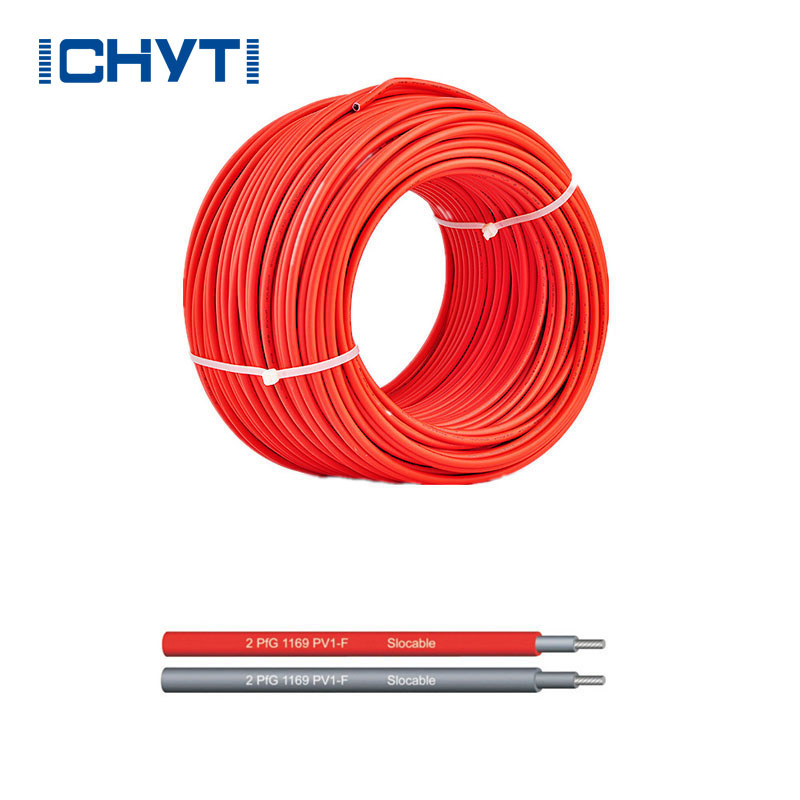

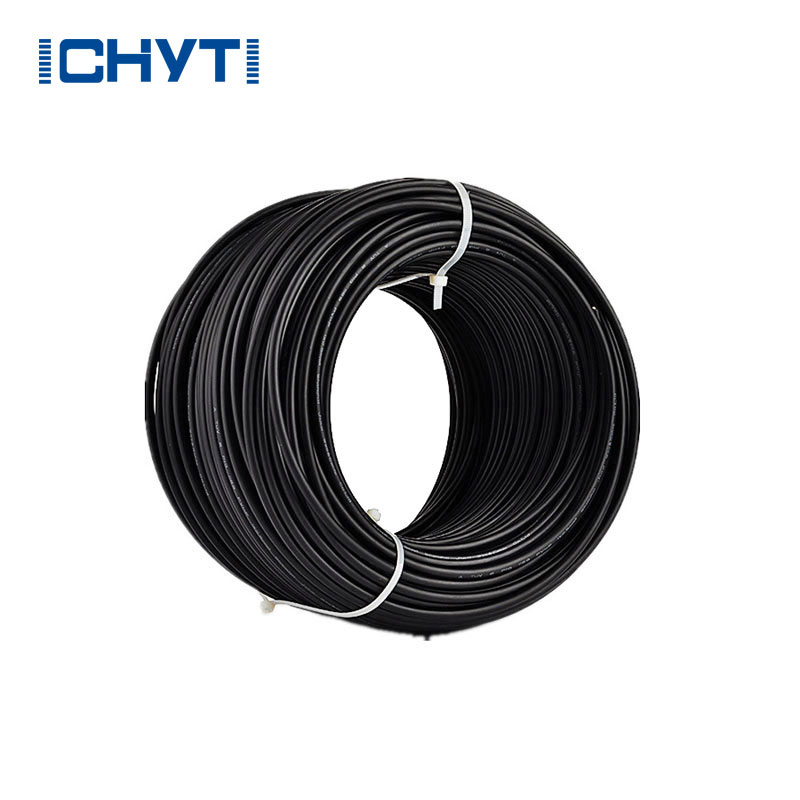

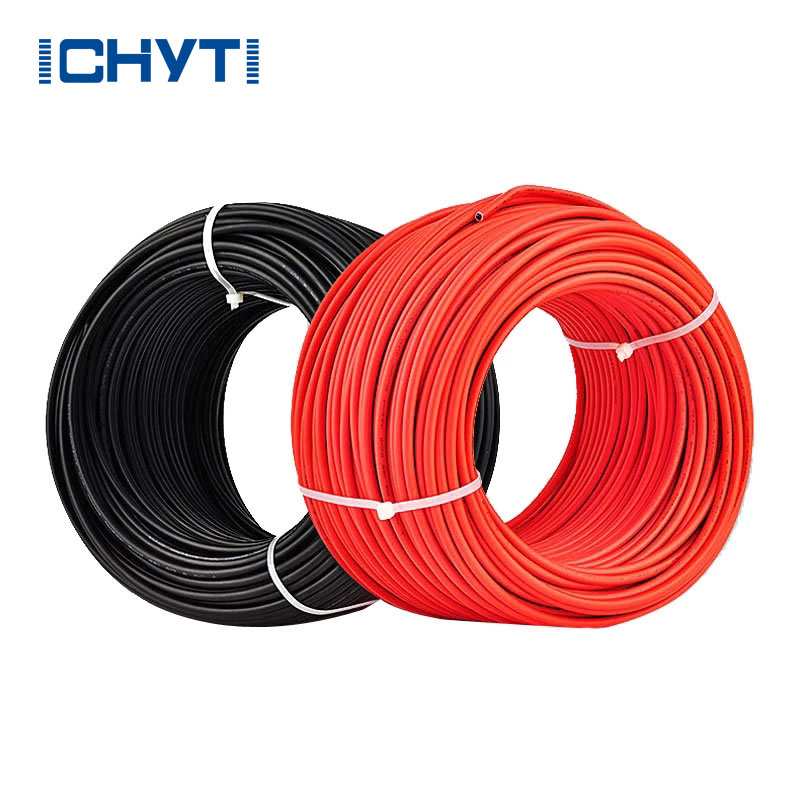

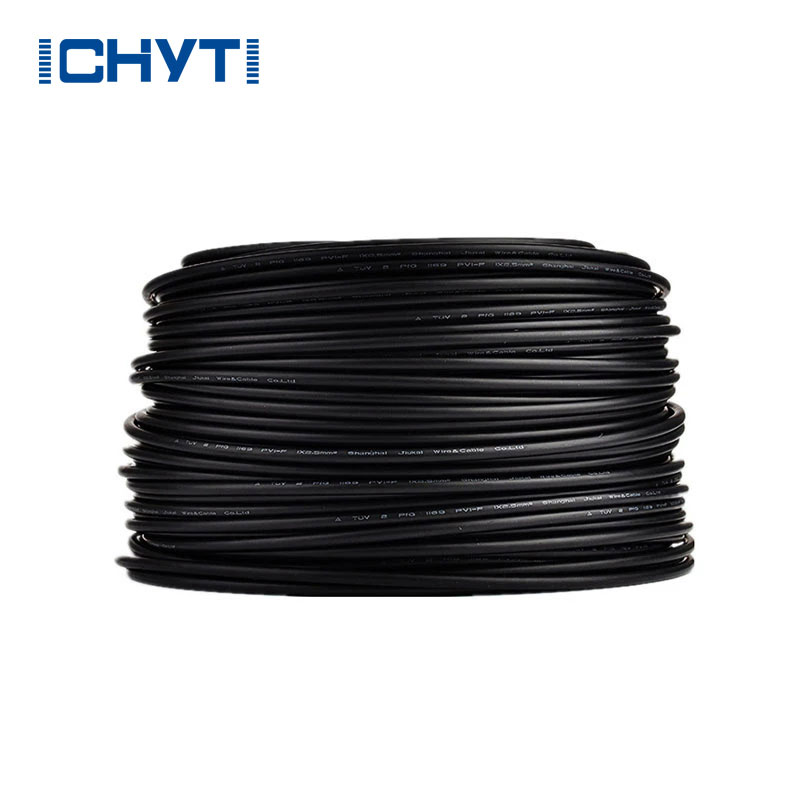

ICHYTI solar panel pv wire Details and structure

ICHYTI solar panel pv wire Classification

1、 DC cable
(1) Tandem cables between components.
(2) Parallel cables between strings and between strings and DC distribution boxes (combiner boxes).
(3) Cable from DC distribution box to inverter.
The above cables are all DC cables, which are often laid outdoors and require moisture resistance, exposure to sunlight, cold resistance, heat resistance, and UV resistance. In some special environments, they also need to be resistant to chemicals such as acid and alkali.

2、 AC cable

(1) The connecting cable from the inverter to the step-up transformer.
(2) Connection cable from step-up transformer to distribution device.
(3) The connecting cable from the power distribution device to the power grid or users.
This part of the cable is an AC load cable, which is commonly laid in indoor environments. It can be selected according to general power cable selection requirements.
