10 Awg Solar Cable

ICHYTI Company is a professional manufacturer of 10 awg solar cable. Through continuous research and development work, we have become a leading manufacturer in this field. We have multiple series of products to choose from. If you are interested in any of our products, please feel free to contact us or send us an email, and we will be happy to provide you with more detailed information.

Send Inquiry PDF DownLoad

Product Description

China Manufacturers ICHYTI Cheap Durable 10 awg solar cable is used to connect photovoltaic modules to combiner boxes, with a simple structure. It uses polyolefin insulation material, which has excellent heat resistance, cold resistance, oil resistance, and UV resistance. It can be used in harsh environmental conditions and has a certain degree of mechanical strength. This type of 10 awg solar cable can be protected through conduit, using photovoltaic module brackets as channels and fixing points for cable layout, thereby reducing the impact of environmental factors.

ICHYTI 10 awg solar cable Parameter (Specification)

Type	Cross Section	Strand design	Conductor diameter	Conductor resistance	Outer diameter Ax B	Rated voltage	Rated current
Type	mm2	No.xq)(mm)	mm	Q/km	mm	VAC/DC	A
PV-1x2.5mm2	2.5	50 x(p0.25	2.0	8.06	5.3	1000/1800	30
PV-1x4.0mm2	4.0	56 x(p0.3	2.6	4.97	6.4	1000/1800	50
PV-1x6.0mm2	6.0	84 x(p03	3.3	3.52	7.2	1000/1800	70

Wire	Class 5, tinned
Insulation Material	XLPE
Double Insulated
Halogen-free
High resistance against oils, greases, oxygen
and ozone
Microbe-resistant
UV Resistant
High Wear And Abrasion Resistance
Flam Test According To	DIN EN 50265-2-1 UL1571(VW-1)
Smallest Permissible Bending Radius	5XD
Temperature Range	-40℃~ +90℃
Colours	Black/red

ICHYTI 10 awg solar cable Feature

◉ The maximum voltage of the cable is suitable for an ambient temperature range of -40 ℃ to+90 ℃.
◉ The maximum temperature of the wire is 120 ℃ (duration 20000 hours) according to IEC/EN 60216-1 standard.
◉ The short-circuit temperature of the cable is 200 ℃ and the duration is 5 seconds.
◉ The cable meets the EN 60216-2 standard (temperature index+120 ° C) through thermal durability test.
◉ The cable meets the EN 60811-3-1 standard through high-temperature pressure test.
◉ The cable has moisture and heat resistance, meets the EN 60068-2-78 standard, and has a humidity of 85%.

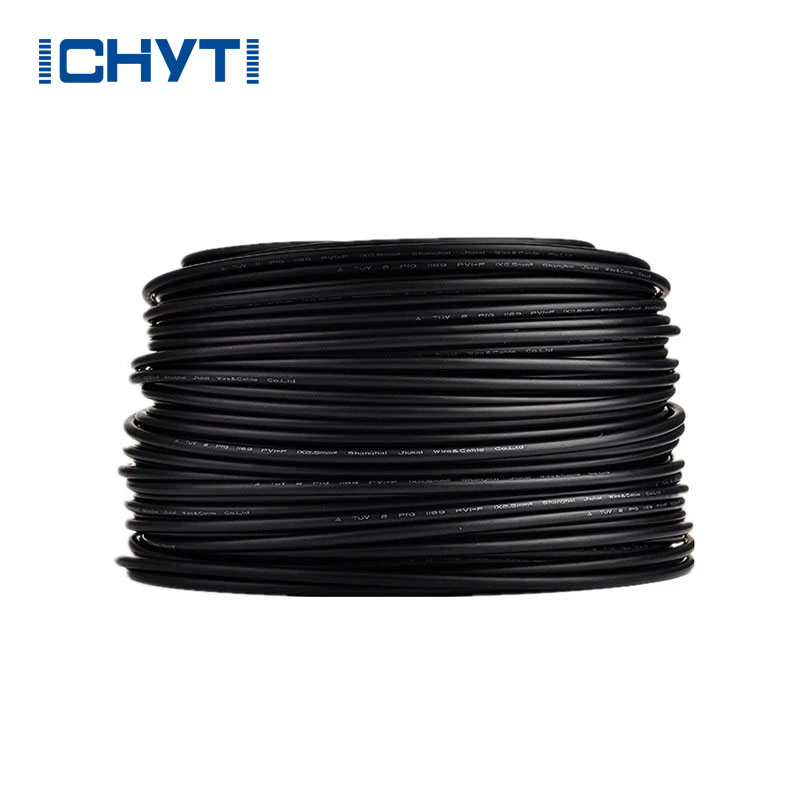

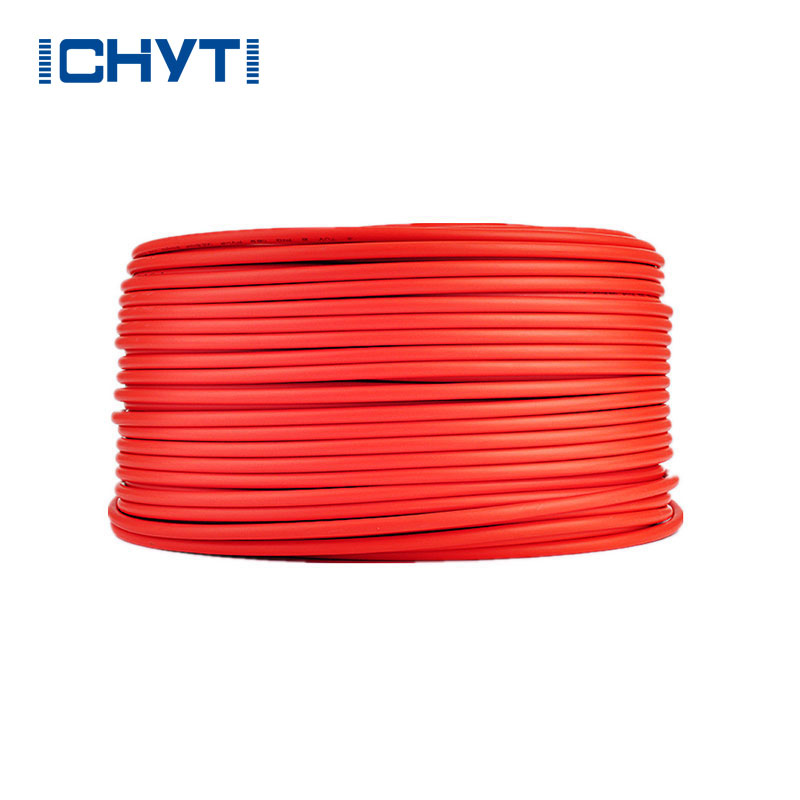

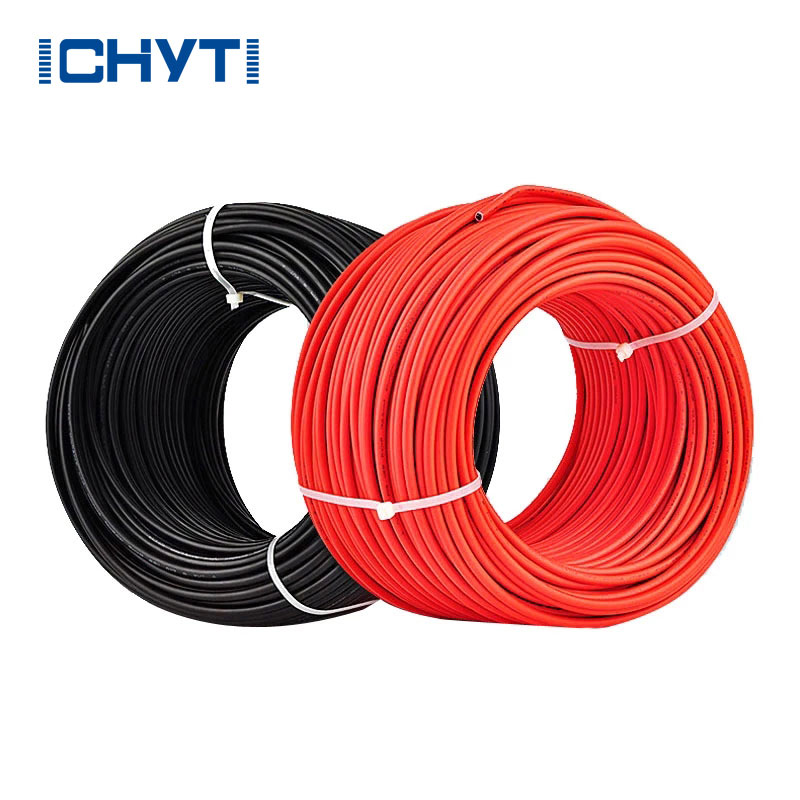

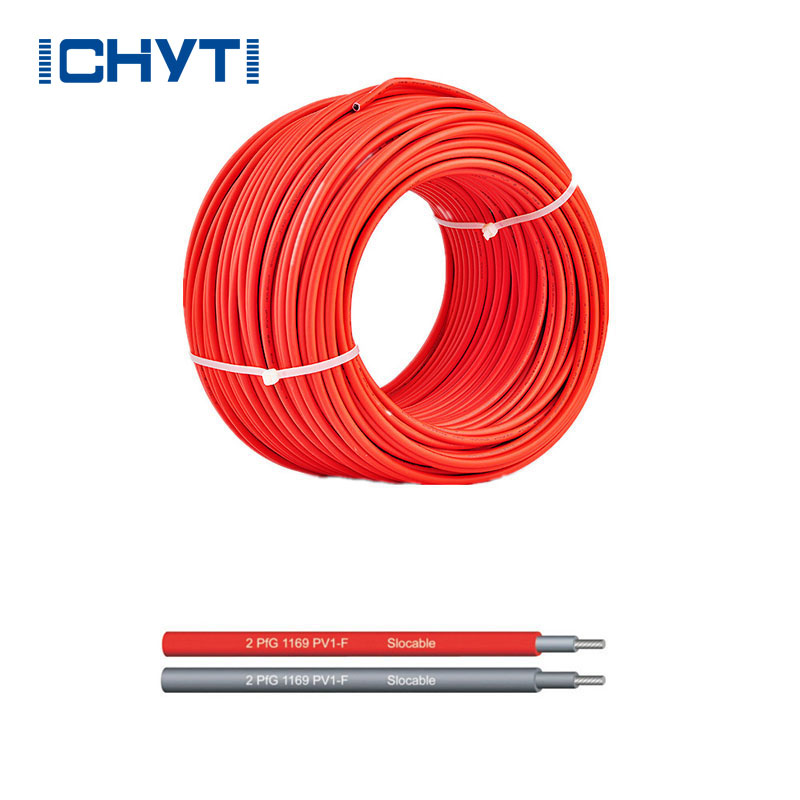

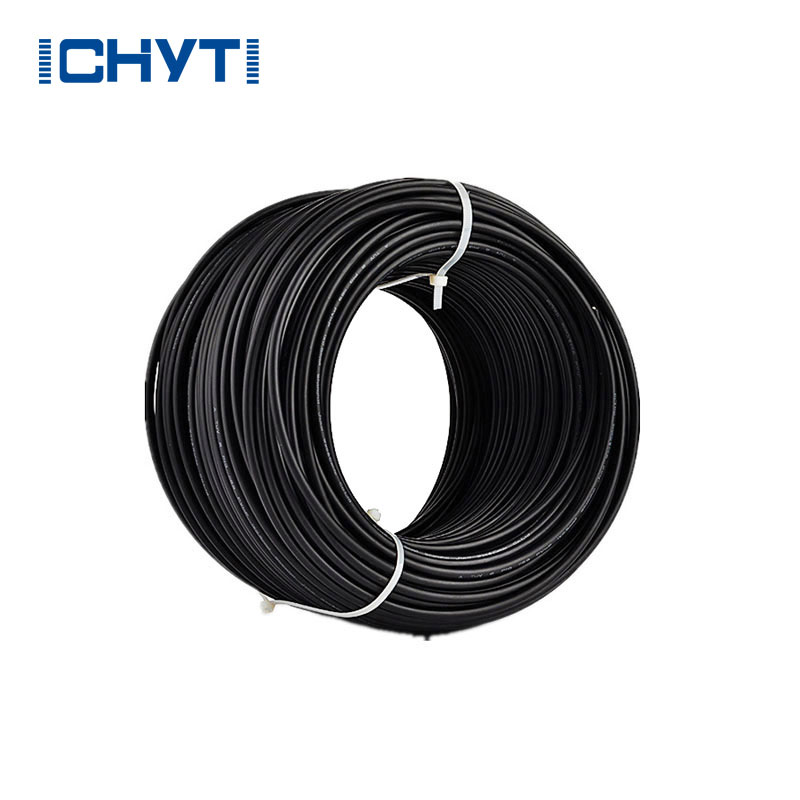

ICHYTI 10 awg solar cable Details and structure

ICHYTI 10 awg solar cable Selection regulations

1. Ensure that the cable is free from mechanical external forces, overheating, corrosion, and other hazards.
2. Try to shorten the length of the cable as much as possible while meeting safety requirements.
3. Cable laying and maintenance should be convenient.
4. Avoid cable laying in areas that are about to be excavated.
5. At any turning point in any laying method and path, the cable should meet the allowable bending radius requirements.
