Solar Array Junction Box

China Manufacturers CHYT Wholesale Customized solar array junction box is a device suitable for inverters, which can accept an input voltage of DC1000V and has a PV input channel and a single MPPT output channel. The box is made of polyvinyl chloride engineering material, which has characteristics of flame retardancy, temperature rise resistance, impact resistance, and UV resistance, and has obtained IP65 protection level certification. In other words, this solar array junction box has the functions of being waterproof, dustproof, and preventing external objects from entering.

CHYT solar array junction box Parameter (Specification)

Solar PV DC 1 in 1 out Combiner Box
Rated voltage of photovoltaic system	DC 600V&1000V	Max input amp for each string	15A
Input strings	1	Number of output strings	1
Waterproof grade ip65/ Lighting protection
Category of test	II grade protection	Nominal discharge amp	20KA
Max discharge amp	40KA	Volt protection level	3.2KV
SPD Max operation voltage	DC 600V&1000V	Poles	2P
Structure characteristic	Plug push module
System
Protection grade	Ip65	Output switch	DC circuit breaker & DC isolation switch
Solar connector	Standard	Box material	PVC
Installation method	Wall mounting type	Operating temperature	-25℃-+60℃
Installation: indoors/outdoors	Yes
Mechanical parameter
Widh*High*Depth(mm)	200*155*95 ■ 215*210*100 ■ 212*207*118

CHYT solar array junction box Feature

◉ Solar Array Junction Box has extremely high impact resistance.
◉ Excellent chemical corrosion durability.
◉ Suitable for a wide range of working temperatures.
◉ Preset bolts to maintain high quality.
◉ Widely applied in various fields through strict high and low temperature testing.
◉ Durable Solar Array Junction Box wall mounted design for easy installation and maintenance.

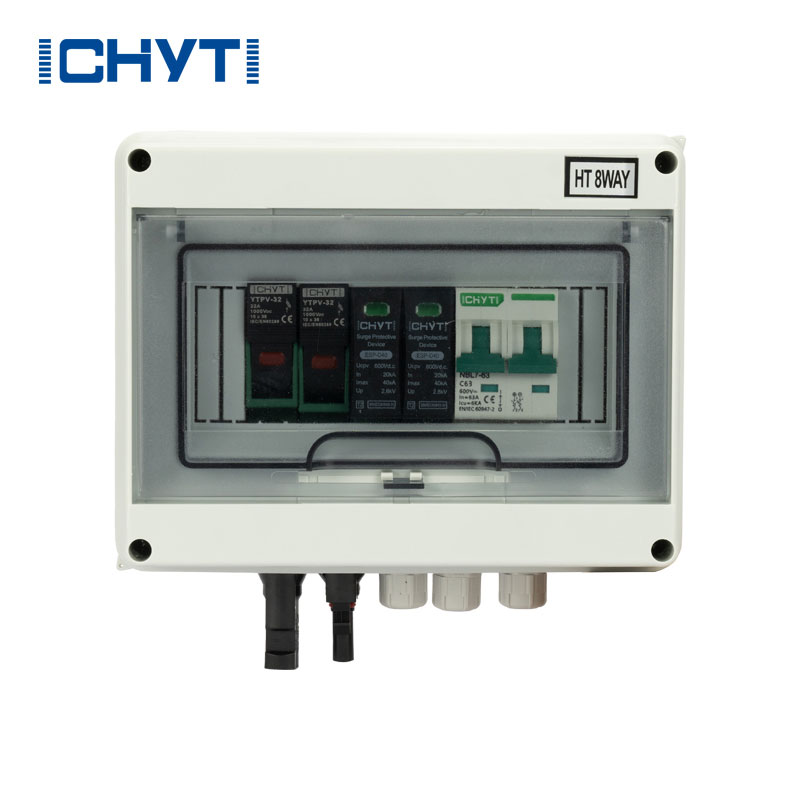

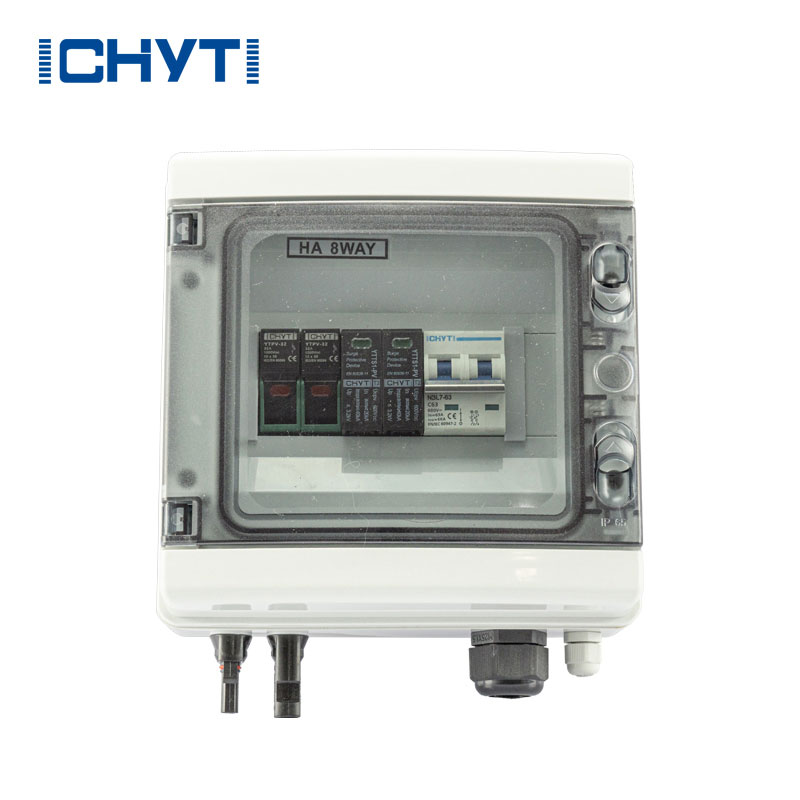

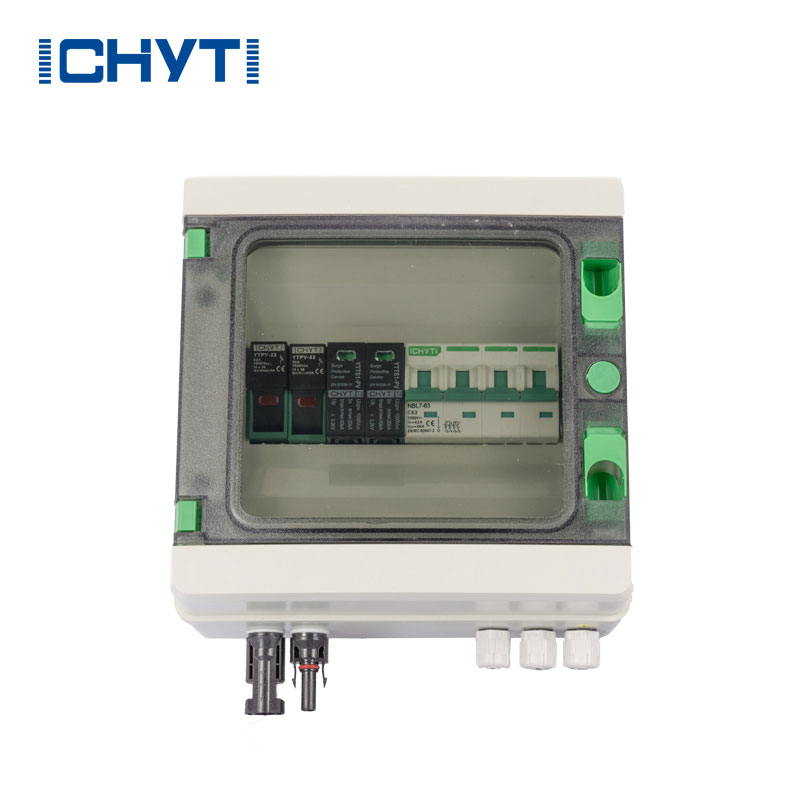

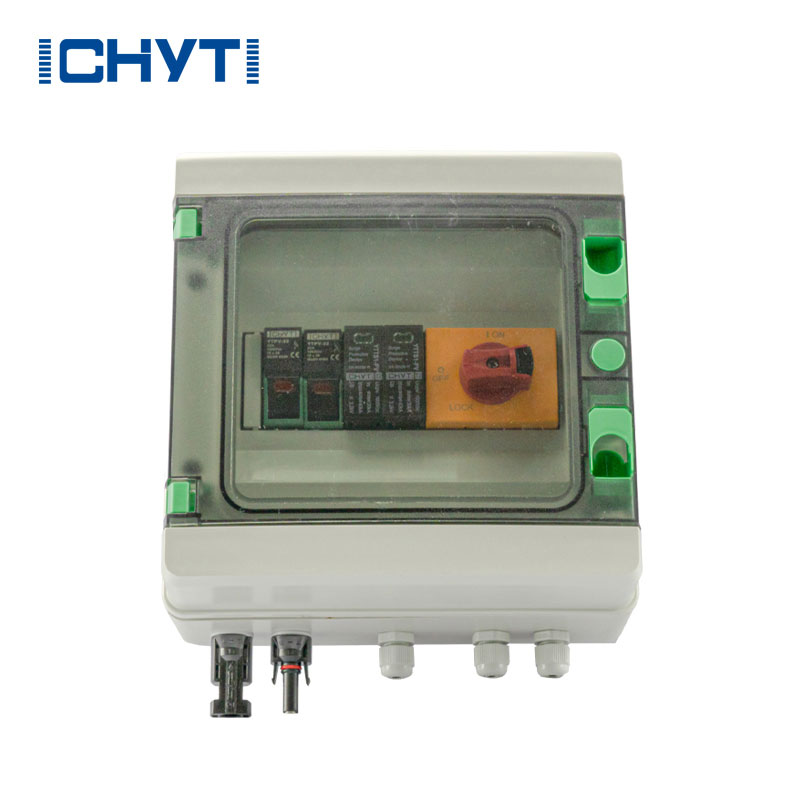

CHYT solar array junction box Details

CHYT solar array junction box Dimensions and wiring



CHYT solar array junction box FAQ

Q: Do you provide sample? Free or charge?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Are you a trading company or a manufacturer?

A: We are the Direct Manufacture Factory, and our factory has specialized in industrial electronic products since 2004.

Q: When I can receive quotation and detail information after send the enquiry?

A: Reply will be sent in 48hours.
