Solar Panel Extension Cable

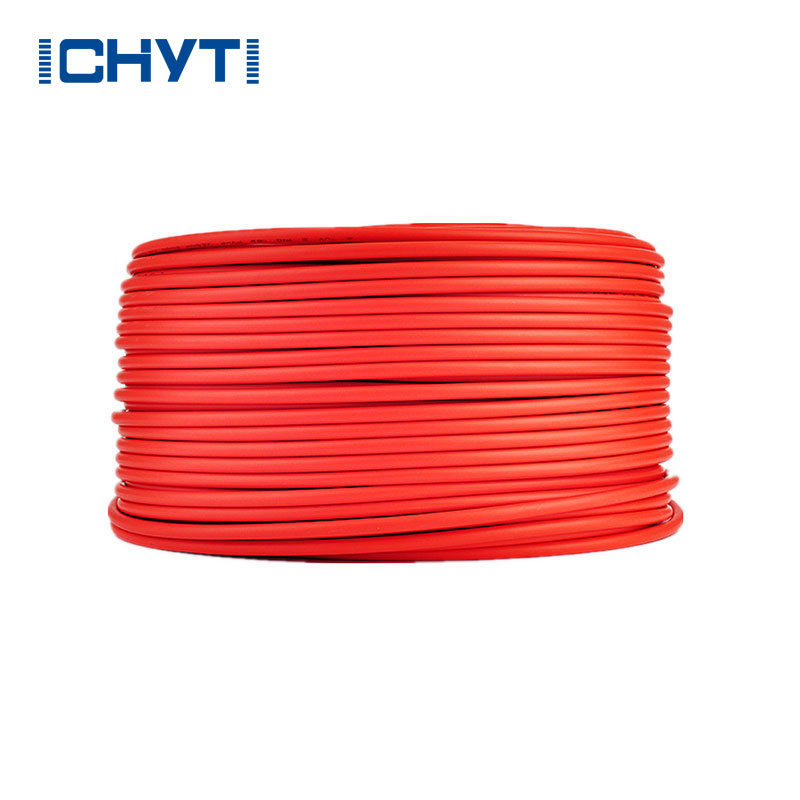

  • Solar Panel Extension CableSolar Panel Extension Cable

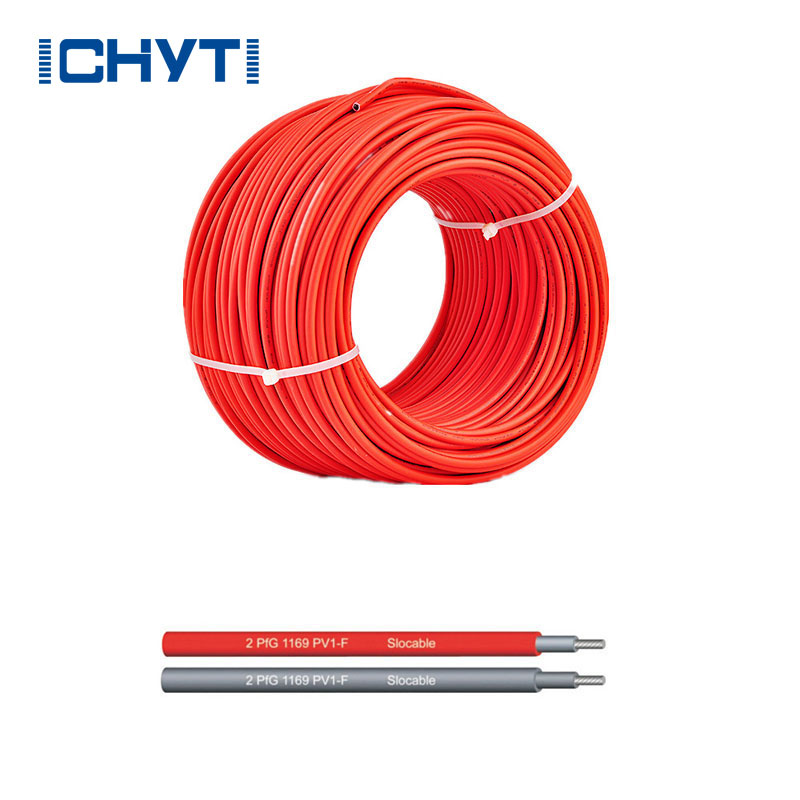

  • Solar Panel Extension CableSolar Panel Extension Cable

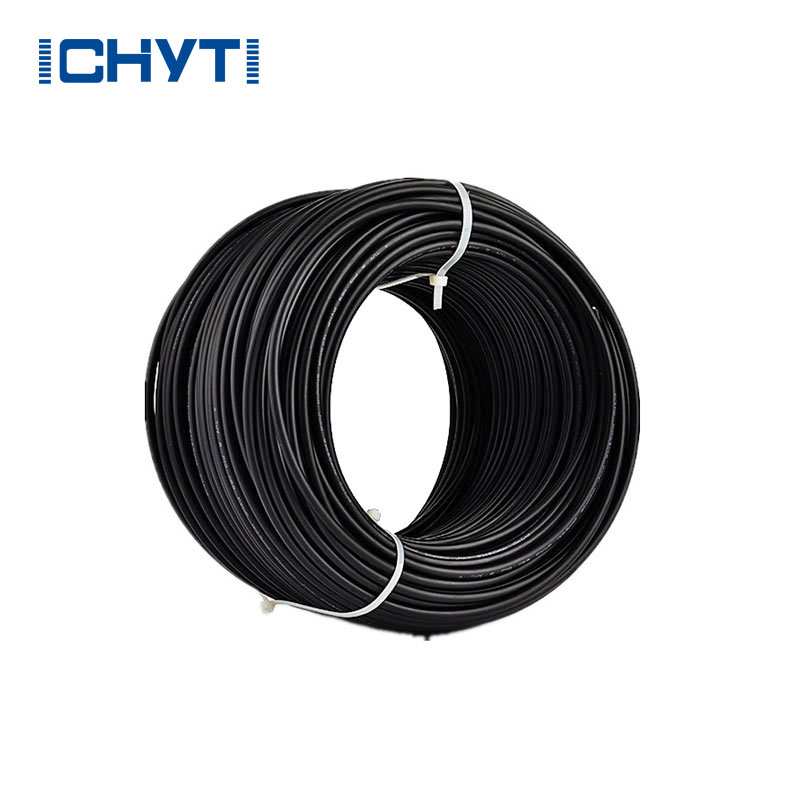

  • Solar Panel Extension CableSolar Panel Extension Cable

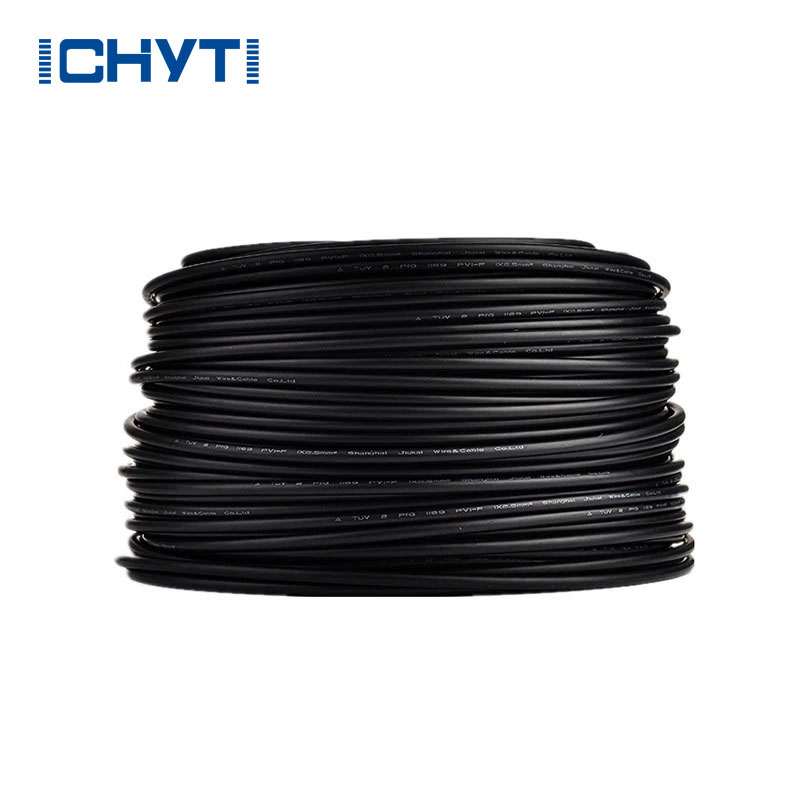

  • Solar Panel Extension CableSolar Panel Extension Cable

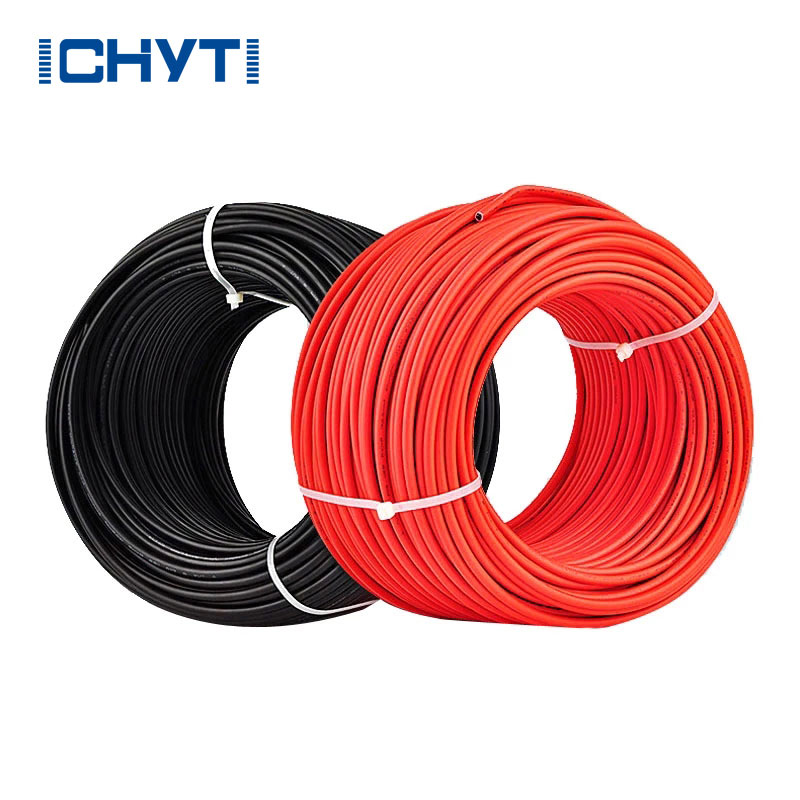

  • Solar Panel Extension CableSolar Panel Extension Cable

Solar Panel Extension Cable

ICHYTI supplier can provide you with a large number of solar panel extension cable from China, and we are proud of our professional after-sales service and reasonable prices. We look forward to working with you very much. ICHYTI have a long-term cooperative relationship with shipping companies, which enables faster and more efficient transportation of goods to ensure safe delivery to designated locations. ICHYTI are committed to providing customers with the best after-sales service and striving to meet their needs. Please let us know your specific requirements and order details, and we will be happy to assist you and arrange cooperation matters.

Send Inquiry    PDF DownLoad

Product Description

China Factory ICHYTI Buy Discount solar panel extension cable is designed specifically for connecting photovoltaic system components inside and outside buildings and equipment, with high mechanical requirements and the ability to cope with extreme weather conditions.

ICHYTI solar panel extension cable Parameter (Specification)

Type

Cross Section

Strand design

Conductor diameter

Conductor resistance

Outer diameter

Ax B

Rated voltage

Rated current

mm2

No.x(p(mm)

mm

Q/km

mm

VAC/DC

A

PV-1x2.5mm2

2.5

50 x(p0.25

2.0

8.06

5.3

1000/1800

30

PV-1x4.0mm2

4.0

56 x(p0.3

2.6

4.97

6.4

1000/1800

50

PV-1x6.0mm2

6.0

84 x(p0.3

3.3

3.52

7.2

1000/1800

70


Wire

Class 5, tinned

Insulation Material

XLPE

Double Insulated



Halogen-free



High resistance against oils, greases, oxygen



and ozone



Microbe-resistant



UV Resistant



High Wear And Abrasion Resistance



Flam Test According To

DIN EN 50265-2-1 UL1571(VW-1)

Smallest Permissible Bending Radius

5XD

Temperature Range

-40℃~ +90℃

Colours

Black/red


ICHYTI solar panel extension cable Feature

 The rated voltage of the cable is 0.6/1 kV AC (U0/U); Direct current 0.9/1.5 kV (U0/U).
 The maximum DC voltage allowed for this cable is 1.8 kV (conductor/conductor, non earthing system, no load circuit).
 The insulation resistance of the cable is 1000 megaohms per kilometer.
 After spark testing, the withstand voltage of the cable is 6000 volts AC (8400 volts DC).
 The cable can withstand an AC voltage of 6500 volts continuously for 5 minutes.

ICHYTI solar panel extension cable Details and structure

Solar Panel Extension Cable




ICHYTI solar panel extension cable FAQ

Q: May know the standard of package?
A: In addition to the standard cartons, we also cater to the specific requests of our customers.


Q: How can I place order?

A: If you need to inquire about the specifics of your order, please feel free to reach out to us via email..


Q: What material is PV cable?

A: PV wire is a singular conductor wire utilized in connecting PV panels in solar power generation systems. There are two kinds of conductors utilized in PV wires, which are aluminum and copper.
