Solar Pv Connectors
Of course, ICHYTI Factory also attach great importance to providing comprehensive after-sales service. If you are interested in our solar pv connectors service, please contact us immediately and we will reply to you promptly! ICHYTI are professional solar system solution experts with over 5GW of project experience in the solar energy field. We provide free sample services and export our products to over 50 overseas countries. At the same time, we also provide OEM services.
Send Inquiry PDF DownLoad
Product Description
ICHYTI solar pv connectors Parameter (Specification)
|
Connector system |
Φ4mm |
|
Rated voltage |
1000V DC(IEC)1 |
|
Rated current |
17A(1.5mm2) |
|
22A(2.5mm2/4AWG) |
|
|
30A(4mm2z6mm2z12AWGJ0AWG) |
|
|
Test voltage |
6kV(50HZ,1min) |
|
Ambient temperature range |
-40℃- + 90℃(IEC) -40℃- + 75℃(UL) |
|
Upper limiting temperature |
+ 105℃(IEC) |
|
Contact material |
Copper, Tin-plated |
|
Insulation material |
PC/PPO |
|
Degree of protection, mated |
IP67 |
|
unmated |
IP2X |
|
Contact resistance of plug connectors |
0.5mQ |
|
Flame class |
UL94-VO |
|
Safety class |
II |
|
Locking system |
Snap-in |
|
Salt mist spray test, degree of severity 5 |
IEC60068-2-52 |
ICHYTI solar pv connectors Feature
◉ We have over 10 years of experience in the production of solar connectors.◉ Adopting a keyed shell design, providing excellent security coordination.
◉ We provide free samples and various specifications of solar panel connector types.
◉ Our connectors have waterproof function and are suitable for waterproof plug requirements.

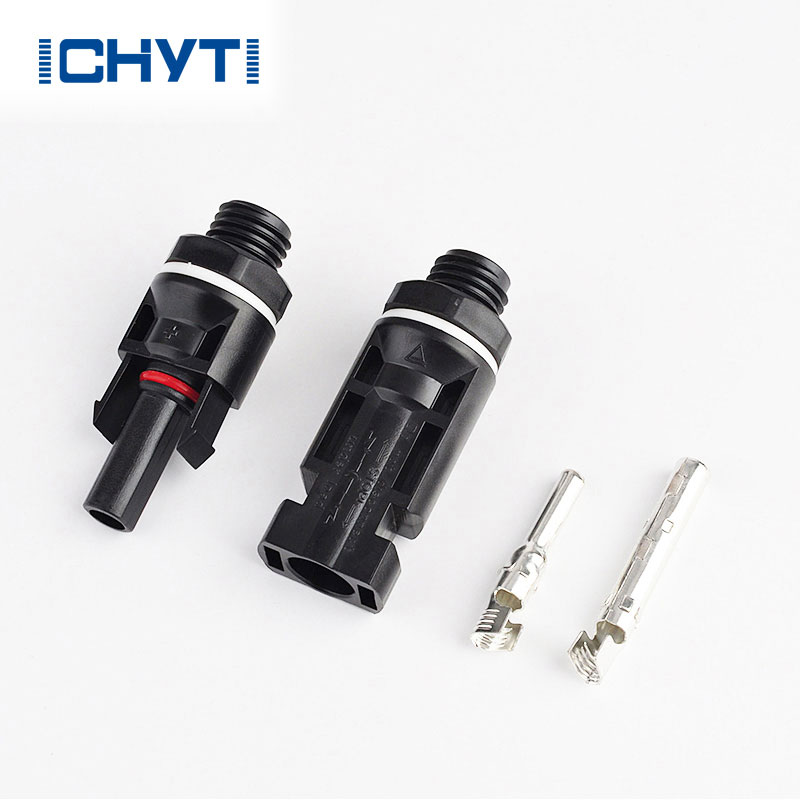

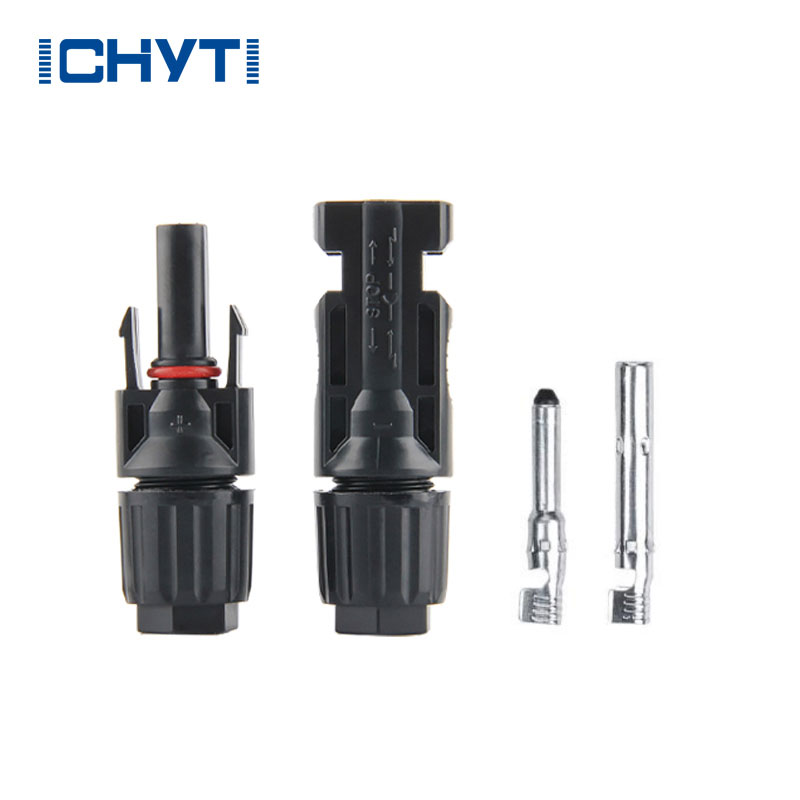

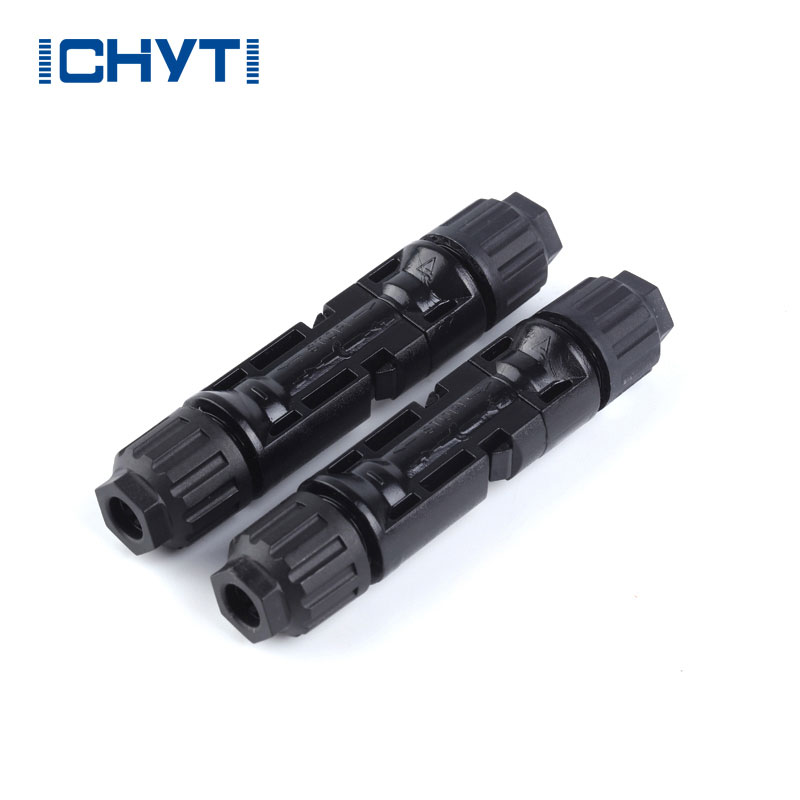

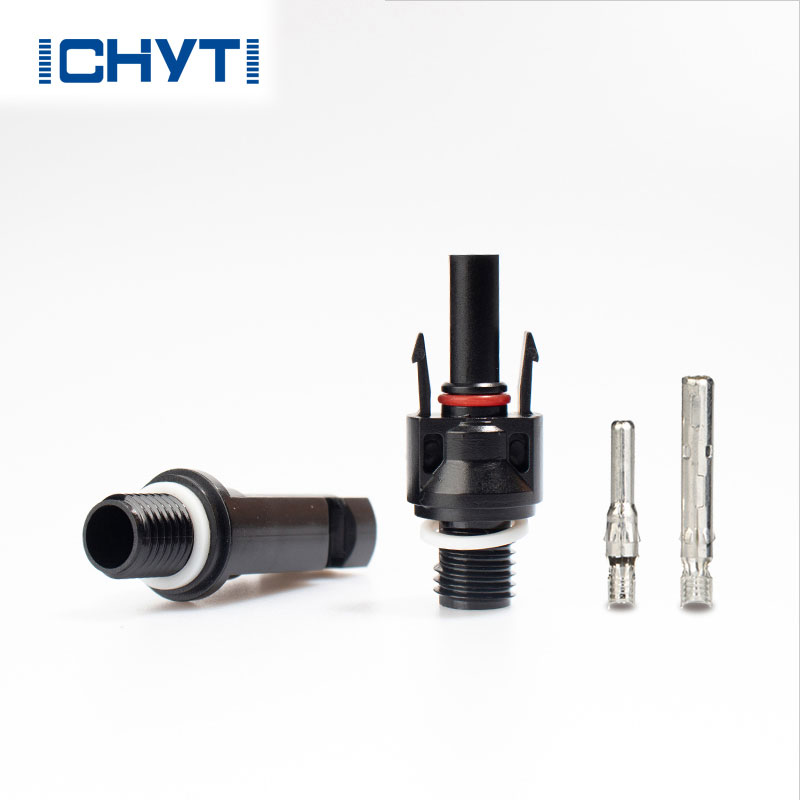

ICHYTI solar pv connectors Details
ICHYTI solar pv connectors Dimensions and wiring
ICHYTI solar pv connectors FAQ
Q: Can you help me to select suitable products?A: If you could provide us with your inquiry and requirements, our team of professionals will assist you in selecting the appropriate model.
Q: Is there any discount?
A: We offer better prices for larger quantities, and if you're interested in a special discount, please feel free to contact us.
Q: How fast can I get the quotation?
A: We will provide you with the full quotation within the next 24 hours.
