Solar Panel Dc Fuse Holder

We provide high-quality solar panel dc fuse holder, which can meet various application needs. If you need it, we provide online and timely services to provide you with relevant information about solar panel dc fuse holder. In addition to the product list listed below, we can also customize solar panel dc fuse holder that meet your unique needs according to your specific needs. ICHYTI culture is quality first. We use high-quality raw materials and components to produce all products, and manufacture them according to specified specifications.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Advanced solar panel dc fuse holder Made in China is made of pure silver material, welded with low tin solder, and then encapsulated in high-strength ceramics. The fuse tube is filled with high-purity quartz sand and used as arc medium after chemical treatment. The fuse body and contact terminals are connected by spot welding.

ICHYTI solar panel dc fuse holder Parameter (Specification)

Product Model	YTPV-32
Pole	1P
Colour	White/Green
Rated Current (A)	1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 32A
Rated Voltage(V DC)	1000
Installation	Rail installation
Fuse link size(mm2)	10*38

ICHYTI solar panel dc fuse holder Feature

◉ Adjustable wiring board, reliable and fixed wiring.
◉ The rated current is 32 amperes and the rated voltage is 1000 volts.
◉ Has high breaking capacity and can withstand open circuits under high voltage.
◉ Easy to install and replace.

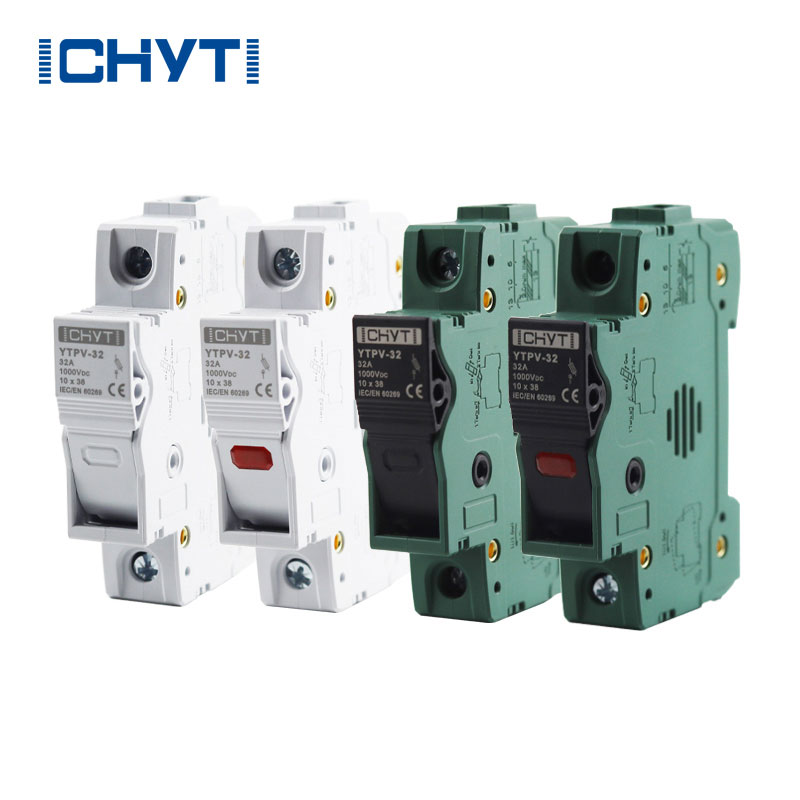

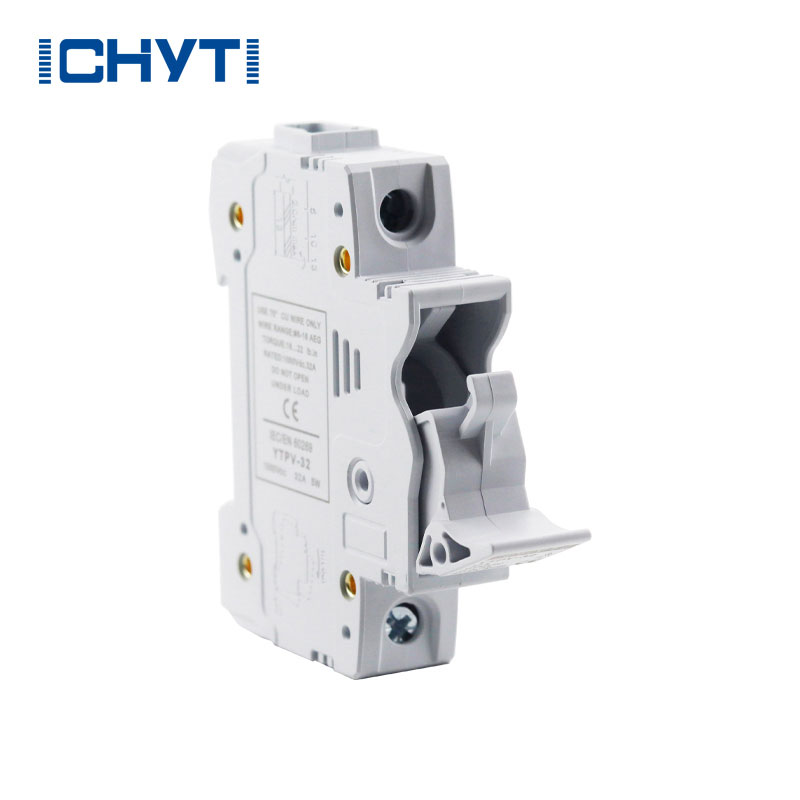

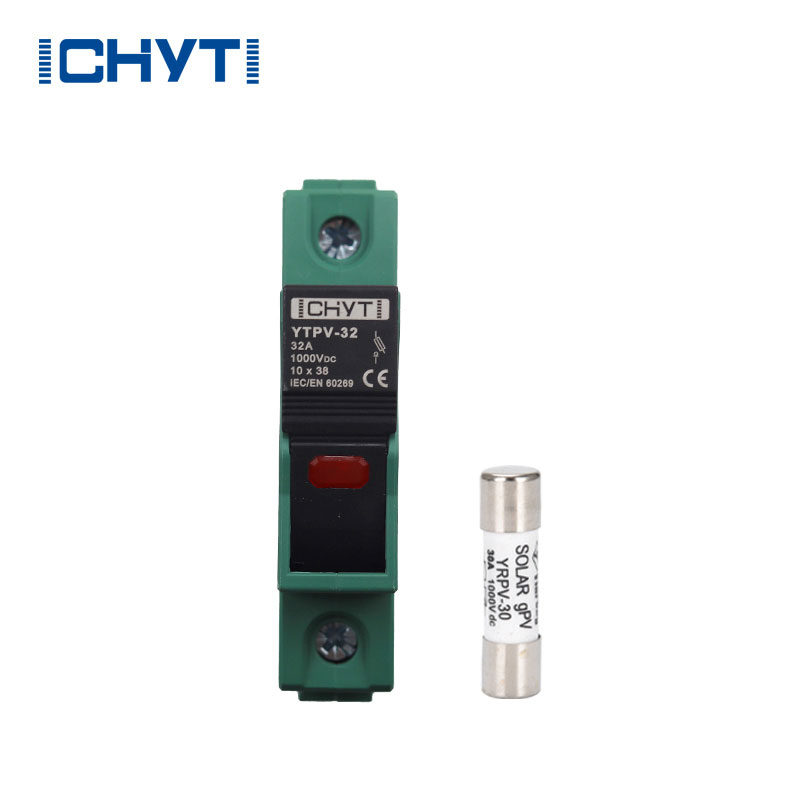

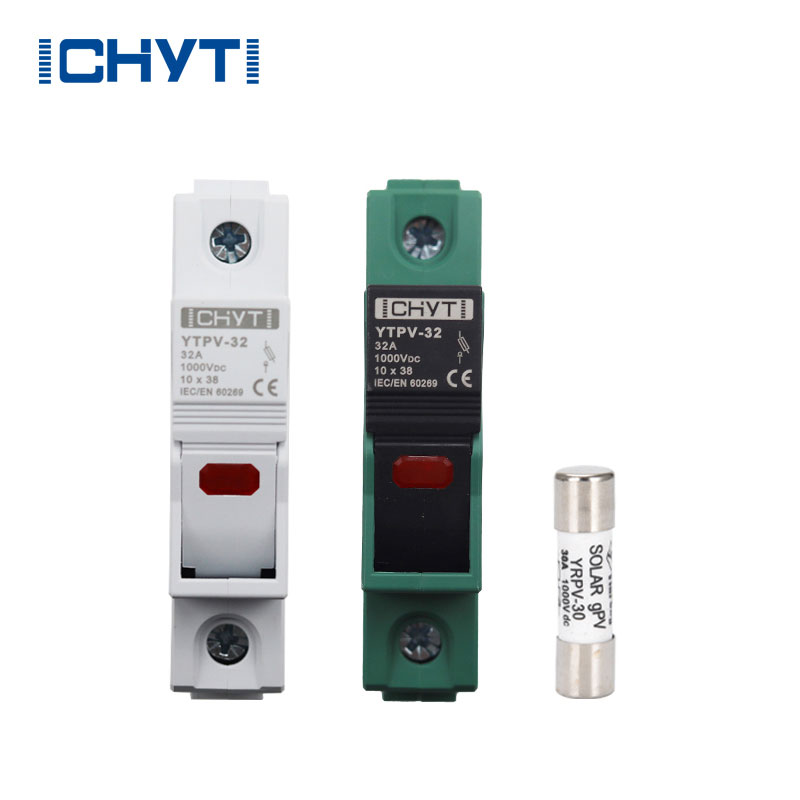

ICHYTI solar panel dc fuse holder Details

ICHYTI solar panel dc fuse holder Dimensions and wiring

ICHYTI solar panel dc fuse holder Application specifications

1. The rated voltage must be greater than or equal to the maximum voltage corrected by the manufacturer's instructions or the expected minimum temperature shown in the table above.
2. The rated current must be greater than or equal to the rated current of the selected fuse.
3. The protection level must be suitable for the installation location and cannot be lower than IP 2X.
4. When selecting and installing overcurrent protection fuses, it is necessary to consider their rated current and installation location requirements.
