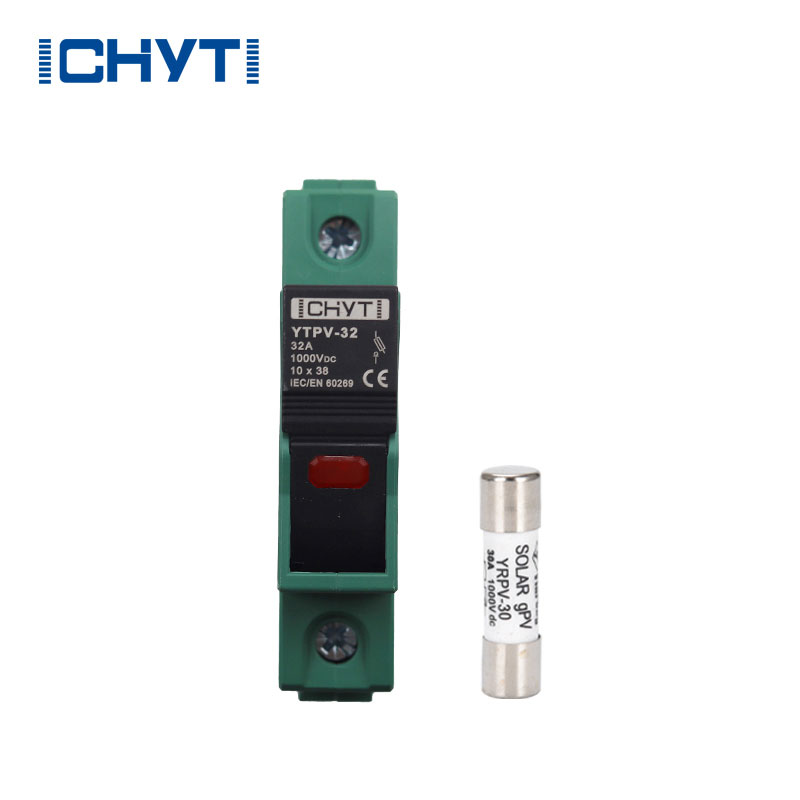

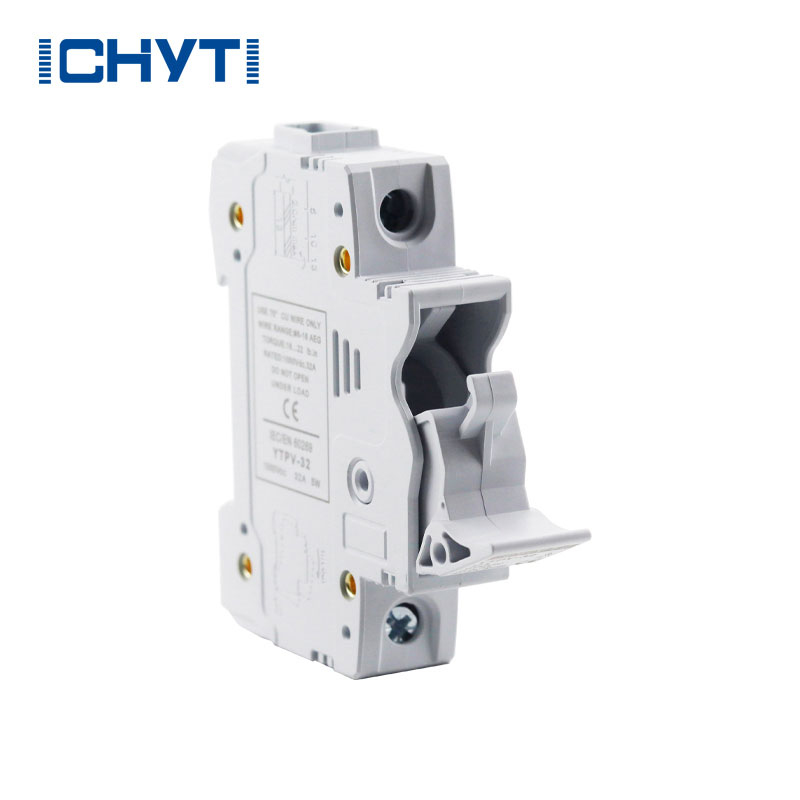

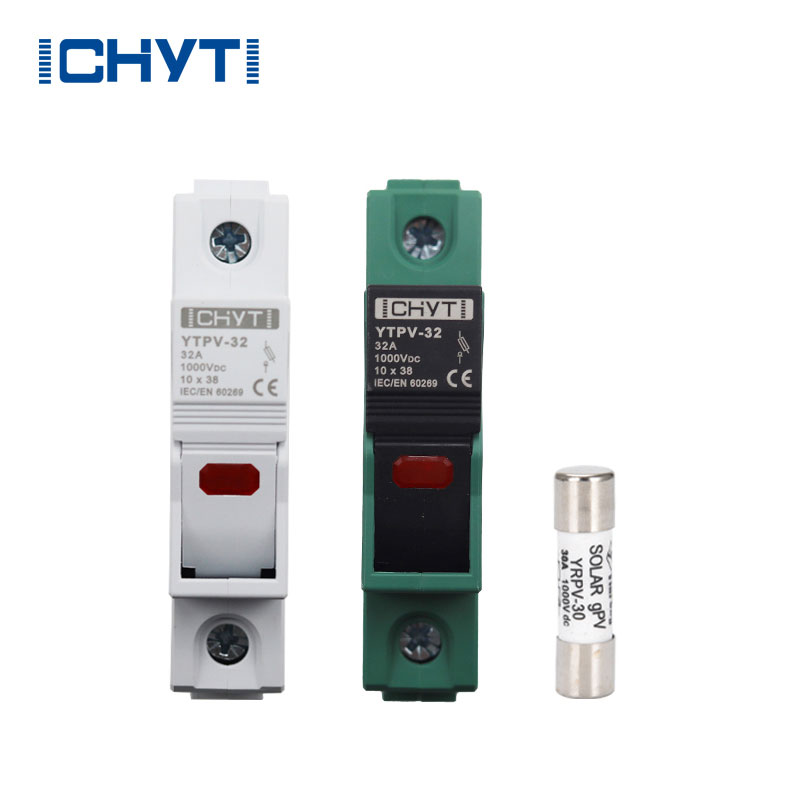

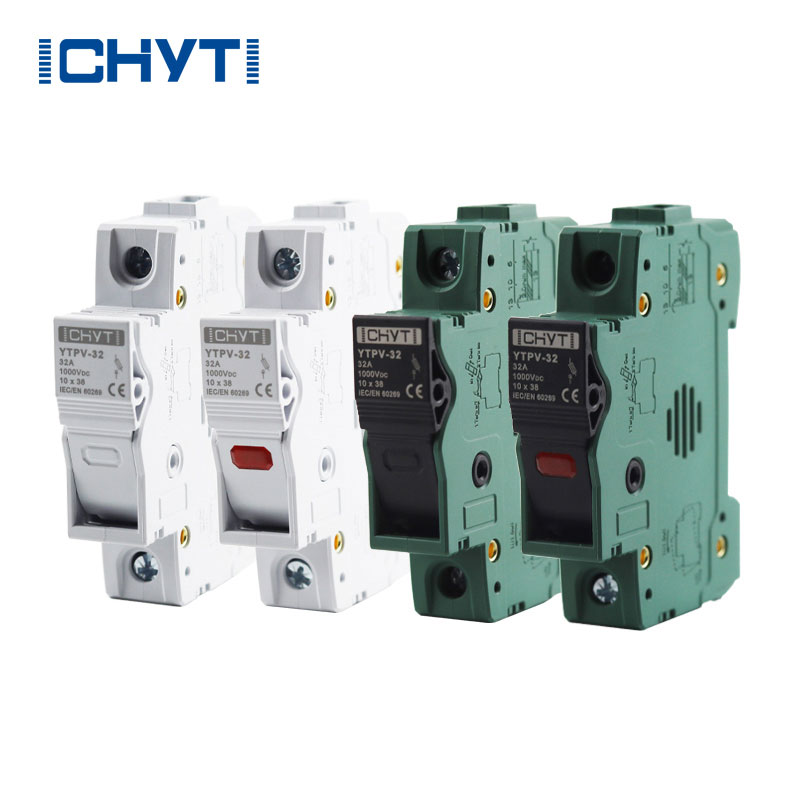

1000v Dc Fuse Holder

China Factory ICHYTI Cheap 1000v dc fuse holder Free Sample is specifically designed for photovoltaic (PV) systems and are mainly used to protect solar panels. Its function is to effectively disconnect the faulty photocell pack while not affecting the operation of other normally functioning photocell packs. Due to the higher open circuit voltage of photovoltaic panels at low temperatures, when considering the maximum voltage of photovoltaic arrays, photovoltaic sub arrays, photovoltaic strings, and photovoltaic panels, corrections should be made according to the expected minimum temperature at the installation site and the instructions of the photovoltaic panel manufacturer. If the photovoltaic panel manufacturer does not provide a correction method, the maximum voltage of the photovoltaic array should be determined according to the standard requirements.

ICHYTI 1000v dc fuse holder Parameter (Specification)

ICHYTI 1000v dc fuse holder Feature

◉ 1000V DC capacity: This photovoltaic fuse is suitable for typical photovoltaic panel systems, can be used under 1000V DC operating conditions, and has a fast fuse response time of less than 1 millisecond.
◉ 10 × 38mm international standard specification: This photovoltaic fuse is suitable for various current ranges, with standard metal ferrules, bolts, and multi-purpose circuit board installation options available, meeting the requirements of 10 × 38mm international standard specification.

ICHYTI 1000v dc fuse holder Details



ICHYTI 1000v dc fuse holder Dimensions and wiring



ICHYTI 1000v dc fuse holder Application specifications

1. The rated voltage is greater than or equal to the maximum voltage corrected based on the expected minimum temperature at the installation location according to the instructions of the photovoltaic panel manufacturer or the above table;

2. DC fuse link;

3. The rated breaking capacity shall not be lower than the fault current from the photovoltaic array, and other connected power sources such as batteries, generators, and the power grid, if any;

4. A model that meets the IEC60269-6 standard and is suitable for PV overcurrent and short-circuit protection.
