Solar Panel Combiner Box
  • Solar Panel Combiner BoxSolar Panel Combiner Box
  • Solar Panel Combiner BoxSolar Panel Combiner Box
  • Solar Panel Combiner BoxSolar Panel Combiner Box
  • Solar Panel Combiner BoxSolar Panel Combiner Box

Solar Panel Combiner Box

ICHYTI As a professional manufacturer, we are committed to delivering high-quality solar panel combiner box to our customers. Additionally, our top priority is providing excellent after-sales service and ensuring timely delivery of your order. We strive to exceed your expectations in every way possible. ICHYTI is developing new products and improving the existing products according to the latest market requirement and international standard with new science and technology adopted all the time.

Send Inquiry    PDF DownLoad

Product Description

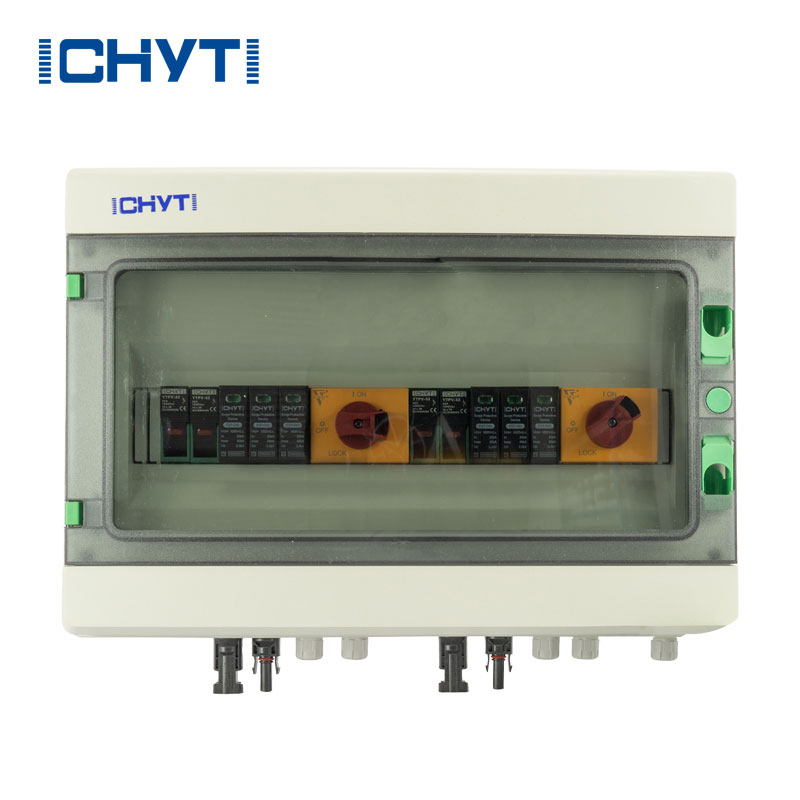

China Factory ICHYTI Low Price solar panel combiner box is suitable for photovoltaic systems with a DC voltage of 600V and a current below 20A. Its function is to connect photovoltaic modules and form a complete photovoltaic and wind power generation system through controllers and inverters, achieving application in off grid energy storage systems and maintenance functions. solar panel combiner box can be used in conjunction with DC isolation switches, fuses, surge protectors, MC4 connectors, M25 waterproof connectors, and photovoltaic cable connectors.



ICHYTI solar panel combiner box Parameter (Specification)

Solar PV DC1 in 1 out Combiner Box

Rated voltage of photovoltaic system

DC 600V&1000V

Max input amp for each string

15A

Input strings

1

Number of output strings

1

Waterproof grade ip65/ Lighting protection

Category of test

II grade protection

Nominal discharge amp

20KA

Max discharge amp

40KA

Volt protection level

3.2KV

SPD Max operation voltage

DC 600V&1000V

Poles

2P

Structure characteristic

Plug push module





System

Protection grade

Ip65

Output switch

DC circuit breaker & DC isolation switch

Solar connector

Standard

Box material

PVC

Installation method

Wall mounting type

Operating temperature

-25℃-+60℃

Installation: indoors/outdoors

Yes





Mechanical parameter

Widh*High*Depth(mm)

200*155*95 ■ 215*210*100 ■ 212*207*118



ICHYTI solar panel combiner box Feature

 It has fire resistance performance

 Lightweight, easy to handle and install

 High surface smoothness, using acid washing and phosphating processes to form 80-120μm on the surface Protective layer

 It has IP65 level waterproof, dustproof, anti-corrosion, and UV resistant performance

 Easy installation and convenient system wiring

 Equipped with dedicated high-voltage lightning protection devices for photovoltaic modules to ensure safety.



ICHYTI solar panel combiner box Details

Solar Panel Combiner Box



ICHYTI solar panel combiner box Dimensions and wiring

Solar Panel Combiner Box



ICHYTI solar panel combiner box FAQ

Q: Is a solar combiner box necessary?

A: In terms of battery systems, a combiner array is typically unnecessary for systems with just one or two panels. Similarly, systems with three to four panels may not require a combiner. However, for systems with more than four panels or strings of panels, it is strongly recommended to incorporate a combiner box.


Q: Is a combiner box the same as a junction box?

A: CHYT solar combiner box is essentially a junction box that serves the purpose of tightly connecting and housing multiple wires and cables through various entry ports. Its primary function is to combine several strings of photovoltaic (PV) modules and integrate them into a single standard bus.


Q: What is DC MCB?

A: CHYT NBL7-63 Series DC MCB was designed for direct current (DC) control circuit applications, used for over-current protection within appliances or electrical equipment. It provide optimization products for DC system applications such as PV.




Hot Tags: Solar Panel Combiner Box, China, Manufacturers, Suppliers, Price, Factory
