2in 1out 1000v solar combiner box

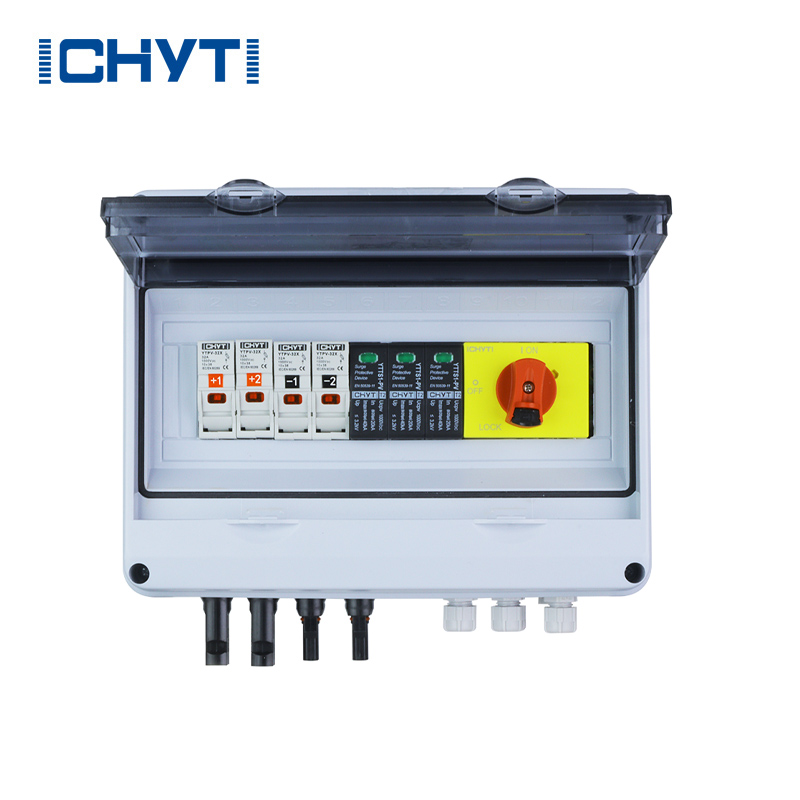

China Factory ICHYTI(公司品牌) provide customized installation of solar equipment, including IP65 grade 2in 1out 1000v solar combiner box. The configuration inside the combiner box includes HT box 12ways*1pcs，dc fuse 1000v 15a*4pcs，dc spd 3p 1000v 20-40ka*1pcs，dc isolator Switch 4p 1000v 32a*1pcs，MC4 solar connector*2pairs.

Solar Pv Combiner Box Parameter (Specification)

Solar PV DC 2 in 1 out Combiner Box
Rated voltage of photovoltaic system	DC 600V&1000V	Max input amp for each string	15A
Input strings	2	Number of output strings	1
Waterproof grade ip65/ Lighting protection
Category of test	II grade protection	Nominal discharge amp	20KA
Max discharge amp	40KA	Volt protection level	3.5KV
SPD Max operation voltage	DC 600V&1000V	Poles	2P/3P
Structure characteristic	Plug push module
System
Protection grade	Ip65	Output switch	DC circuit breaker & DC isolation switch
Solar connector	Standard	Box material	PVC
Installation method	Wall mounting type	Operating temperature	-25℃-+60℃
Installation: indoors/outdoors	Yes
Mechanical parameter
Widh*High*Depth(mm)	200*155*95 ■ 255*200*115

ICHYTI solar pv combiner box Feature

◉ Ingress Protection Rating IP65
◉ Streamline the wiring connections between solar panels and inverters for simplified physical cabling.
◉ Boasting excellent ruggedness, the HT series combiner box is engineered to perform reliably in severe environments.
◉ Every product within the photovoltaic system range is characterized by its safety, compactness, attractive design and broad applicability.
◉ High-voltage fuses are incorporated to prevent reverse current from the PV input array.
◉ Compatible with both grid-tied and off-grid photovoltaic inverters.

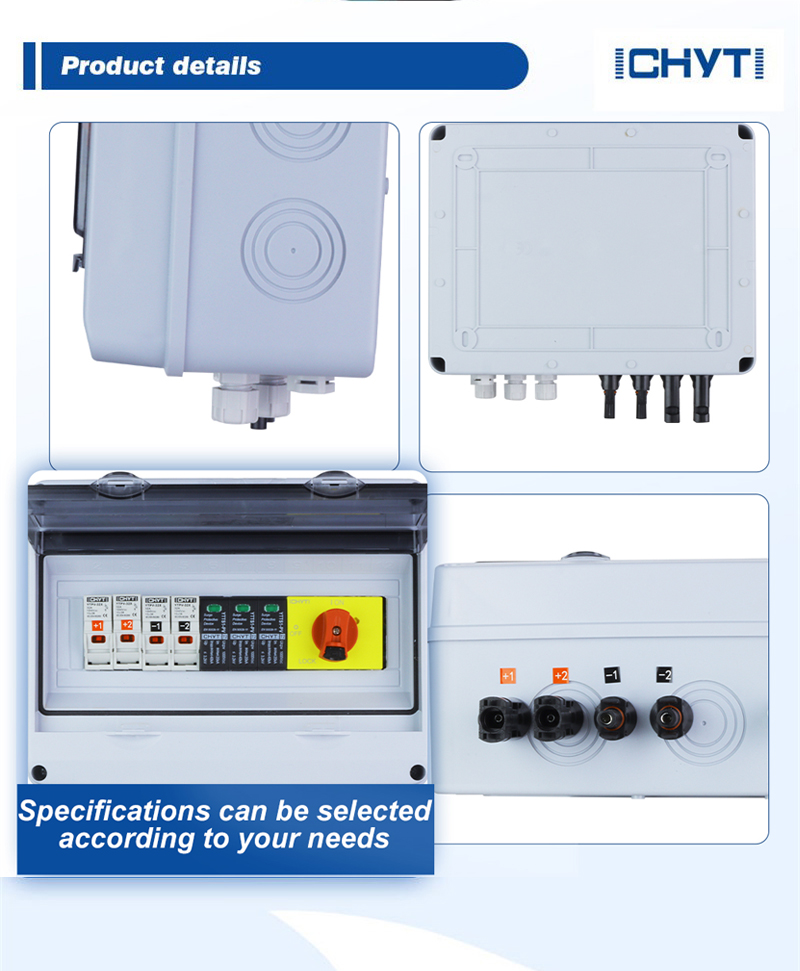

ICHYTI solar pv combiner box Details

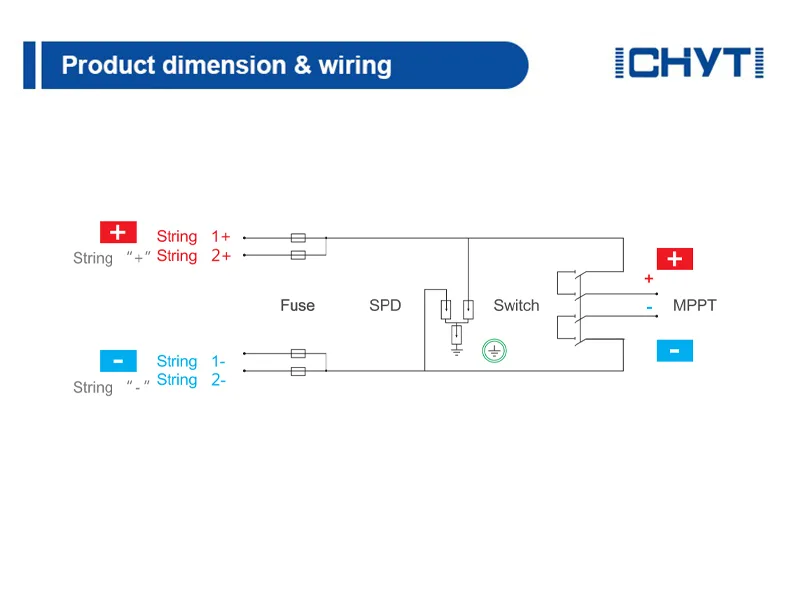

ICHYTI solar pv combiner box Dimensions and wiring



ICHYTI solar pv combiner box FAQ

Q: Will you will attend the fair to show your products?
A: There are plans to go in the future.

Q: Which certificate do you have for your equipment?

A: We have ISO 9001, CE.

Q: If OEM is acceptable?

A: Yes, Our company is available for Retail & Wholesale& OEM& ODM
