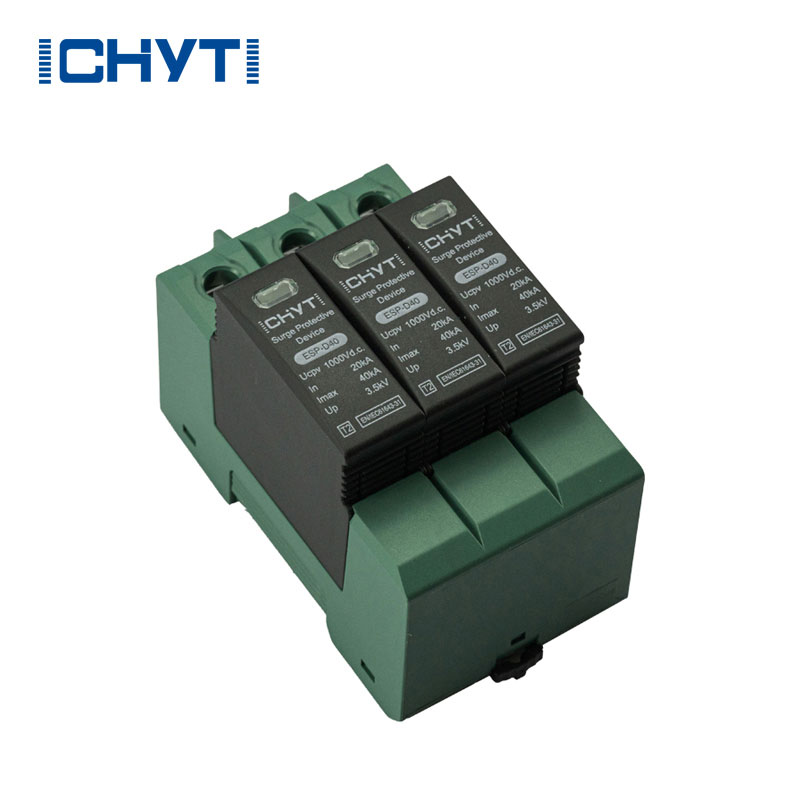

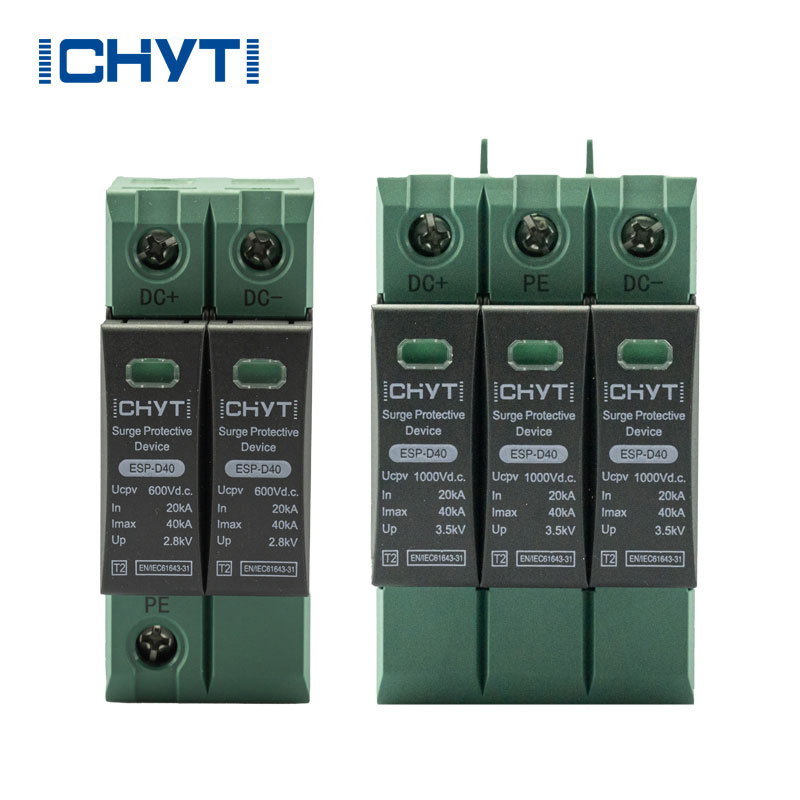

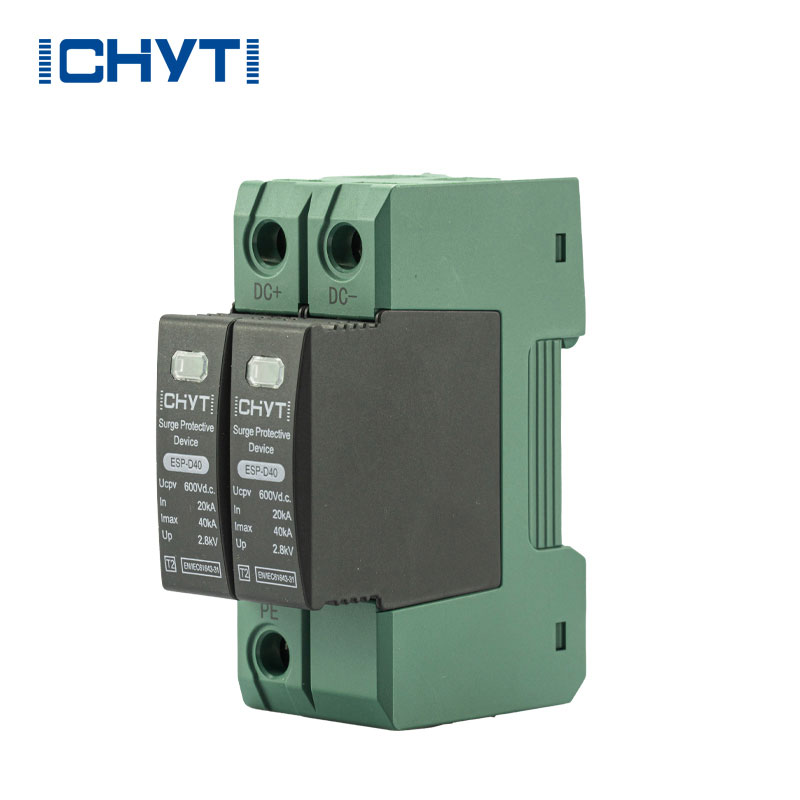

Solar Dc Surge Protection Device
  • Solar Dc Surge Protection DeviceSolar Dc Surge Protection Device
  • Solar Dc Surge Protection DeviceSolar Dc Surge Protection Device
  • Solar Dc Surge Protection DeviceSolar Dc Surge Protection Device
  • Solar Dc Surge Protection DeviceSolar Dc Surge Protection Device

Solar Dc Surge Protection Device

ICHYTI was founded in 2004, covering an area of more than 10000 square meters, with more than 120 employees. ICHYTI is one of Low Price solar dc surge protection device manufacturing enterprises of China industrial electrical products and one of the earlier domestic production enterprises, with nearly 18 years of experience in electrical equipment production and development.

Send Inquiry    PDF DownLoad

Product Description

China Factory ICHYTI solar dc surge protection device Quotation is a DC surge protection device designed specifically for photovoltaic power generation systems or other DC power supply systems, aimed at providing lightning protection for the system and effectively avoiding the impact of lightning overvoltage. solar dc surge protection device is equipped with built-in temperature control circuit technology to ensure high system safety.

There is an indicator window, with green indicating normal operation and red indicating malfunction. It needs to be replaced promptly and clearly visible. In addition, users can choose to configure remote communication interfaces to achieve remote monitoring, high traffic, high security, and stability.



ICHYTI solar dc surge protection device Parameter (Specification)

Product Model

ESP-D40

Pole

2P

3P

Rated Frequency

One port

SPD Category

Combined type

Test Category

ClassIItest

Colour

Green

Maximum Continuous

Operating Voltage Uc

600VDC 1000VDC

1000VDC

1500VDC

Voltage Protection Level Up(8/20ps)

<2.8kV

<3.5kV

Nominal Discharge Current ln(8/20ps)

20 kA

20kA

Maximum Discharge

Current lmax(8/20ps)

40 kA

40kA

Response Time tA

<25ns

Size

36x90x66                                  54x90x66

Failure Indication

Green: Normal Red: Failure

Sectional Area Of Wires

6~25mm2

Installation Method

35mm standard rail

Working Environment

Temperature

-40℃~+85℃

Sheathing Material

Plastic

Protection Level

IP20

Executive Standard

IEC 61643-31


ICHYTI solar dc surge protection device Feature

 This product is a type 2 surge protection device suitable for photovoltaic systems.

 The equipment is equipped with replaceable modules for easy maintenance.

 Using Longke chip material zinc oxide from Taiwan.

 The combination design ensures high sealing performance of the product.



ICHYTI solar dc surge protection device Details

 New arc baffle: Prevent foreign objects from falling on the surge inlet point to cause a short circuit between phases Prevent the spread of arcing during surge current impact

 New cooling hole: The heat sink can transfer the heat quickly, so that the life of the varistor can be increased

 Replaceable module: Easy disassembly and module replacement

 Indicator window, Red and green lights indicate at a glance

China Solar Dc Surge Protection Device



ICHYTI solar dc surge protection device Dimensions and wiring

China Solar Dc Surge Protection Device
