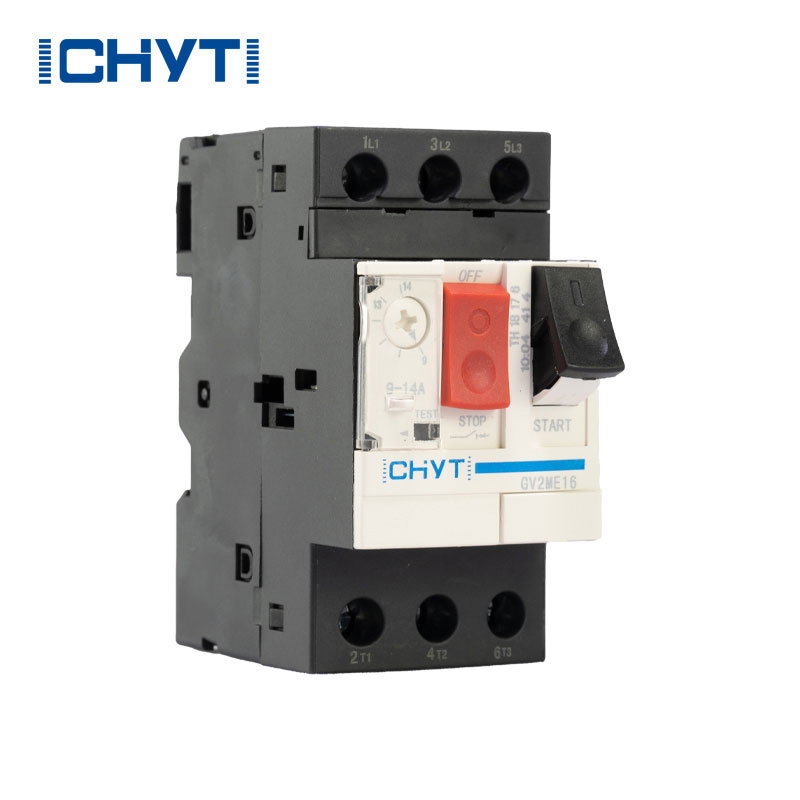

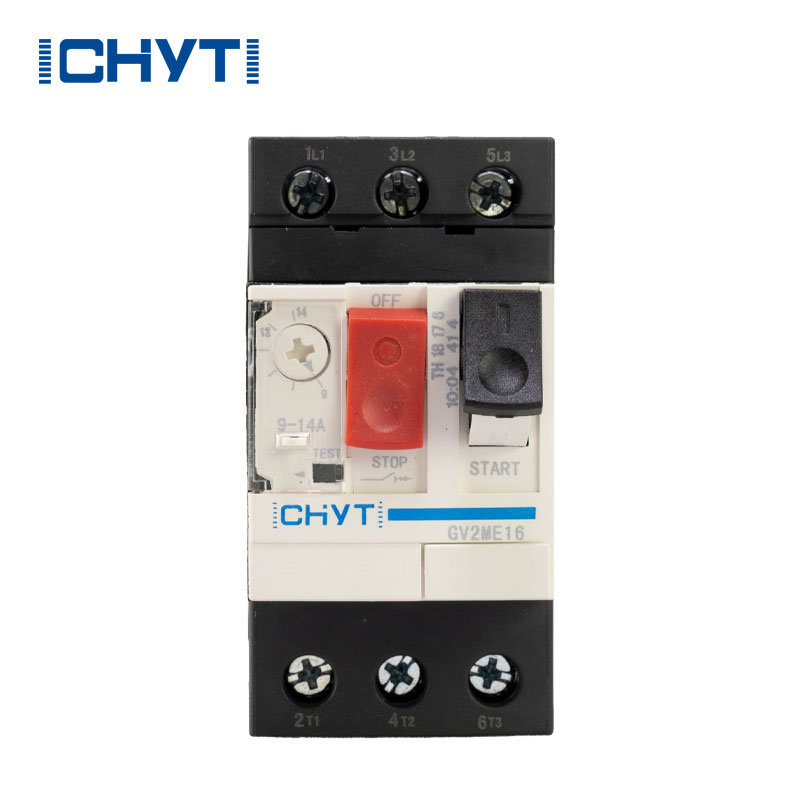

Motor Protective Circuit Breaker

You can purchase our Latest Selling motor protective circuit breaker with confidence, as we provide top-notch after-sales service and ensure prompt delivery. Some of our products have achieved international advanced performance levels. ICHYTI products are exported to regions including Europe, the United States, and the Middle East, among other countries and regions.

Send Inquiry    PDF DownLoad

Product Description

https://youtu.be/PqpklQ2XiXQ

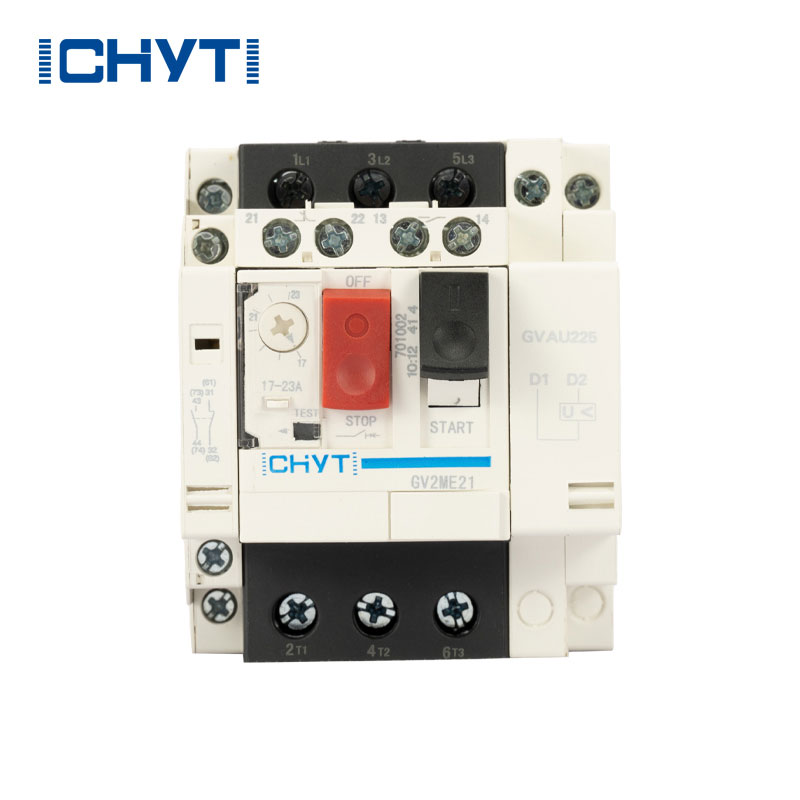

China Suppliers ICHYTI Buy Discount motor protective circuit breaker 2 Years Warranty can be manually controlled through a button or knob, and can be remotely controlled after connecting the contactor. Its protection is provided by a circuit breaker that integrates thermal relays and electromagnetic equipment. All live parts are protected and cannot be directly touched by fingers. motor protective circuit breaker also has an undervoltage trip module that can be disconnected under undervoltage conditions, and a shunt trip module that can be disconnected through remote control. The operators of both open and closed motor circuit breakers can be locked in the "N/C" position using three padlocks.


ICHYTI motor protective circuit breaker Parameter (Specification)

Model

Rated current In (A)

Setting current regulation range (A)

Standard rated power of three-phase motor (kW)

AC-3, 50Hz/60Hz

230/240V

400V

415V

440V

500V

690V

GV2ME01C

0.16

0.1-0.16

-



-

-





GV2ME02C

0.25

0.16-0.25

-

-

-

-

-

-

GV2ME03C

0.4

0.25-0.4

-





-

-

-

GV2ME04C

0.63

0.4-0.63

-

-

-

-

-

0.37

GV2ME05C

1

0.63-1

-





0.37

0.37

0.55

GV2ME06C

1.6

1-1.6

-

0.37

-

0.55

0.75

1.1

GV2ME07C

2.5

1.6-2.5

0.37

0.75

0.75

1.1

1.1

1.5

GV2ME08C

4

2.5-4

0.75

1.5

1.5

1.5

2.2

3

GV2ME10C

6.3

4-6.3

1.1

2.2

2.2

3

3.7

4

GV2ME14C

10

6-10

2.2

4

4

4

5.5

7.5

GV2ME16C

14

9-14

3

5.5

5.5

7.5

7.5

9

GV2ME20C

18

13-18

4

7.5

9

9

9

11

GV2ME21C

23

17-23

5.5

11

11

11

11

15

GV2ME22C

25

20-25

5.5

11

11

11

15

18.5

GV2ME32C

32

24-32

7.5

15

15

15

18.5

25


ICHYTI motor protective circuit breaker Advantages

The GV2 motor circuit breaker is known for its compact and concise characteristics, with a width of only 45mm. It can be classified based on its different performance and functions, such as control type, breaking capacity, motor protection components and accessories.



ICHYTI motor protective circuit breaker Details



ICHYTI motor protective circuit breaker Dimensions


ICHYTI motor protective circuit breaker FAQ

Q: What is motor circuit breaker?

A: CHYT motor circuit breaker combines the functions of low-voltage circuit breakers and thermal overload relays to provide comprehensive protection for motor branch circuits. This device effectively safeguards against overload, phase loss, and short circuits. It also promotes safer wiring practices and enhances motor protection.


Q: What is Mpcb vs MCCB?

A: MPCB is an abbreviation for Motor Protection Circuit Breaker, which is employed to manually control the ON/OFF operation of an electric motor while providing protection to the motor in case of any faults. On the other hand, MCCB stands for Molded Case Circuit Breaker, which is utilized for switching and safeguarding the distribution circuits and electric motors.


Q: How does a motor circuit work?

A: Electric motors function based on the laws of electromagnetism, which state that a force arises when an electric current is passed through a magnetic field. This force generates a torque on a loop of wire within the magnetic field, resulting in the rotation of the motor and the accomplishment of practical tasks.
