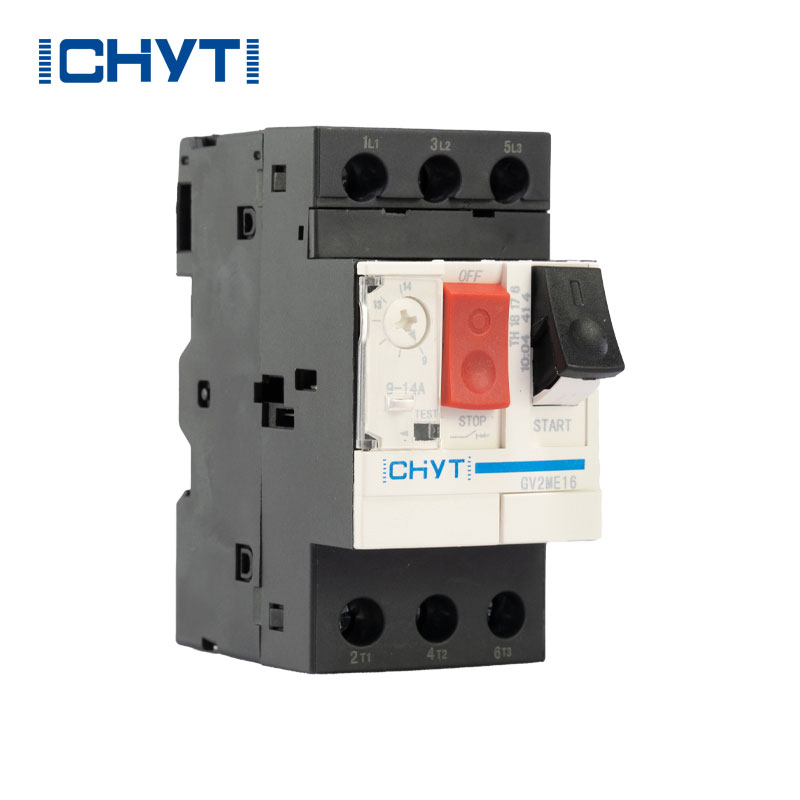

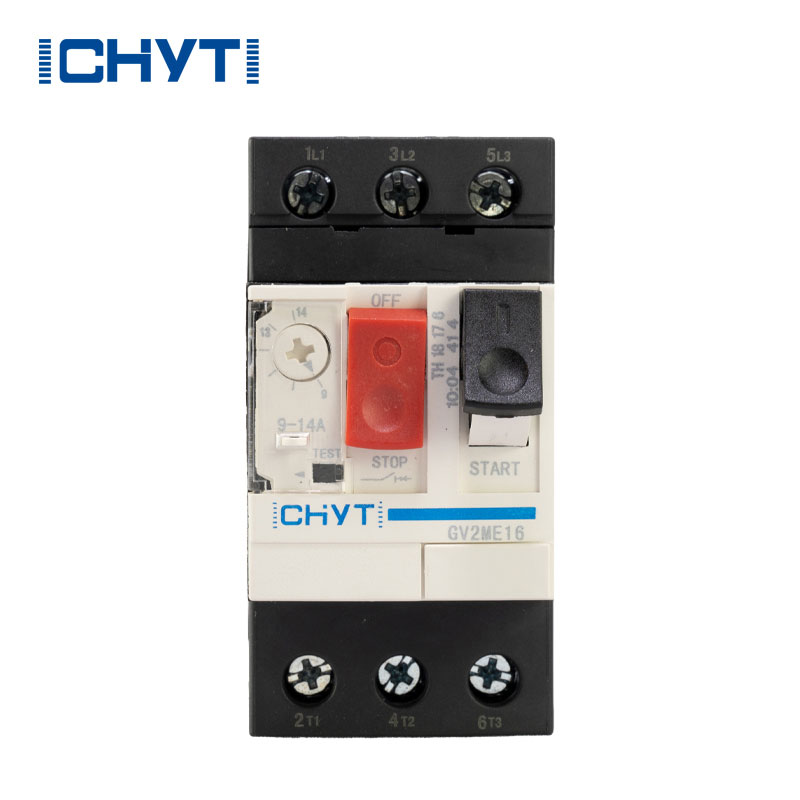

Motor Circuit Protector

ICHYTI factory as a professional motor circuit protector locates in Wenzhou, China, covering an area of 5000m2. There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. ICHYTI product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.

Send Inquiry    PDF DownLoad

Product Description

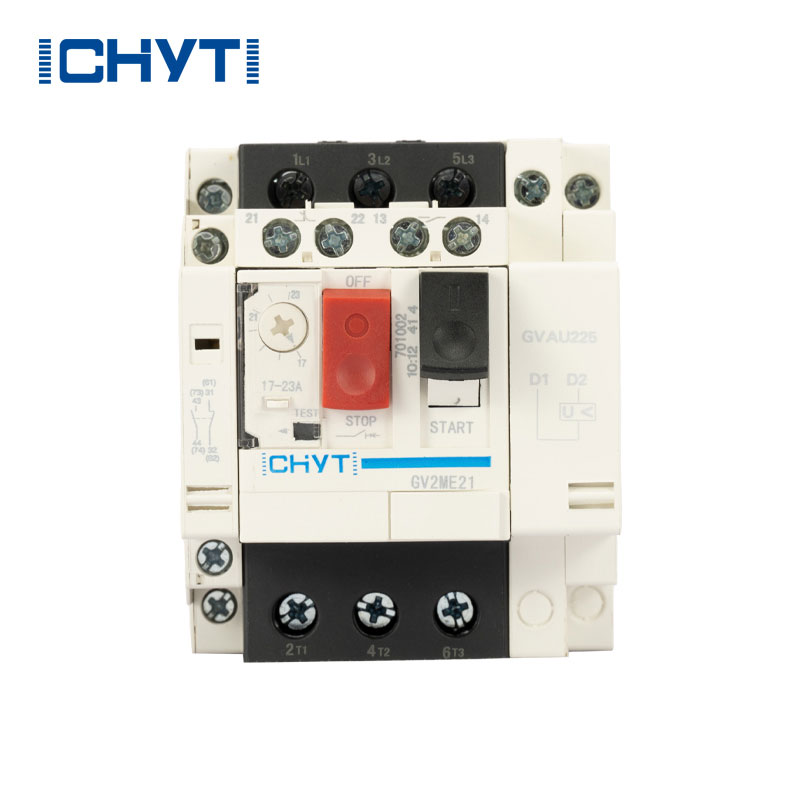

China suppliers ICHYTI Low Price motor circuit protector are suitable for circuits with a maximum AC voltage of 690V and a rated current of up to 45A. motor circuit protector is used for overload, phase loss, and short circuit protection of three-phase asynchronous motors. In addition, motor circuit protector can also have built-in AC contactors and thermal relays, forming a motor control and protection system, providing remote connection and disconnection of circuits. motor circuit protector is suitable for frequent AC motor starting and control, and has a housing frame of 32A to 15 different current levels. motor circuit protector can also be calibrated.



ICHYTI motor circuit protector Parameter (Specification)

Model

Rated current In (A)

Setting current regulation range (A)

Standard rated power of three-phase motor (kW)

AC-3, 50Hz/60Hz

230/240V

400V

415 V

440V

500V

690V

GV2ME01C

0.16

0.1-0.16

-

-

-

-

-

-

GV2ME02C

0.25

0.16-0.25

-

-

-

-

-

-

GV2ME03C

0.4

0.25-0.4

-

-

-

-

-

-

GV2ME04C

0.63

0.4-0.63

-

-

-

-

-

0.37

GV2ME05C

1

0.63-1

-

-

-

0.37

0.37

0.55

GV2ME06C

1.6

1-1.6

-

0.37

-

0.55

0.75

1.1

GV2ME07C

2.5

1.6-2.5

0.37

0.75

0.75

1.1

1.1

1.5

GV2ME08C

4

2.5-4

0.75

1.5

1.5

1.5

2.2

3

GV2ME10C

6.3

4-6.3

1.1

2.2

2.2

3

3.7

4

GV2ME14C

10

6-10

2.2

4

4

4

5.5

7.5

GV2ME16C

14

9-14

3

5.5

5.5

7.5

7.5

9

GV2ME20C

18

13-18

4

7.5

9

9

9

11

GV2ME21C

23

17-23

5.5

11

11

11

11

15

GV2ME22C

25

20-25

5.5

11

11

11

15

18.5

GV2ME32C

32

24-32

7.5

15

15

15

18.5

25



ICHYTI motor circuit protector Feature

 This product supports temperature compensation function and can accurately match the motor power.

 The product has a thermal magnetic comprehensive protection structure, which can achieve multiple protections such as overload, short circuit, three-phase imbalance, etc.

 The current setting value can be flexibly adjusted, and appropriate values can be set based on the actual working current, with clear and clear indication positions.

 There are multiple options for operation, including button type M-type switch, P-type rotary switch, and RSLS key lift switch.



ICHYTI motor circuit protector Details

 Fire-proof material, New material shell. corrosion resistance, high temperature resistance and long service life

 Accurate cument seting, The current setting range is controlled accurately, and there a transparent cover outside the setting panel to protect against dust and false contact

 Designed look, The unique handle decorates a more tasteful living space for you

Motor Circuit Protector



ICHYTI motor circuit protector Dimensions

Motor Circuit Protector
