Ground Fault Interrupter Gfci Protection Switch

ICHYTI is an outstanding factory in ground fault interrupter gfci protection switch in China. ICHYTI has strong independent research and development capabilities, and a number of core technologies have obtained IS09001:2008, 14000 and other patent certifications. The ground fault interrupter gfci protection switch of ICHYTI brand are widely used in the home protection market, are in the leading position in technology in this field, and have passed UL certification.

Send Inquiry PDF DownLoad

Product Description

China Manufacturers ICHYTI Customized ground fault interrupter gfci protection switch 1 Years Warranty is an electrical protection device customized for the North American market. Its main function is to detect electrical faults in time and cut off the current, so as to effectively avoid potential danger and loss. Its appearance provides a more reliable guarantee for household and industrial electricity consumption.ground fault interrupter gfci protection switch not only give full play to the role of electrical protection, but also significantly improve the safety and stability of household and industrial electricity consumption. Therefore, it not only represents the progress of technological development, but also embodies a model of using technology to benefit the people.

ICHYTI ground fault interrupter gfci protection switch Parameter (Specification)

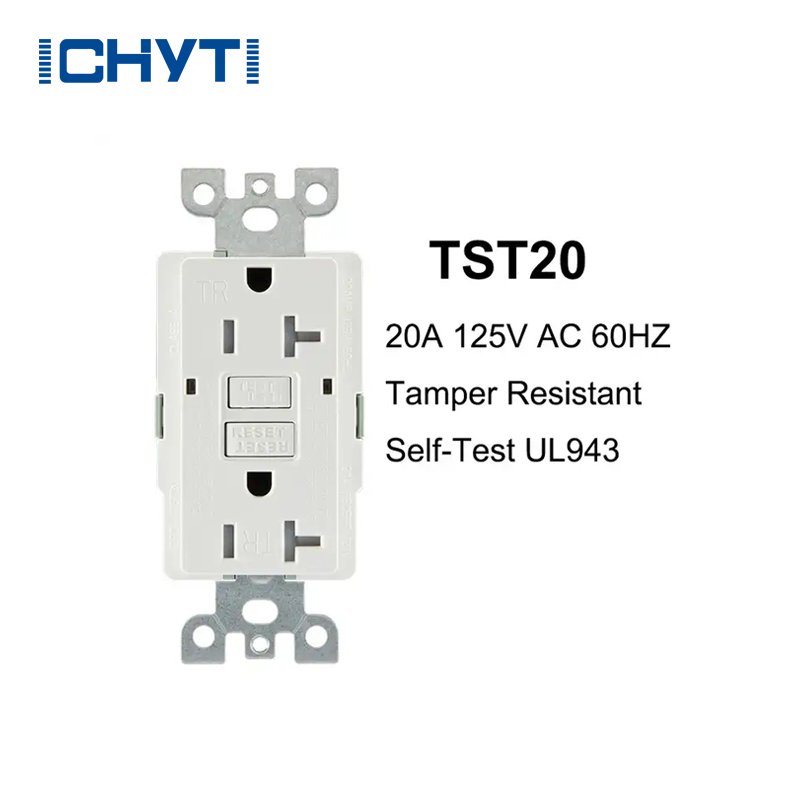

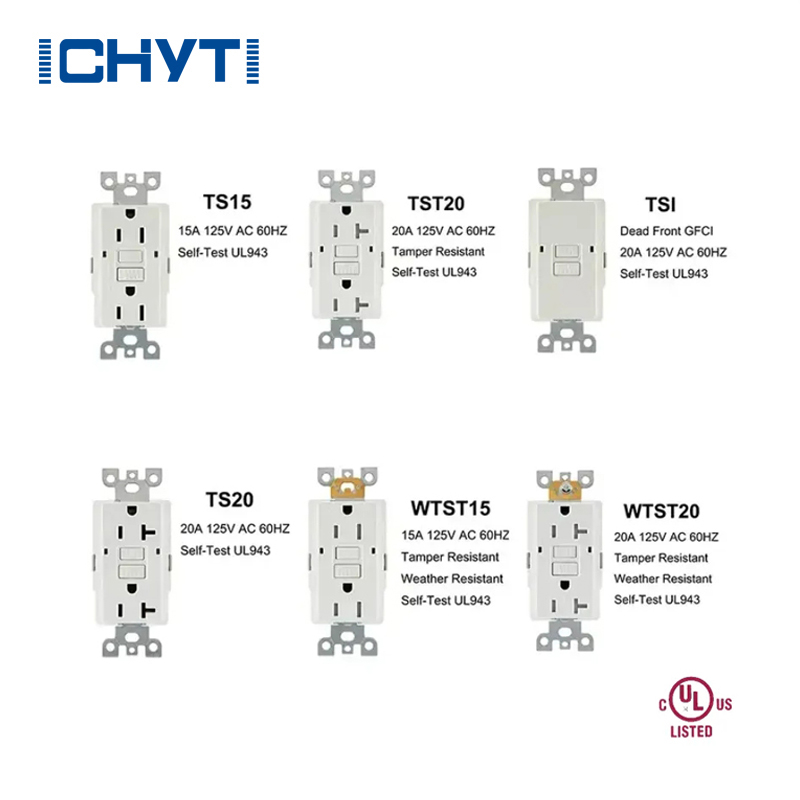

	TS15/20	TST15/20	WTST15/20
Amperage	15A/20A	15A/20A	15A/20A
Voltage	125V AC	125V AC	125V AC
UL/CUL	■	■	■
NEMA	5-15R/5-20R	5-15R/5-20R	5/15R/5/20R
Tamper-Resistant	/	■	■
Weather-Resistant	/	/	■
Applicable Standards	UL943 Fifth Edition/UL498/UL1998
Trip Level	4-6mA s0.025s
Grounding	Self-Grounding Cooper Clip Opitional
Face Material	PC	PC	PC
Body Material	PC+Copper	PC+Copper	PC+Copper
Operating Temperature	-35℃ to +66℃
Flammability	Rated V-2 per UL94
Warranty	2 Years
Color	White/Black or Customized

ICHYTI ground fault interrupter gfci protection switch Features

◉ Our GFCI receptacle adopts the design principle of microcontroller, which can precisely control the leakage current between 4-6 mA, and realize trip protection within 0.02-0.025 seconds.

◉ The product complies with the latest safety regulations and has safety self-test and anti-reverse connection functions. The safety self-test function can regularly detect the working status of the socket to ensure its normal operation and provide stable electrical protection. The anti-reverse connection function can prevent users from inserting the power plug by mistake, avoiding potential electrical failure.

◉ These innovative designs make our GFCI sockets more reliable and efficient in terms of electrical protection, providing users with a safer electricity environment.
