China SuppliersICHYTI Wholesale20 amp gfci electrical outlet is a special protection device designed for the North American market. The operating voltage range is 102VAC to 132VAC, the frequency is 60Hz, the operating temperature is between -35°C and 66°C, the disconnection time is less than 25 milliseconds, and the disconnection current is 4-6 mA. This20 amp gfci electrical outlet has passed UL certification. GFCI socket is an upgraded version of electrical products, which integrates leakage protection, overvoltage protection, undervoltage protection and switch functions.

ICHYTI 20 amp gfci electrical outletParameter Specification

ICHYTI 20 amp gfci electrical outlet Working principle

The working principle of GFCI is based on the monitoring of current difference. When a device leaks electricity or a human body receives an electric shock, part of the current flows to the ground, causing the currents on the live and neutral wires to no longer be equal (usually they are). GFCI will constantly monitor the current situation on live wire and neutral wire, once it detects that the current difference exceeds 6mA, it will immediately cut off the power within 0.025 seconds to ensure the safety of personnel and property. In this way, the GFCI plays the role of quickly cutting off the power supply in case of abnormal current, preventing the occurrence of electric shock accidents.

ICHYTI 20 amp gfci electrical outlet Details

1. The shell of the product is made of 100% pure PC material without impurities to ensure that it meets the V0 fire protection standard.

2. Fine craftsmanship, controllable leakage current, improve product safety.

3. The thickness of the internal copper sheet is 0.8mm, using grade 65 copper with a purity of 98% to ensure better electrical conductivity.

4. The product is equipped with LED lights, which can display four states of the socket and provide more intuitive usage information.

ICHYTI 20 amp gfci electrical outlet Dimensions and wiring

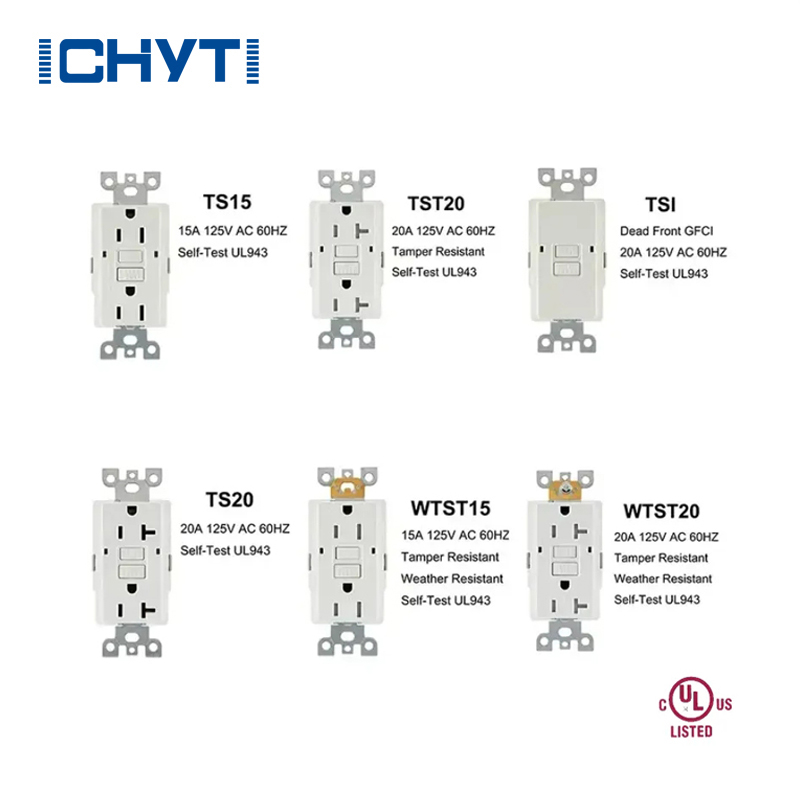

ICHYTI 20 amp gfci electrical outlet Services and types
