Automatic Changeover Switch for Solar System

ICHYTI is a professional factory specializing in the manufacturing of automatic changeover switch for solar system. Our main business includes new product development, product testing, fixture design, manufacturing, fixture design, injection molding, stamping, welding, wiring, and assembly. We operate strictly in accordance with the ISO9001 and TS16949 quality management systems to ensure product quality and customer satisfaction.

Send Inquiry PDF DownLoad

Product Description

China Manufacturers ICHYTI automatic changeover switch for solar system Quotation is suitable for AC dual power systems with a frequency of 50/60Hz, with a rated working voltage of 230V/400V and a rated working current of 125A. This automatic changeover switch for solar system has an optional dual power conversion function that can be switched according to demand. This product as well as fire protection, double break, and output ON signal functions.

ICHYTI automatic changeover switch for solar system Parameter (Specification)

Product Model	LW2R	LW3R	LW4R
Rated Current Ie: A	63A, 100A, 125A
Insulation Voltage Ui	AC690V 50/60HZ
Rated Voltage Ue	AC220V	AC400V	AC400V
Grade	PC Class
Pole	2P	3P	4P
Weight	0.65kg	0.75kg	0.85kg
Electrical Life	2000times
Mechanical Life	5000times
Rated impulse withstand voltage	8KV
Control Circuit Us	AC220V 50/60HZ
Standard	IEC60947-6-1
Operation	Manual / automatic
Type	Break-before-make type ATS

ICHYTI automatic changeover switch for solar system Feature

◉ Reasonable design, compact size, beautiful appearance, with protective cover to ensure safer and more reliable power supply.
◉ Equipped with comprehensive protection functions, including short circuit, overload, phase failure, and voltage loss protection.
◉ No noise, energy-saving and efficient, simple installation, convenient operation, reliable and stable performance.
◉ Reliable remote double break DC12-24V function with EPS fire power interface.

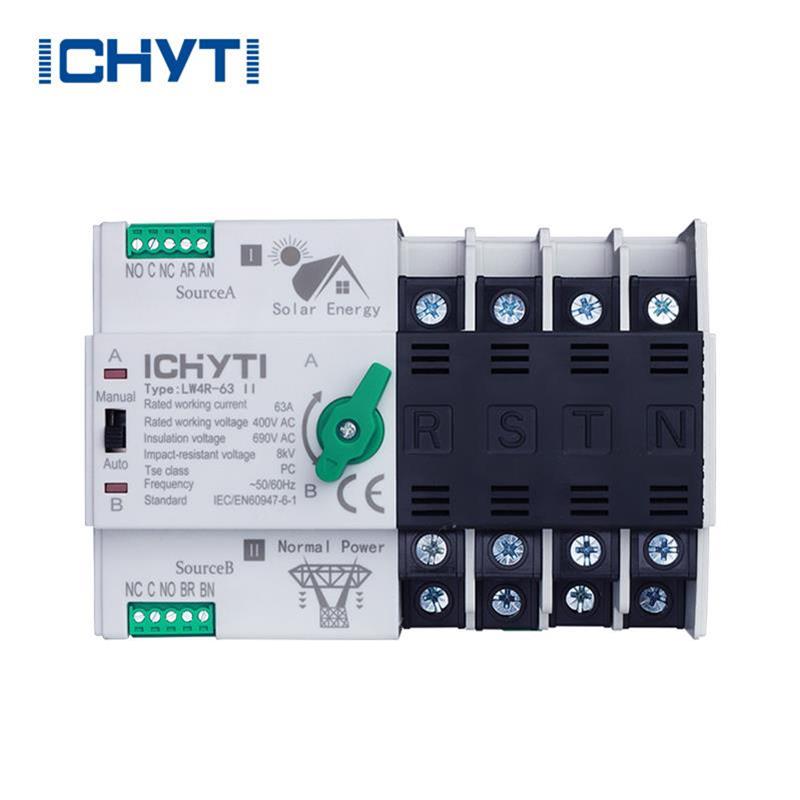

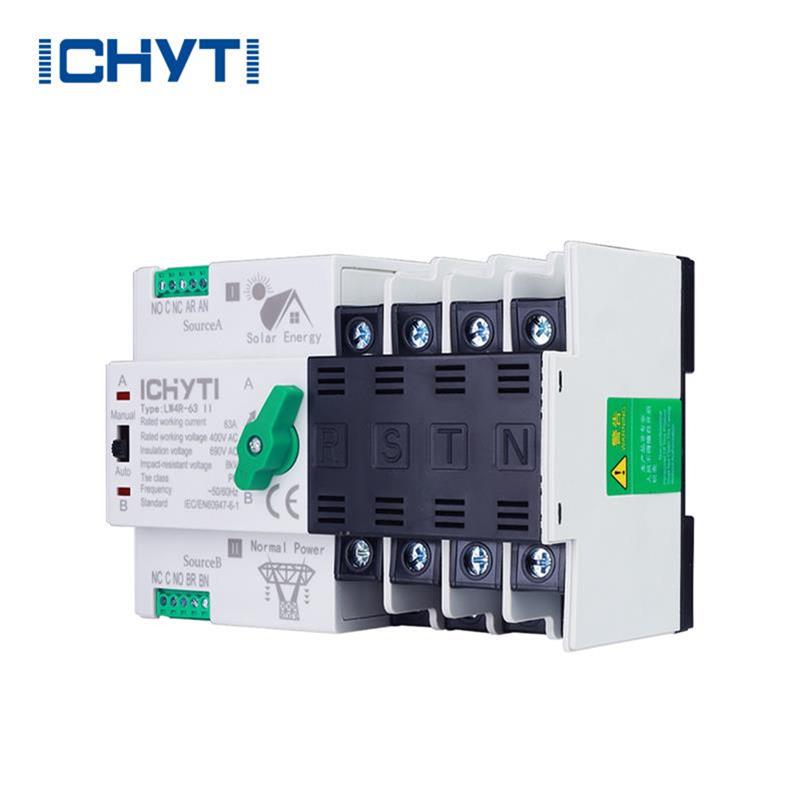

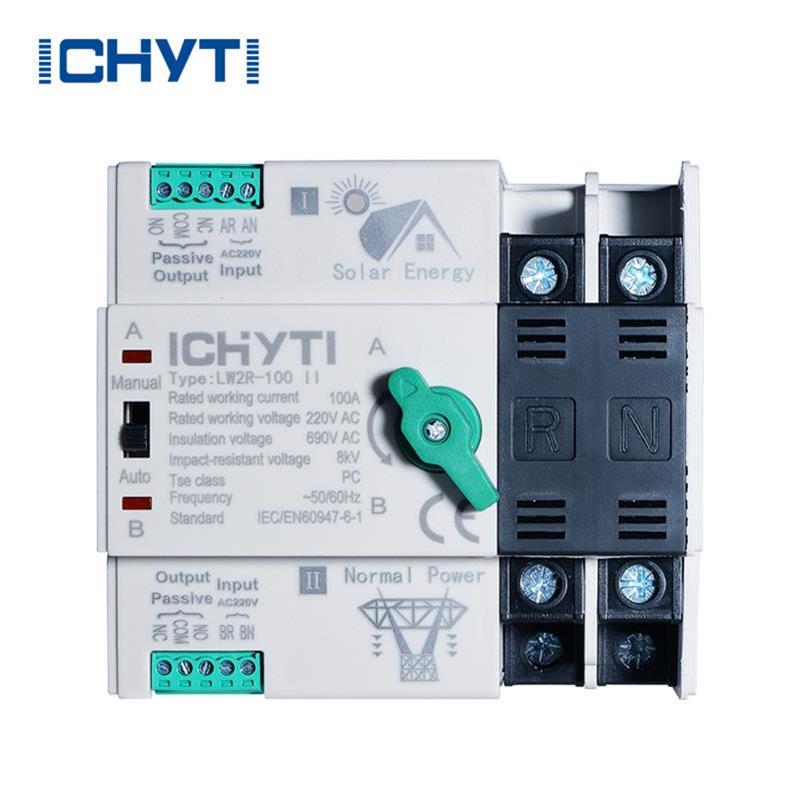

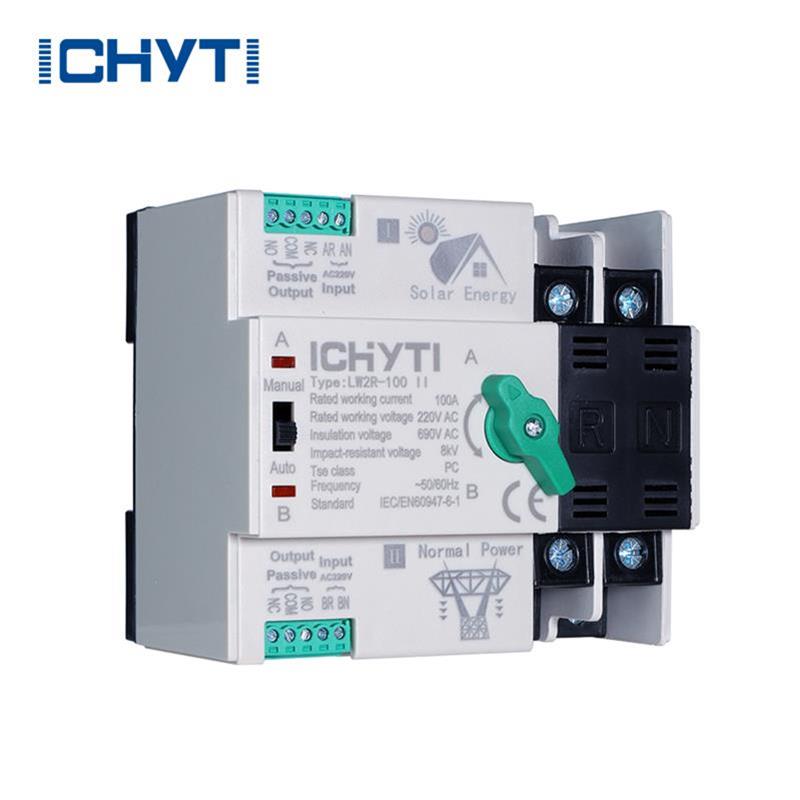

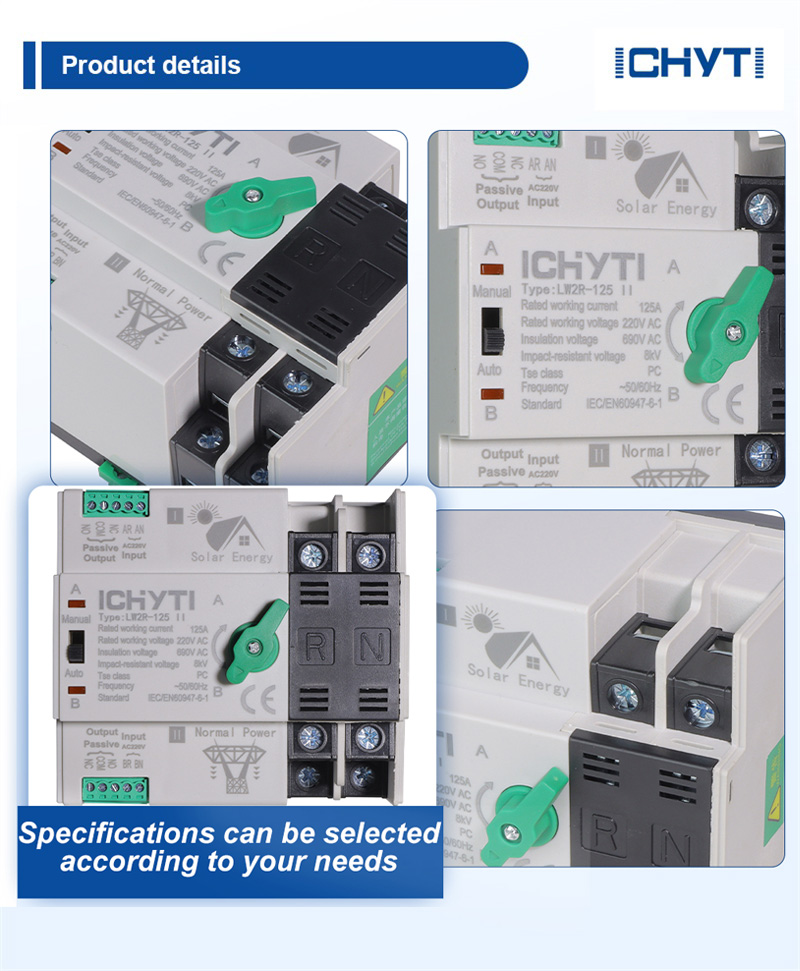

ICHYTI automatic changeover switch for solar system Details

ICHYTI automatic changeover switch for solar system Dimensions and wiring

ICHYTI automatic changeover switch for solar system FAQ

Q: What is your minimum quantity?
A: Normally, our minimum order quantity is $10000. However, for first-time customers, if the order quantity is small, we will try our best to meet their needs.

Q: What is your minimum order quantity?

A: The minimum order quantity for different products may vary. Please confirm with our sales personnel before placing an order.

Q: What certificates do you have?

A: Our products meet the requirements of ISO9001, CE, ROHS and other standards.
