100a Ats Changeover Switch

ICHYTI was established in 2008 and is an 100a ats changeover switch manufacturer. We produce a variety of products, including relays, circuit breakers, switches, thermocouples, thermostats, temperature controllers, switching power supplies, AVS, heat sinks, heaters, distribution boxes, and junction boxes. I have ten years of experience in the 100a ats changeover switch industry.

Send Inquiry PDF DownLoad

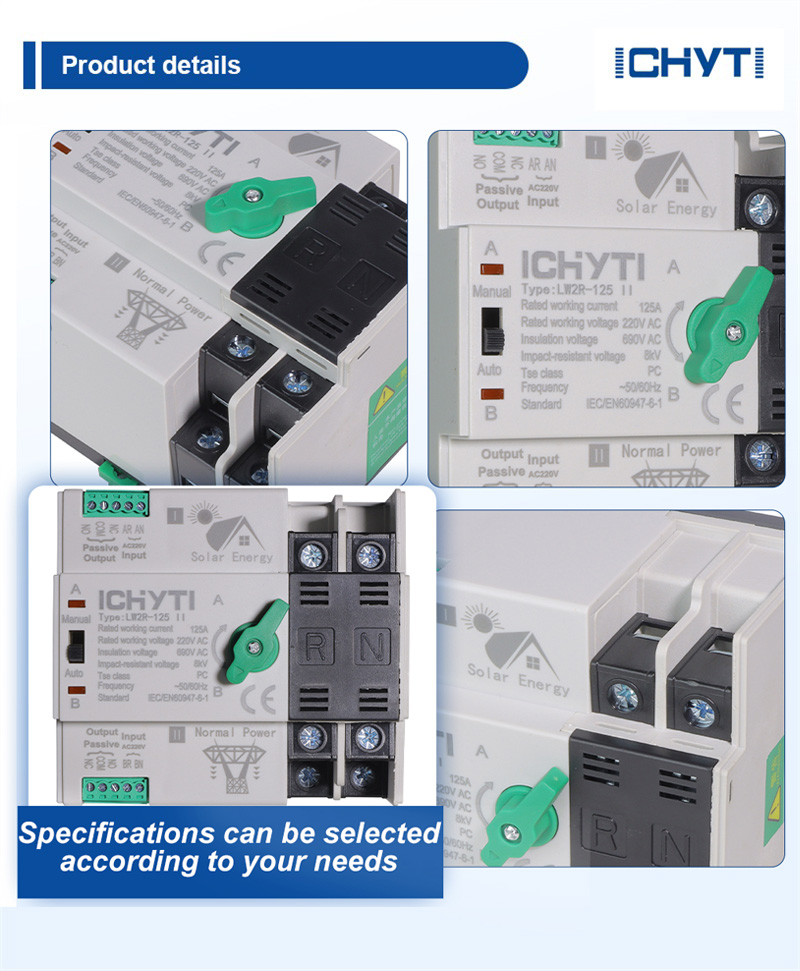

Product Description

China Factory ICHYTI 100a ats changeover switch Made in China is a device used in emergency power supply systems, suitable for rated voltages not exceeding 1000V AC or 1500V DC. Its main function is to interrupt the power supply of the load during the power conversion process.

100a ats changeover switch consists of one or more switching devices and other necessary electrical components, used to monitor power circuits and automatically switch one or more load circuits from one power source to another. In the electrical industry, it is also known as a "dual power automatic transfer switch" or "dual power switch".

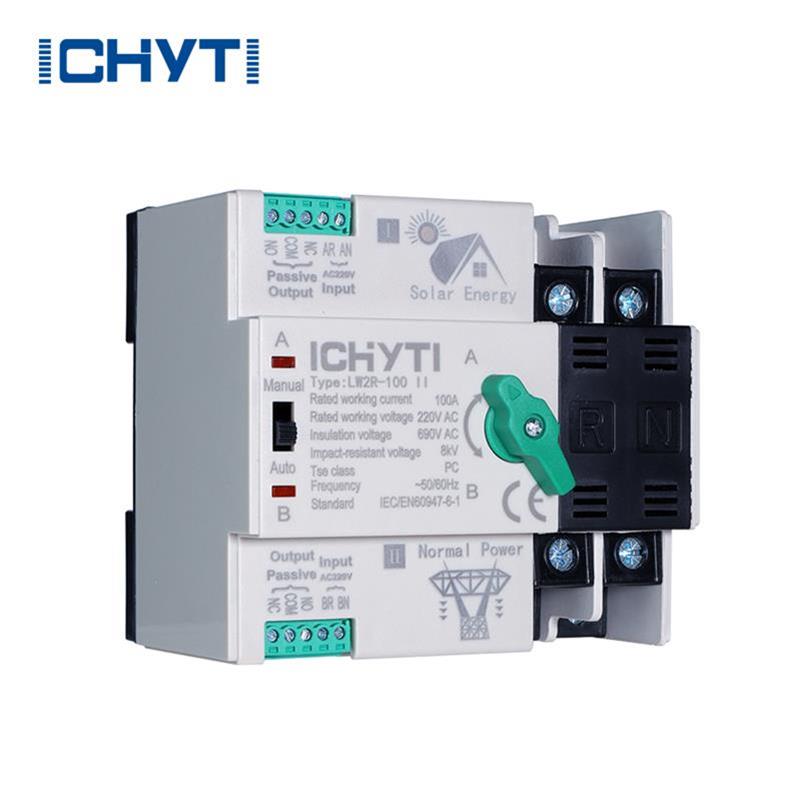

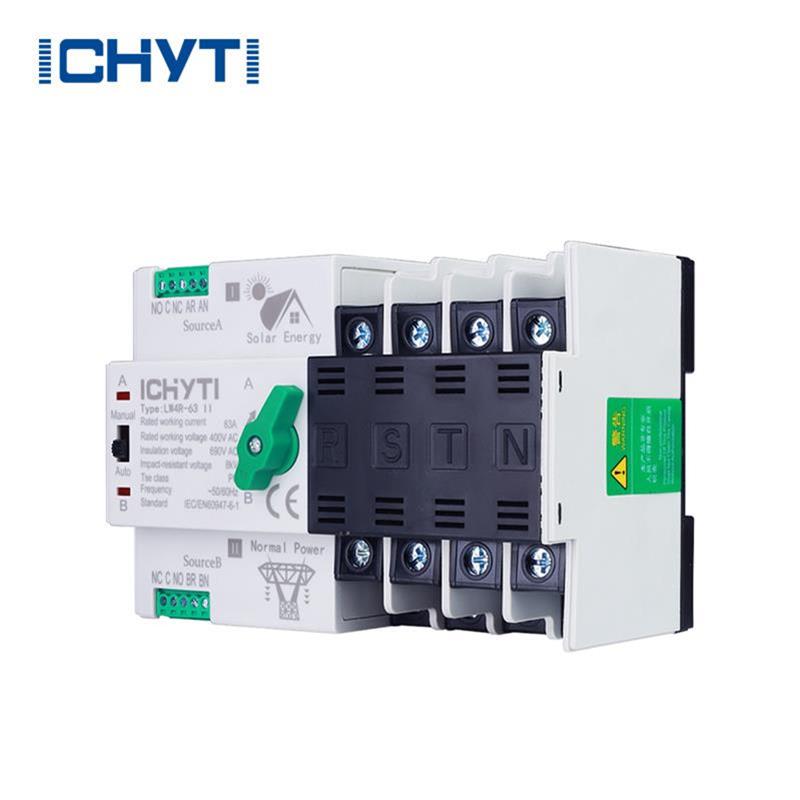

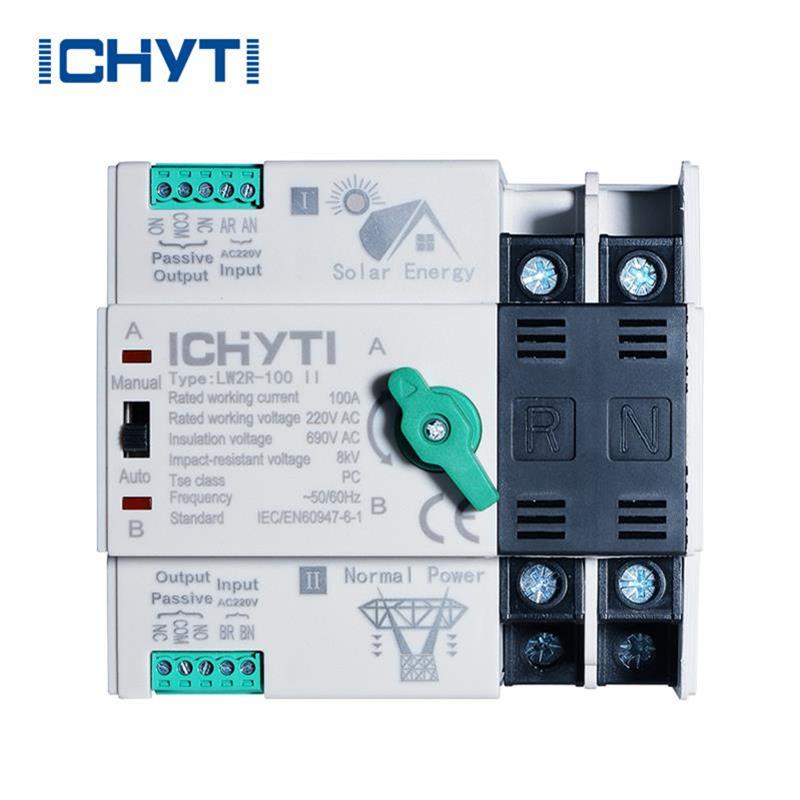

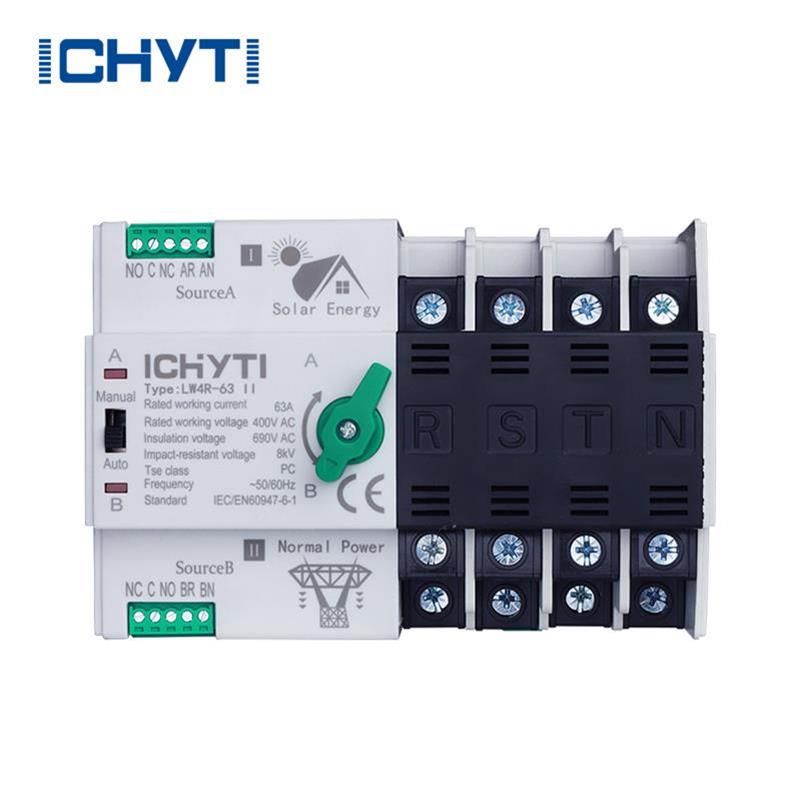

ICHYTI 100a ats changeover switch Parameter (Specification)

Product Model	LW2R	LW3R	LW4R
Rated Current Ie: A	63A, 100A, 125A
Insulation Voltage Ui	AC690V 50/60HZ
Rated Voltage Ue	AC220V	AC400V	AC400V
Grade	PC Class
Pole	2P	3P	4P
Weight	0.65kg	0.75kg	0.85kg
Electrical Life	2000times
Mechanical Life	5000times
Rated impulse withstand voltage	8KV
Control Circuit Us	AC220V 50/60HZ
Standard	IEC60947-6-1
Operation	Manual / automatic
Type	Break-before-make type ATS

ICHYTI 100a ats changeover switch Feature

◉ The rated current of the dual power automatic transfer switch (ATS) is 63A, indicating that the switch can withstand a load with a maximum current of 63 amperes.
◉ The conversion mechanism has three stable positions, aimed at ensuring complete isolation of the two asynchronous power sources. This means that during the switching process, the switch can be switched between different positions to ensure isolation and safety between power sources.
◉ Locking the handle in the O position using a padlock can avoid manual or automatic operation. This is a safety measure that prevents accidental operation or automatic switching by locking the handle in the closed position.
◉ The control unit can be adjusted according to the depth of the switchgear, and the voltage measurement device is installed in the factory. This means that the control unit can be adjusted according to the actual application needs to adapt to the size and requirements of different switchgear cabinets. Meanwhile, voltage measurement devices have been installed in the factory to provide accurate voltage measurement.
◉ The electrical operating mechanism of ATS adopts fuse protection. When the operating frequency of the operating mechanism exceeds the limit, the fuse can protect it. This is an overload protection measure. When the operating mechanism is subjected to a working load exceeding its rated frequency, the fuse will blow to protect the operating mechanism from damage.
