3 Phase Automatic Transfer Switch

ICHYTI is a professional manufacturer of 3 phase automatic transfer switch. You can rest assured to purchase products from our factory. We provide the high quality after-sales service and fast delivery. We have 20 years of manufacturing experience and can provide you with customized services for OEM material sizes and other needs. Our laboratory has passed TUV certification.

Send Inquiry PDF DownLoad

Product Description

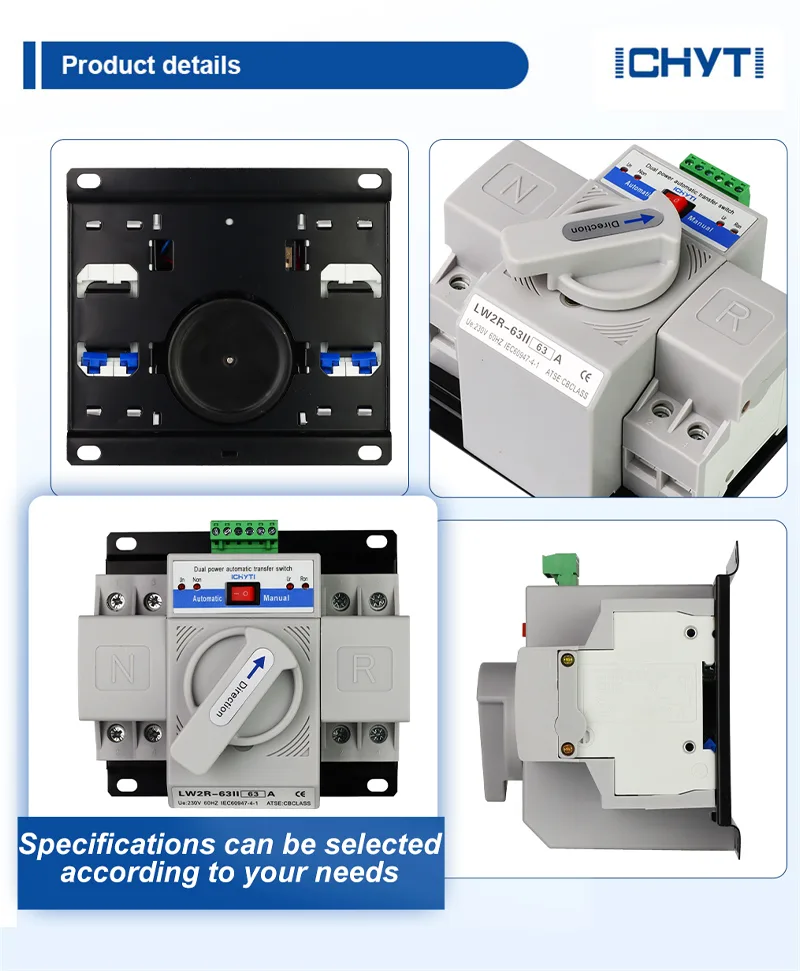

China Factory ICHYTI Customized 3 phase automatic transfer switch Brands is a device that automatically switches power supplies, used to switch two input power supplies to an output. In important places such as hospitals, airports, chemical engineering, metallurgy, data centers, telecommunications rooms, etc., a 3 phase automatic transfer switch is essential. It can automatically switch between the main power supply and backup power supply to ensure the continuous operation of electrical equipment, even if there is a malfunction or power outage in the main circuit power supply.

ICHYTI 3 phase automatic transfer switch Parameter (Specification)

Product Model	LW2R-63II	LW3R-63II	LW4R-63II
Rated Current Ie: A	63A
Insulation Voltage Ui	AC690V 50/60HZ
Rated Voltage Ue	AC230V	AC400V	AC400V
Grade	CB Class
Pole	2P	3P	4P
Rated impulse withstand voltage	4KV
Rated short circuit making capacity Icm	6 KA
Rated short circuit breaking capacity Icn	4.5KA
Electrical Life	2000times
Mechanical Life	5000times
Controller	Type A(basic type)
Control Circuit Us	AC230V 50/60HZ
Operating transfer time (no time delay)	W3s

ICHYTI 3 phase automatic transfer switch Feature

◉ The power generation system is easy to operate
◉ Simple structural design facilitates inspection and maintenance
◉ Adopting advanced sliding contact technology, with stronger overload capacity
◉ The system consists of mechanical devices and automatic controllers.
