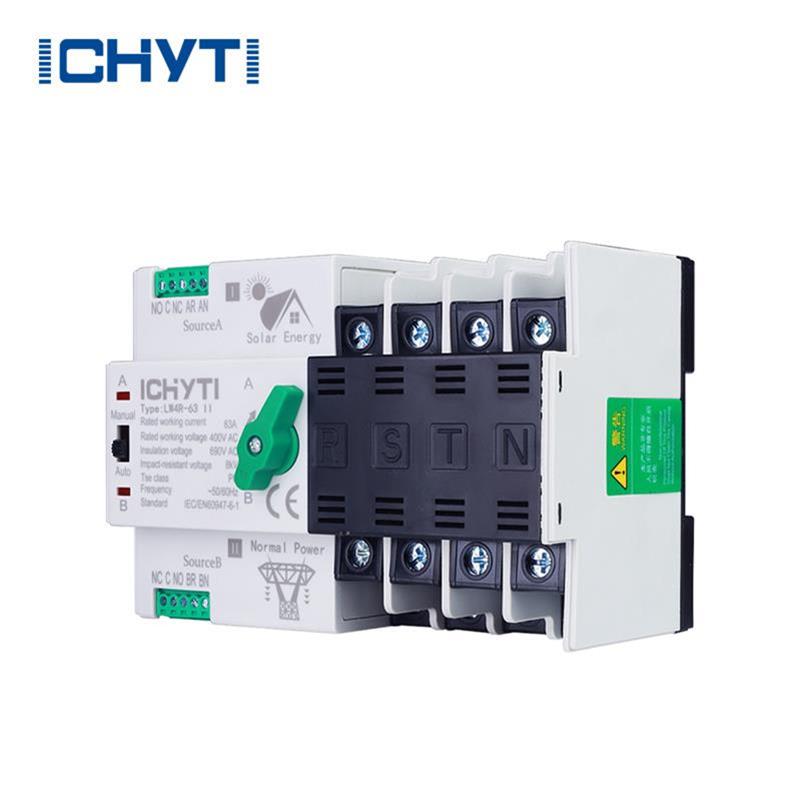

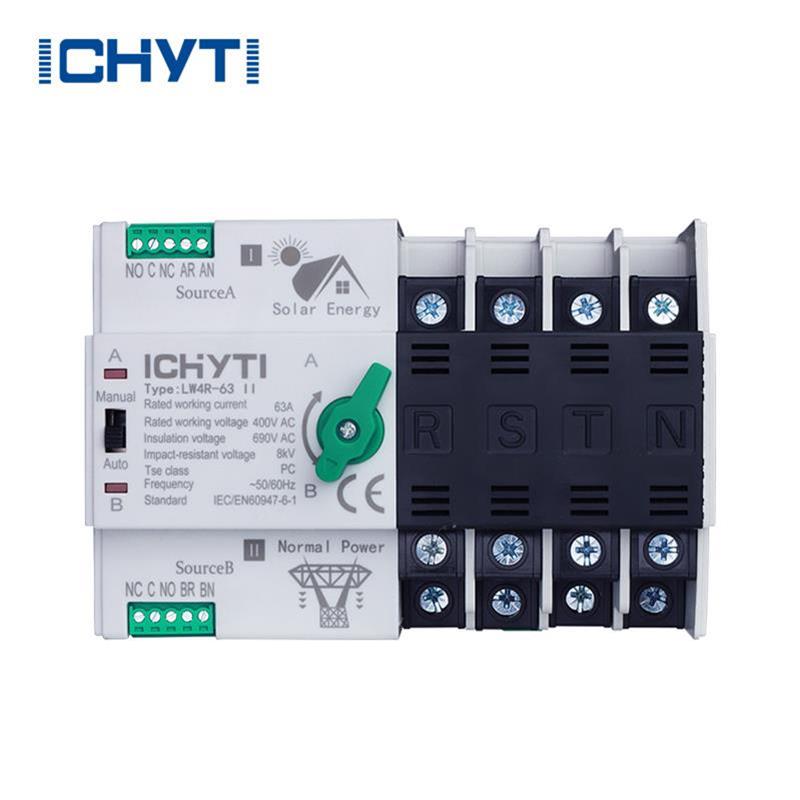

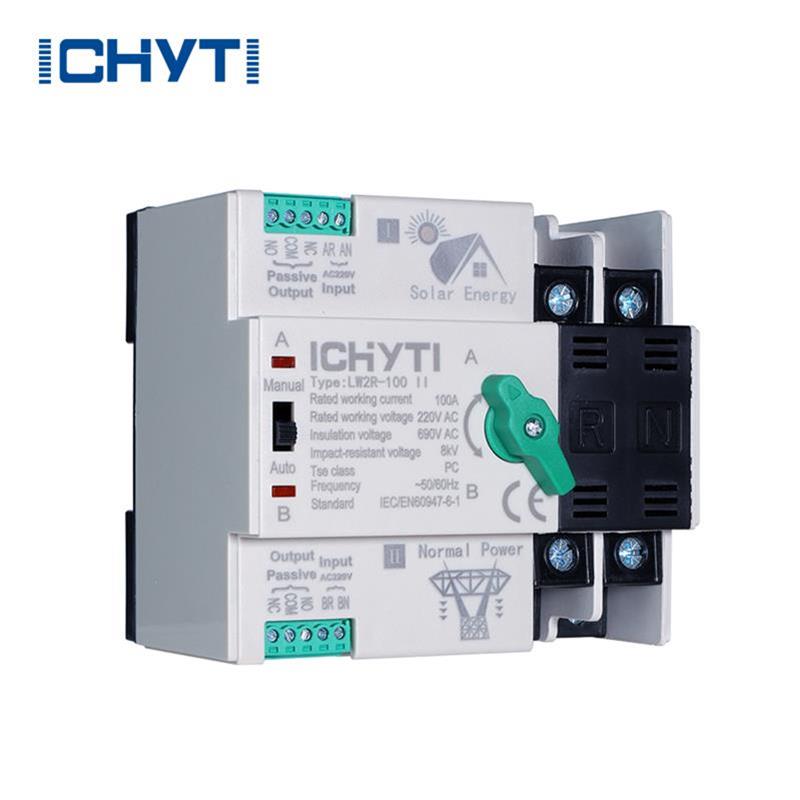

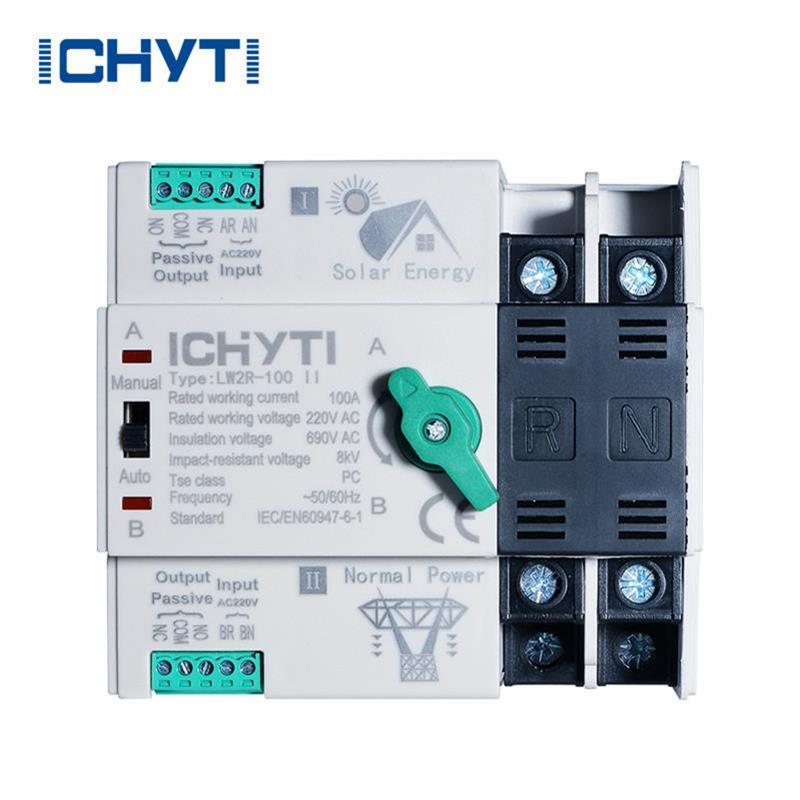

Ats Automatic Transfer Switch

China ICHYTI Manufacturers has accumulated extensive production experience in ats automatic transfer switch over the years, and is capable of providing a comprehensive range of ats automatic transfer switch. Therefore, ICHYTI highly suggest that you visit our website to stay updated with the latest news and products in the industry. We strive to keep our website constantly refreshed with valuable information for our customers.

Send Inquiry    PDF DownLoad

Product Description

China Suppliers ICHYTI Discount ats automatic transfer switch is a recently developed micro household power transfer switch. Its primary function is to determine whether the normal or spare power source is functioning correctly. In the event that the normal source of power becomes abnormal, the spare power source activates immediately. This feature ensures the continuity, reliability, and safety of power supply. Specifically designed for household orbit-type installation, ats automatic transfer switch is intended for use in Din-Rail power distribution boxes.



ICHYTI ats automatic transfer switch Parameter (Specification)

Product Model

LW2R

LW3R

LW4R

Rated Current Ie: A

63A, 100A, 125A

Insulation Voltage Ui

AC690V 50/60HZ

Rated Voltage Ue

AC220V

AC400V

AC400V

Grade

PC Class

Pole

2P

3P

4P

Weight

0.65kg

0.75kg

0.85kg

Electrical Life

2000times

Mechanical Life

5000times

Rated impulse withstand voltage

8KV

Control Circuit Us

AC220V 50/60HZ

Standard

IEC60947-6-1

Operation

Manual/automatic

Type

Break-before-make type ATS



ICHYTI ats automatic transfer switch Feature

 This device has a small and reasonable structure with a sleek appearance and is equipped with protective shields, providing a safe and reliable power supply.

 It can be used to monitor power supply circuits and automatically switch to backup power in case of a power failure.

 This device is suitable for dual power supply systems with a rated working voltage of AC 50Hz 400V.

 Additionally, it comes with a team of dry output contacts for standby generators to facilitate startup and shutdown.

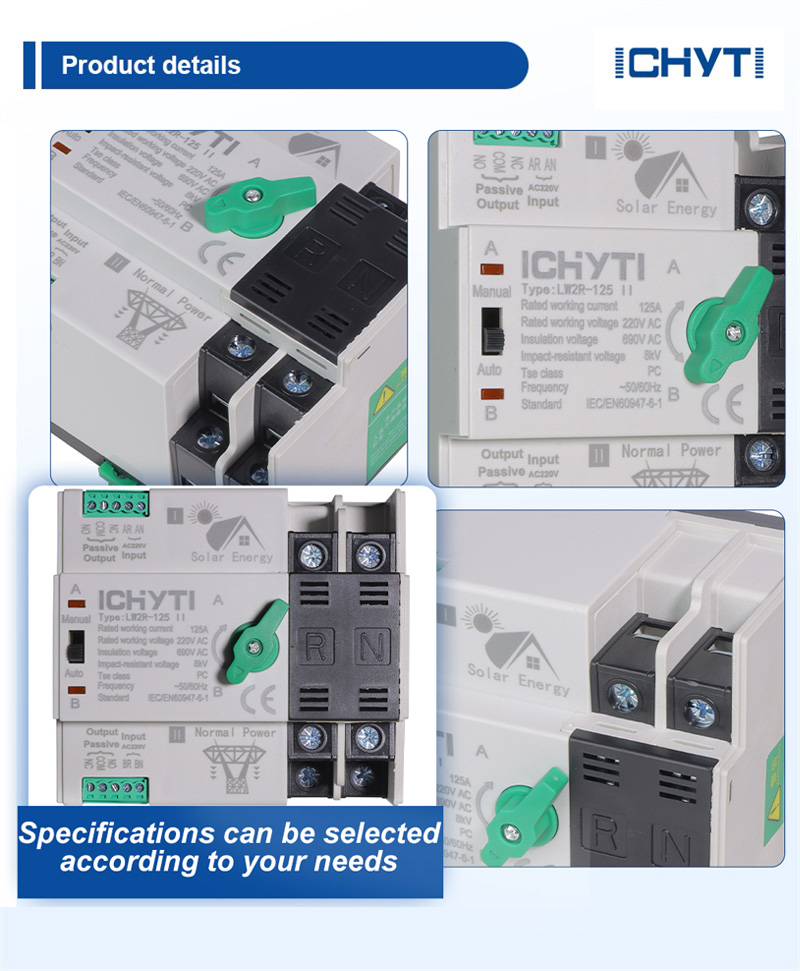

ICHYTI ats automatic transfer switch Details

 The thermoset shell is made of thermosetting resin, which is the primary material for flame retardancy.

 It offers two modes - manual and automatic - which can be easily switched between as needed.

 With its integrated design, this device is as small as a mobile phone and is compact and practical for everyday use.

Ats Automatic Transfer Switch



ICHYTI ats automatic transfer switch Dimensions and wiring

Ats Automatic Transfer Switch
