3 Phase 4 Pole Ac Contactor

China Factory ICHYTI Newest 3 phase 4 pole ac contactor In Stock is a long-distance/remote switching appliance used to control non inductive or low inductive loads. It is widely used in household appliances, resistance furnaces, and other similar low inductance loads, as well as household motors and other household applications.

ICHYTI 3 phase 4 pole ac contactor Parameter (Specification)

Product model	Pole	Usage category	Insulation voltage	Working voltage	Fever current	Working current	Control circuit voltage	Control power
KCH8-2520	2P	AC-1 AC-7a AC-7b	500V	250V	25A	25/9A	220V	5.4/1.5
KCH8-2502
KCH8-2511
KCH8-6320			500V	250V	63A	63/20A	220V	12/3.8
KCH8-6302
KCH8-6311
KCH8-2540	4P		500V	400V	25A	25/9A	24V/ 220V	16/3
KCH8-2504
KCH8-2522
KCH8-6340			500V	400V	63A	63/20A	220V	40/6.5
KCH8-6304
KCH8-6322



ICHYTI 3 phase 4 pole ac contactor Technical data

◉ Contactors are mainly used for AC 50/60Hz power supplies, with a rated voltage of up to 400V and a rated current of up to 63A.
◉ The temperature range is 5 ℃ to+40 ℃, and the average temperature within 24 hours does not exceed+35 ℃.
◉ The applicable altitude does not exceed 2000 meters.
◉ Under atmospheric conditions, the humidity should not exceed 50% below+40 ℃, and can reach 90% below+20 ℃. Special attention is required in case of condensation.
◉ The pollution level is level 2.
◉ The installation type is Type II.
◉ The installation method is TH35-7.5 steel DIN rail.
◉ The protection level is IP20.

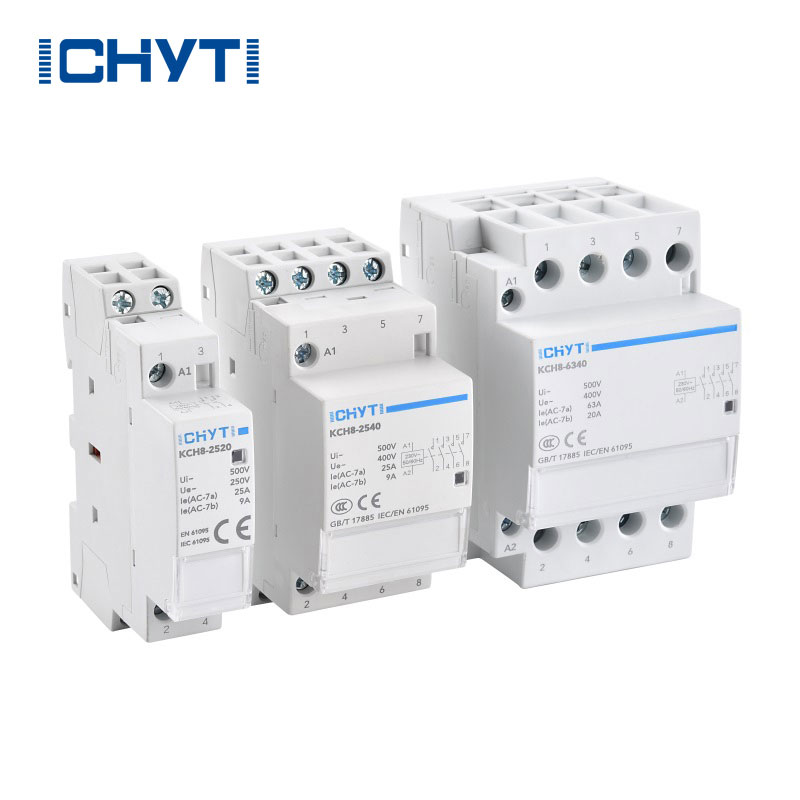

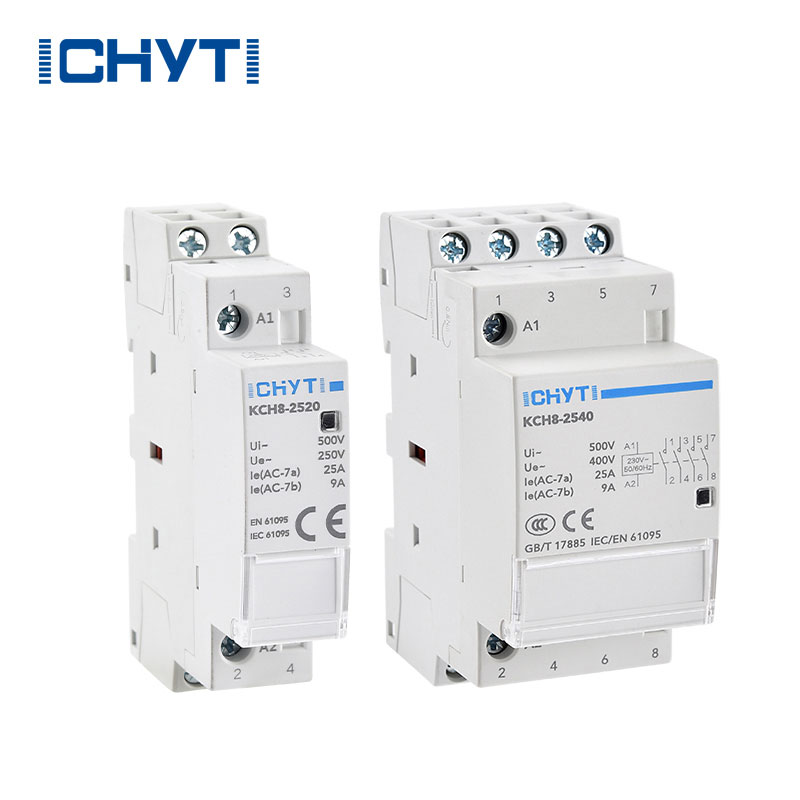

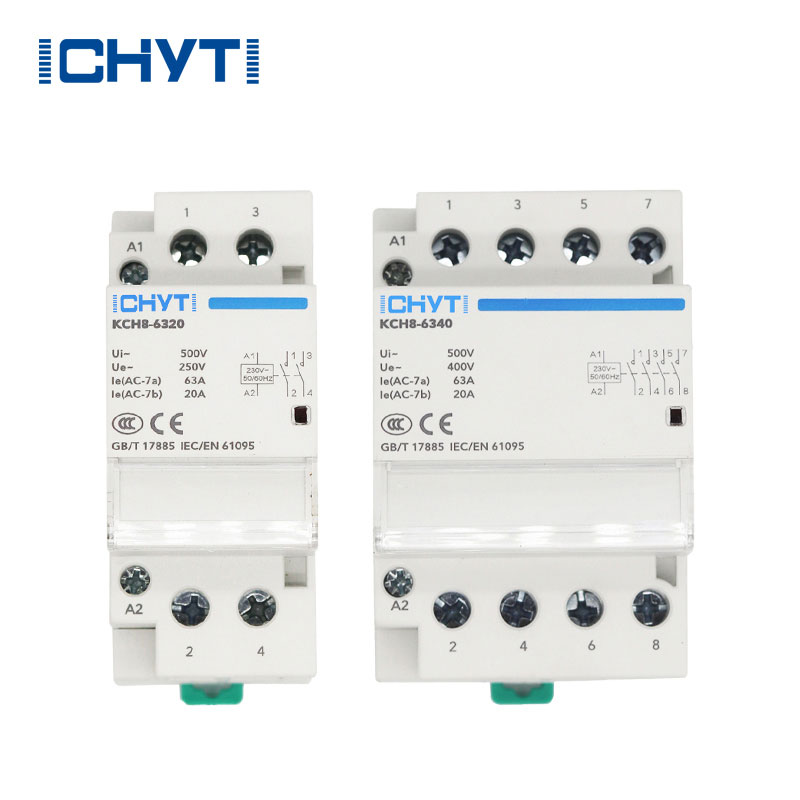

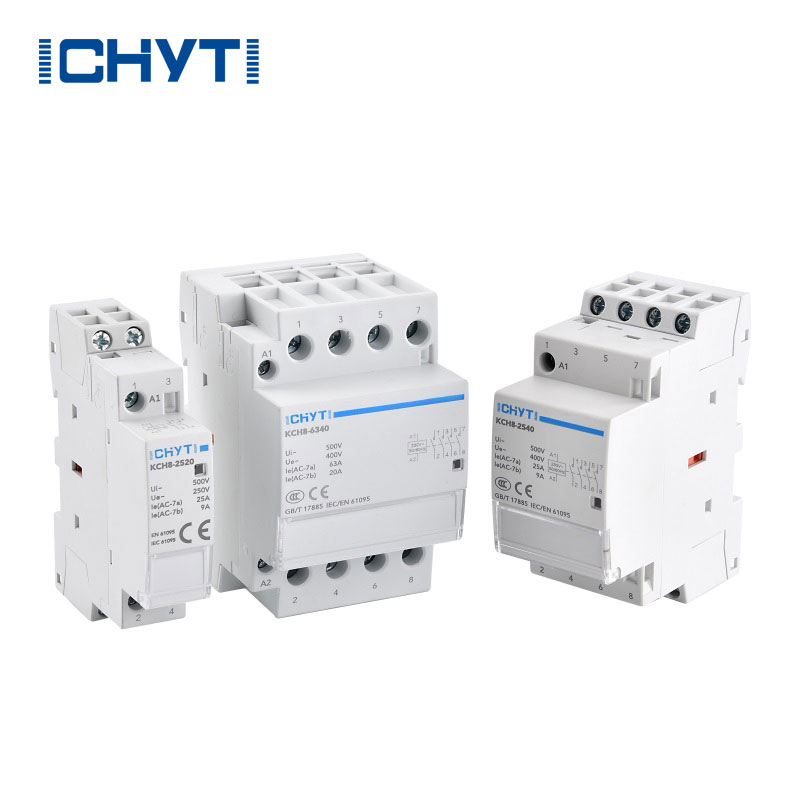

ICHYTI 3 phase 4 pole ac contactor Details

ICHYTI 3 phase 4 pole ac contactor Dimensions



ICHYTI 3 phase 4 pole ac contactor FAQ

Q: How should I make the payment to you?
A: Once you confirm our PI (sales invoice), you can make payment through T/T (wire transfer), credit card, or PayPal. Our most common method of payment is through Western Union remittance.

Q: May I ask what is the delivery time?

A: Standard orders usually require a delivery time of 3 weeks. 2) Sample orders for standard products may be delivered within a week.

Q: How to place an order?

A: You can contact us via email to provide detailed information about the order, or you can choose to place an order online.
