200 Amp Automatic Transfer Switch

ICHYTI is a global high-tech supplier approved by MID. We have a history of over 10 years focusing on designing, developing, manufacturing, and exporting 200 amp automatic transfer switch. Since 2004, ICHYTI have been adopting new scientific and technological methods to develop new products and improve existing ones based on the latest market demands and international standards.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Customized 200 amp automatic transfer switch Price List is a device composed of one or more switching switch appliances and other necessary appliances, which detects the power circuit and automatically switches one or more load circuits to switch from one power source to another.

ICHYTI 200 amp automatic transfer switch Parameter (Specification)

Rated heating current(A)		100	160	250	400	630	1000	1250	1600	2000	2500	3200
Rated insulation voltage Ui (V)		750					1000
Rated working voltage (Ue)		AC400V
Rated impact withstand voltage Uimp (kV)		8					12
Rated operating current Ie (A)	AC-31A	100	160	250	400	630	1000	1250	1600	2000	2500	3200
	AC-35A AC-33A	100	160	250	400	630	1000	1250	1600	2000	2500	3200
		100	160	250	400	630	1000	1250	1600	2000	2500	3200
Rated short-time withstand current Icw(kA)		7	9		13			50				55
Rated limit short-circuit current(kA)		100			70		100	120		80
Grade		PC Class
Standard		IEC947-6-1 GB14048.11-2008
Rated connecting capacity (A Rms)		lOIe
Rated breaking capacity (A Rms)		8Ie
Control supply voltage(V)		DC24V, 48V, 110V, AC220V
Convenrsion time(S)		0.5	1	1.1	1.2		1.25			2.45

ICHYTI 200 amp automatic transfer switch Feature

◉ By using a dual row composite contact transverse connection mechanism with micro motor pre energy storage and microelectronic control technology, zero flashover and no arc extinguishing cover are basically achieved, ensuring safety and reliability.
◉ The application of zero crossing technology further improves its performance.
◉ Excellent safety performance, reliable and stable.
◉ The application of dual row composite contact horizontal pull mechanism micro motor pre storage and microelectronic control technology has basically achieved the function of zero flashover and no arc extinguishing cover.
◉ The structural design adopts reliable mechanical and electrical interlocking to ensure safe operation.
◉ The application of zero crossing technology enables it to be forcibly reset and cut off two power sources in emergency situations, ensuring the safety of operators.
◉ It has functions such as on/off position indication and padlock, achieving isolation between power supply and load, with reliable functionality.

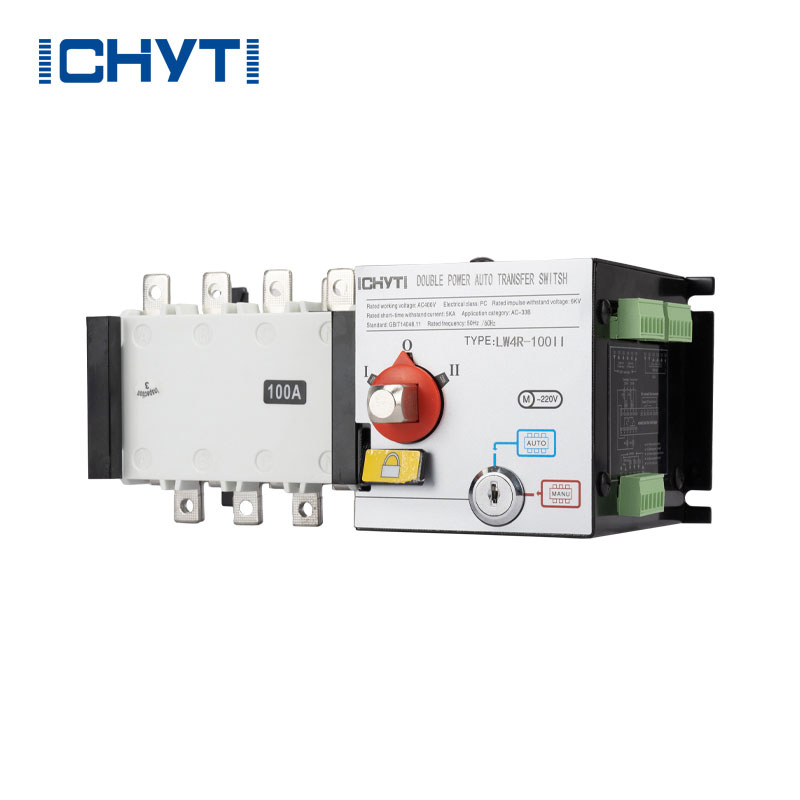

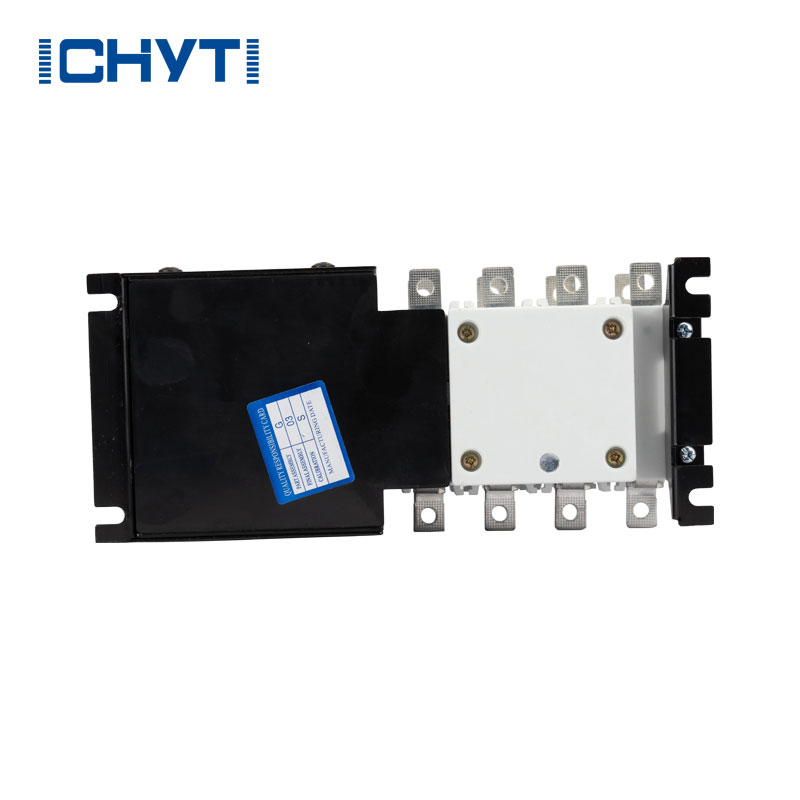

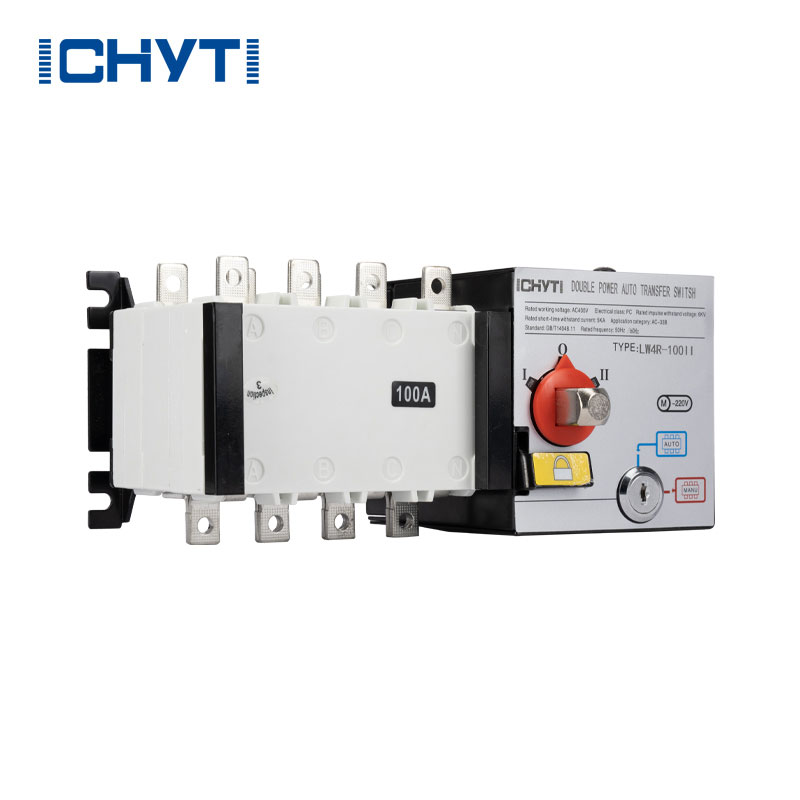

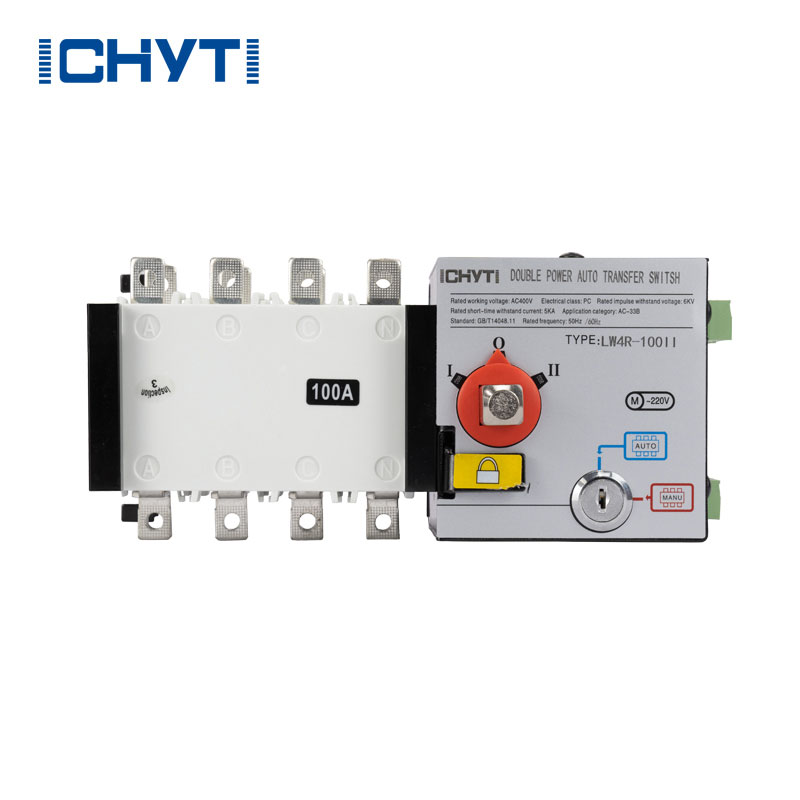

ICHYTI 200 amp automatic transfer switch Details

ICHYTI 200 amp automatic transfer switch Dimensions and wiring

ICHYTI 200 amp automatic transfer switch Working principle

After starting work, the controller will automatically perform continuous data sampling and calculation on the two power sources to determine the effective values of each voltage. Based on preset data, the microprocessor will make various judgments and processes, and send corresponding opening or closing commands to the operating mechanism through a delay adjustable driving circuit. By controlling the direction of the motor, it can be achieved through regular use and double split conversion switches. The fault status can be reflected by LED Nixie tube and indicator light.
