How to Select the Right Photovoltaic Combiner Box: A Step-by-Step Selection Guide

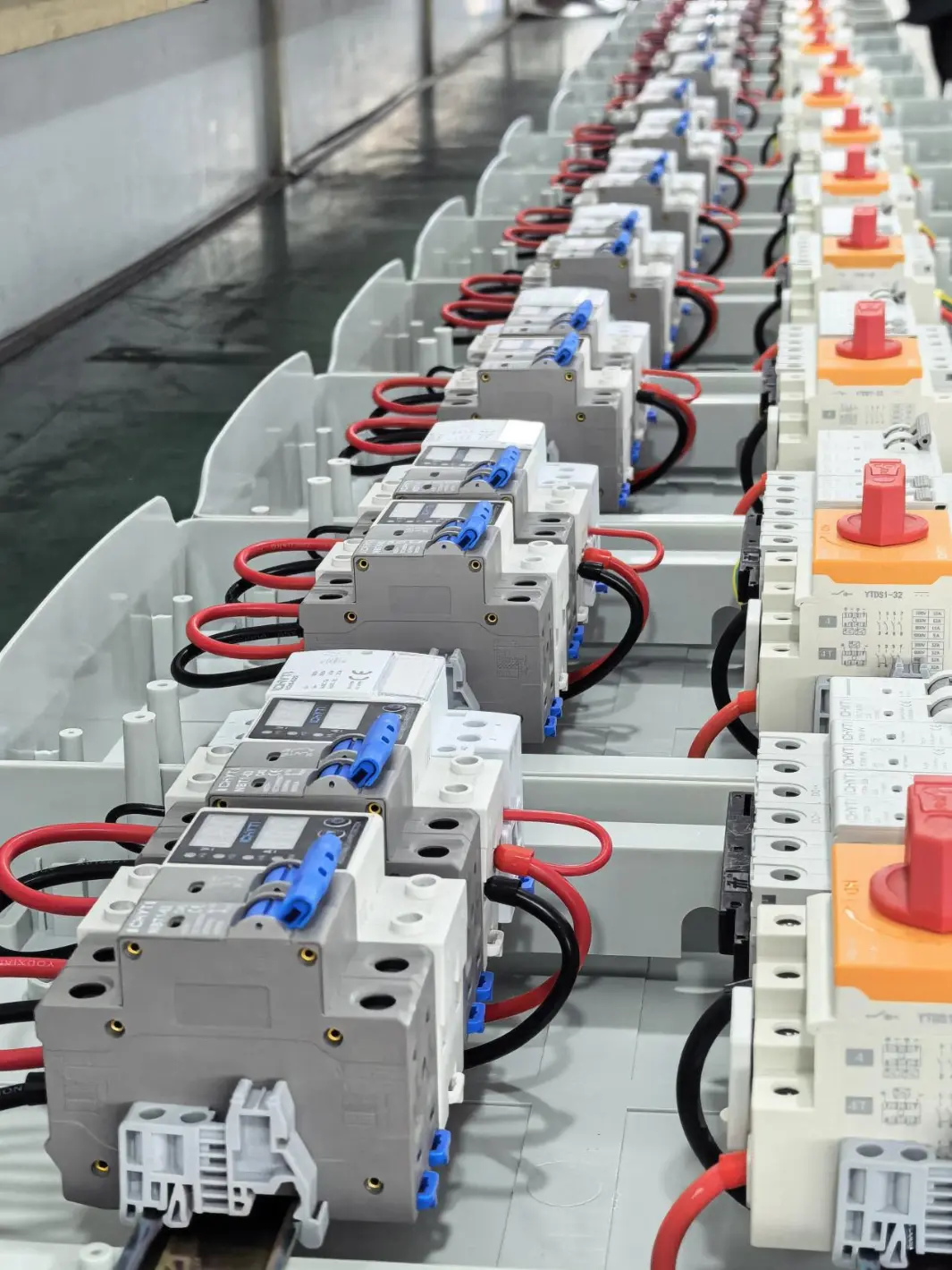

Your Trusted Partner for High-Performance Combiner Boxes
Choosing the correct combiner box for your solar PV system is essential for ensuring safety, maximizing efficiency, and reducing long-term maintenance costs. As a critical component that consolidates multiple string inputs, a properly sized combiner box protects your inverters and panels from electrical faults.
Below is a step-by-step selection process to help you identify the ideal combiner box for your project.
Step 1: Determine the System Voltage
The first and most critical parameter is the system voltage. PV combiner boxes are typically rated for:
| Voltage Level | Application |
| DC 600V | Residential and small commercial systems |
| DC 1000V | Standard commercial rooftop and ground-mount systems |
| DC 1500V | Large-scale utility solar farms |
Selection Tip: Match the combiner box voltage rating to your inverter’s maximum input voltage. Using a lower-rated box can lead to insulation breakdown and safety hazards.
Step 2: Count the Number of Input Strings
The number of string inputs determines the combiner box size. Standard configurations range from 4 to 24 inputs, depending on the scale of the installation.
How to calculate:
Count the total number of PV strings in your array.
Select a combiner box with at least that many input channels.
Leave room for future expansion if possible.
Selection Tip: For systems with more than 24 strings, use multiple combiner boxes connected to a main recombiner.
Step 3: Select the Enclosure Protection Rating
The enclosure must withstand the environmental conditions of the installation site. The Ingress Protection (IP) rating defines the level of sealing against dust and moisture.
| IP Rating | Environment |
| IP54 | Sheltered areas, minimal dust and moisture exposure |
| IP65 | Outdoor installations, rain, dust, and high humidity |
| IP66 / IP67 | Extreme weather conditions, direct water jets or temporary submersion |
Selection Tip: For most rooftop and ground-mount solar projects, IP65 is the industry standard for long-term reliability.
Need Help Selecting the Right Combiner Box?
Selecting the ideal combiner box requires balancing electrical specifications, environmental conditions, and project budget. If you need assistance with sizing or custom configurations, our technical team is available to provide recommendations based on your specific system design.
Contact us for a free selection consultation or to request a factory-direct quotation.
