Digital Multifunction Meter

ICHYTI factory warmly invites you to purchase our digital multifunction meter, which offers exceptional quality at a low price. Our team looks forward to cooperating with you to see how we can best achieve our business strategy. At the core of this strategy, we prioritize stability, expertise, and technological innovation so that we can continue to improve and become a world-class electrical manufacturer. We welcome you to join us on this journey.

Send Inquiry PDF DownLoad

Product Description

China Suppliers ICHYTI Latest Selling digital multifunction meter can measure AC voltage and current, as well as calculate active power, reactive power, and power factor. These values can also be expressed in alternative formats.

ICHYTI digital multifunction meter Parameter (Specification)

Product model	D52-2042		D52-2048
Measurement voltage	AC80-300V	AC200-450V	AC80-300V	AC200-450V
Measuring current	AC100A (additional transformer is required if it is greater than 100A)
Active power	-		0-30000W		0-45000W
Apparent power	-		0-30000VA		0-45000VA
Power factor	-		1.000-0.000
Power supply	No power supply is required
Measurement accuracy	0.5%
Installation	35mm din rail installation
Display	0.31 inch LED digital tube
Function	Monitoring and measurement of voltage and current

ICHYTI digital multifunction meter Features

◉ The maximum measurable current is 99.9A, without the need for an external AC transformer.

◉ The instrument has excellent new quality and high reliability.

◉ It can measure active power, apparent power, and power factor, and is equipped with a 0.31-inch high-definition LCD display screen.

◉ The measurement speed is approximately twice per second.

ICHYTI digital multifunction meter Details

◉ The product is constructed using flame-retardant and fireproof materials that offer high strength and reliability. It is capable of withstanding temperatures up to 100℃without deformation and is flame-retardant up to 750℃, ensuring safety.

◉ Our product is designed to offer accurate measurements, with its high accuracy, convenience, stability, and safety features.

◉ The measurement data display on the HD digital screen theme is presented in a clear and concise manner.

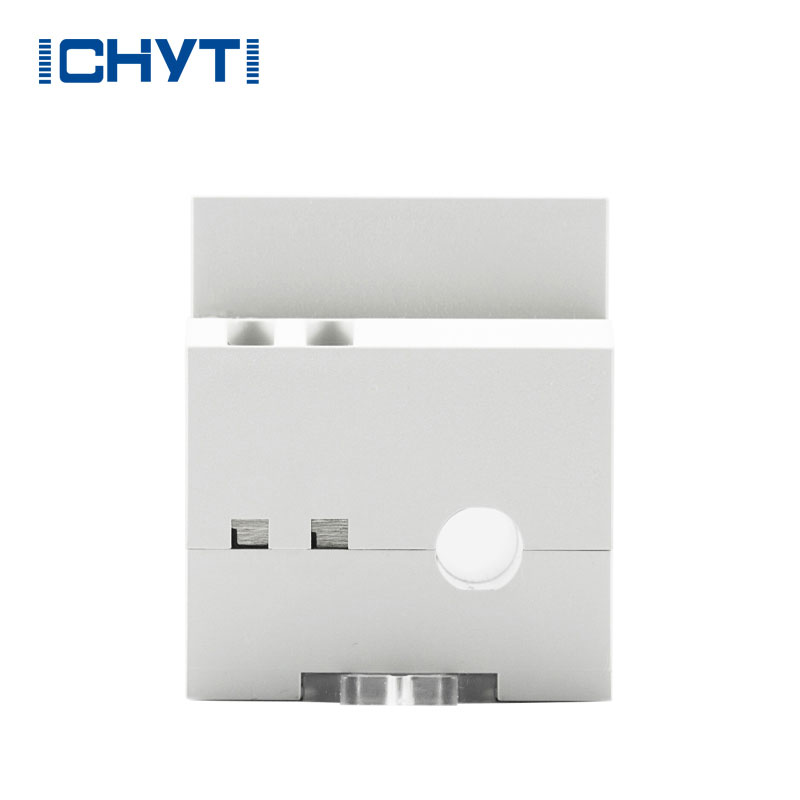

◉ Additionally, the 100A transformer features a wire hole that facilitates easy installation.
