Automatic Voltage Protector
  • Automatic Voltage ProtectorAutomatic Voltage Protector
  • Automatic Voltage ProtectorAutomatic Voltage Protector
  • Automatic Voltage ProtectorAutomatic Voltage Protector
  • Automatic Voltage ProtectorAutomatic Voltage Protector

Automatic Voltage Protector

China ICHYTI specialized in producing automatic voltage protector.Through persistent research and development, we have grown into a leading manufacturer of automatic voltage protector.We produce several series products for you choose, if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details.

Send Inquiry    PDF DownLoad

Product Description

China Factory ICHYTI Latest Selling automatic voltage protector is an intelligent protector that integrates multiple functions such as overvoltage protection, undervoltage protection, overcurrent protection, and intelligent protection. When abnormal situations such as overvoltage, undervoltage, or overcurrent occur in the circuit, automatic voltage protector can immediately detect and cut off the circuit, thereby avoiding unnecessary damage to electrical equipment. In this way, automatic voltage protector can serve as a solid barrier in the circuit, ensuring the stable operation of the circuit.


ICHYTI automatic voltage protector Parameter (Specification)

Product Model


Power supply

220/230VAC 50/60Hz

Max.Loading power

1 ~40A Adjustable(default:40A)

1 ~63A Adjustable(default:63A)

Over-voltage protection value range

240V~300V Adjustable(default:270V)

Under-voltage protection value range

140V-200V Adjustable(default:170V)

Power-on delay time

1s~300s Adjustable(default:30s)

Power consumption


Electric life

100,000 times

Machinery life

100,000 times


35mm DIN rail

ICHYTI automatic voltage protector Feature

 The equipment is installed using a 35mm standard guide rail;

 When the line voltage is under voltage, the equipment will automatically disconnect single-phase or three-phase disconnection. After the voltage returns to normal, the equipment will automatically delay recovery and reset without the need for manual operation;

 The device has the inverse time operation characteristic of the protector, and the action time does not exceed 1 second;

 This device is suitable for connecting 63A capacity and 25mm²insulated wires  The following lines.

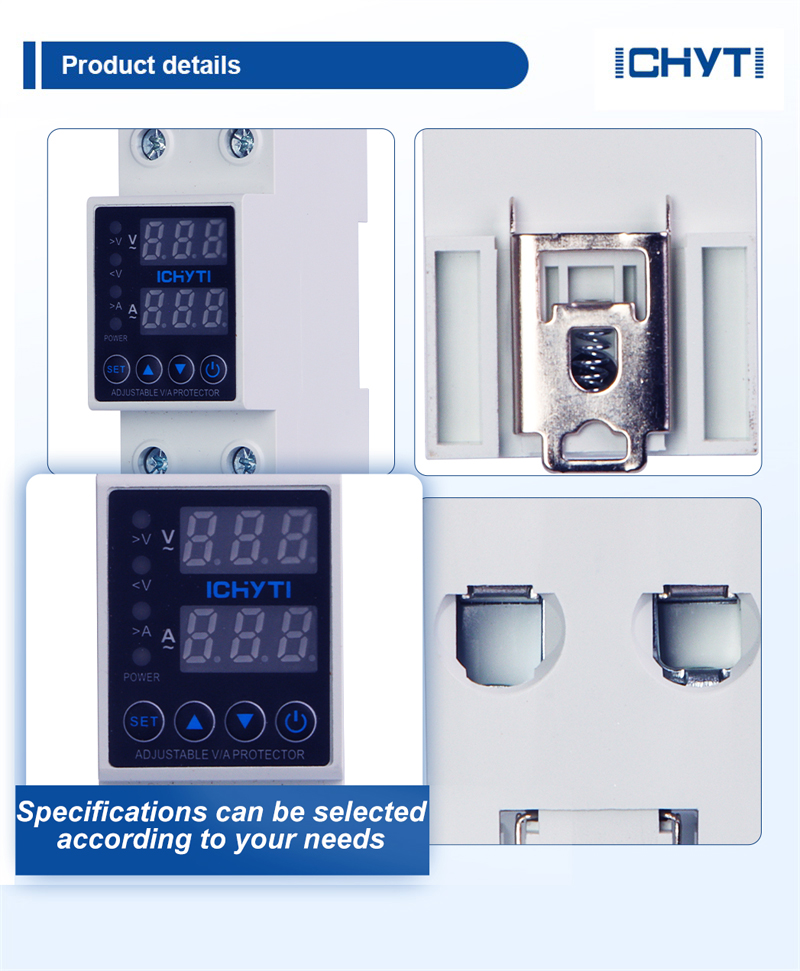

ICHYTI automatic voltage protector Details

 The shell is constructed with PPC flame-retardant material, providing increased durability and a higher level of safety.

 Manually adjust the protection levels for over-voltage, under-voltage, and over-current to intelligently protect your appliances. These parameters can be easily modified to meet your specific needs and provide optimal protection for your valuable equipment.

 Real-time display of current and voltage with LED digital display, automatic breaking for overcurrent and overvoltage.

 The device offers multiple layers of protection, allowing for instant disconnection of the power supply in the event of overvoltage, undervoltage or overcurrent faults. These safeguards ensure the electrical equipment is shielded from potential damage.

Automatic Voltage Protector

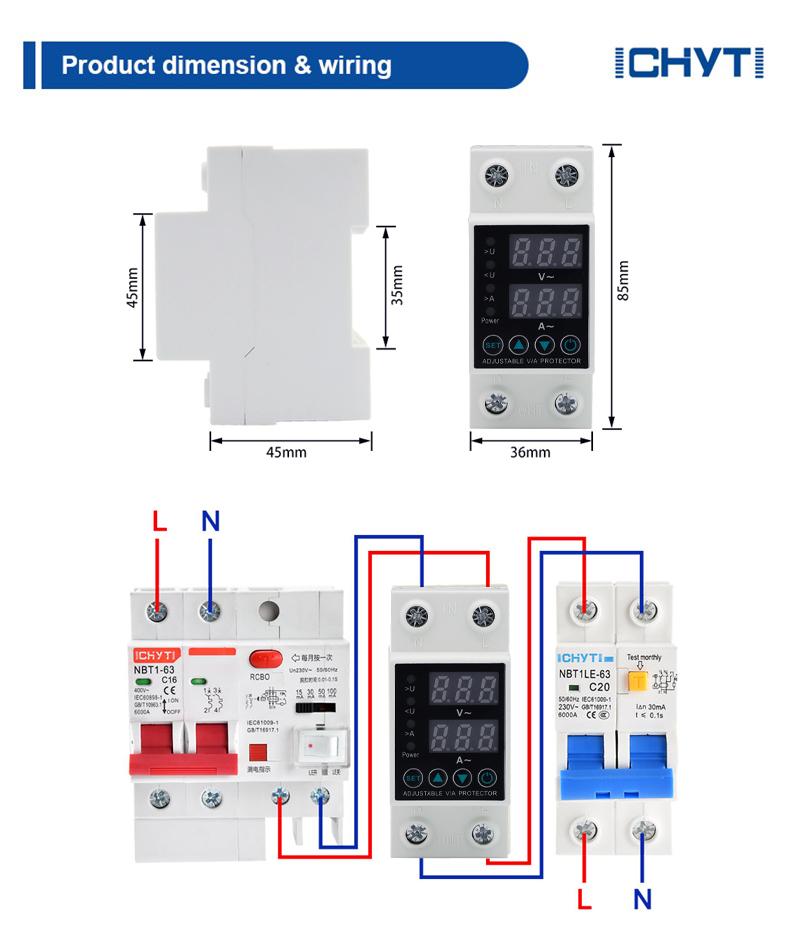

ICHYTI automatic voltage protector Dimensions and wiring

Automatic Voltage Protector
