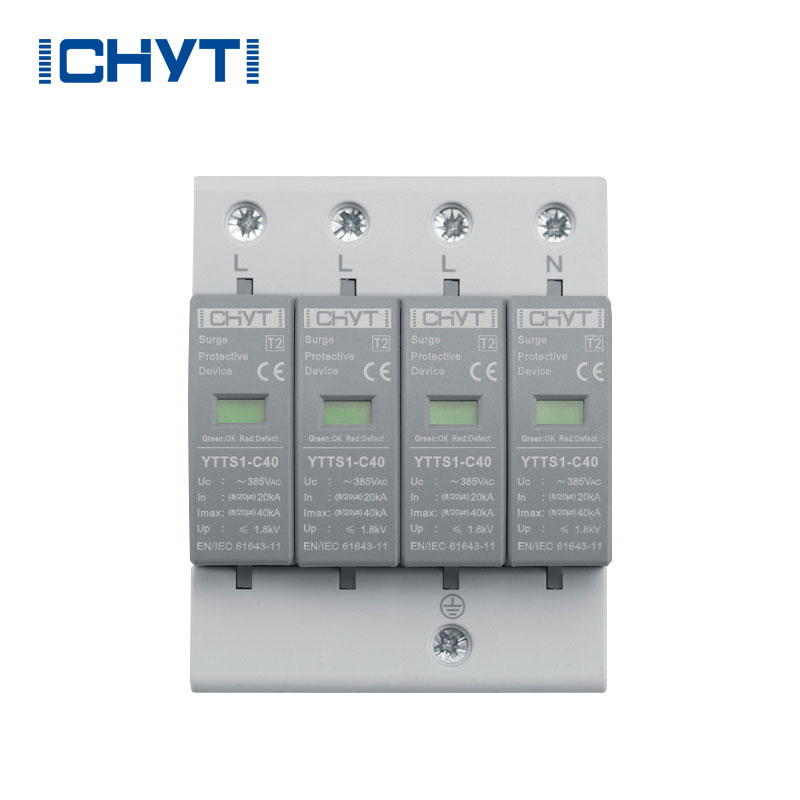

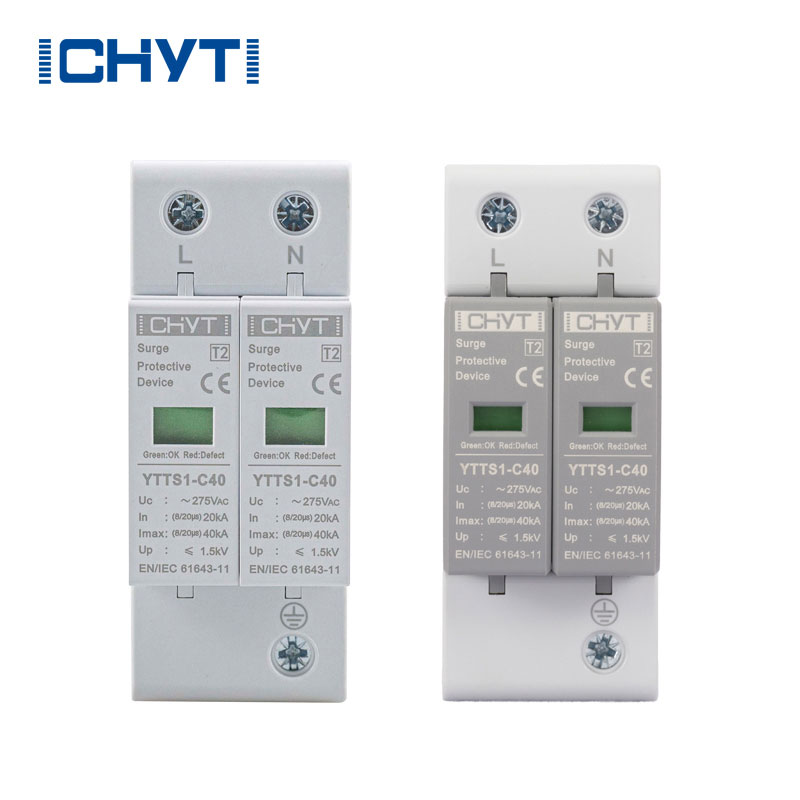

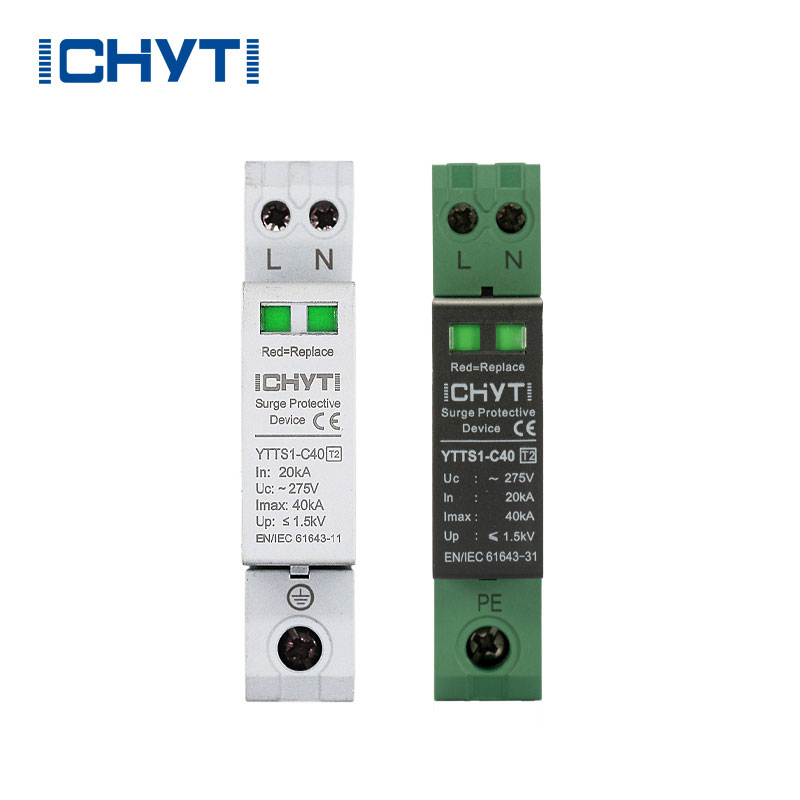

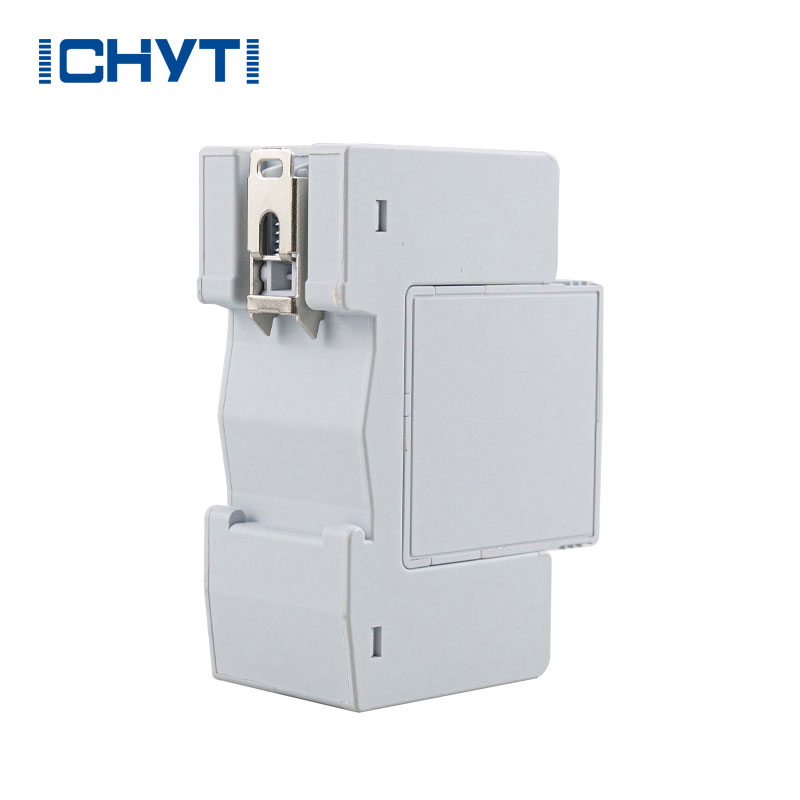

Ac Power Surge Protection Device
  • Ac Power Surge Protection DeviceAc Power Surge Protection Device
  • Ac Power Surge Protection DeviceAc Power Surge Protection Device
  • Ac Power Surge Protection DeviceAc Power Surge Protection Device
  • Ac Power Surge Protection DeviceAc Power Surge Protection Device

Ac Power Surge Protection Device

With years of experience in production ac power surge protection device, China ICHYTI can supply a wide range of ac power surge protection device. So we recommend that you collect our website, and we will show you the latest news on a regular basis. ICHYTI Brands Have many years of experience in goods export, to provide safe, time-efficient logistics, skilled operation of export declaration. ICHYTI Brands Master relevant laws of importing country, customs clearance process and document making.

Send Inquiry    PDF DownLoad

Product Description

China Manufacturers ICHYTI ac power surge protection device In Stock needs to be able to withstand a large amount of discharge current and provide residual voltage at the Ures level below the peak voltage that the equipment can withstand. In most cases, using only one SPD cannot achieve this goal, especially because the intensity of surges cannot be predicted, and overvoltage can occur when the conductor length exceeds 10m. The best protection system is to use the 3-STEP method, where the continuous stage combines high discharge capacitance devices with low-performance devices with the best voltage protection level. Based on the type of transient pulse received by each protection zone in the device, this problem is solved by defining the SPD type.


ICHYTI ac power surge protection device Parameter (Specification)

Product Model

YTTS1-C40

Pole

1P +N

2P

4P

Rated Frequency

One port

SPD Category

Combined type

Test Category

Class H test

Maximum Continuous Operating Voltage Uc

275VAC

275VAC

385VAC

Voltage Protection Level Up(8/20|Js)

<1.5kV

<1.5kV

<1.8kV

Nominal Discharge Current ln(8/20|Js)

20kA

Maximum Discharge Current lmax(8/20|Js)

40kA

Response Time tA

<25ns

Size

18x90x72

36x90x72

72x90x72

Failure Indication

Green: Normal Red: Failure

Sectional Area Of Wires

6〜25mm2

Installation Method

35mm standard rail

Working Environment Temperature

-40℃ ~ + 85℃

Sheathing Material

Plastic

Protection Level

IP20

Executive Standard

IEC 61643-11


ICHYTI ac power surge protection device Feature

 In the event of a malfunction, the green window will change and have remote alarm control function.

 It has high working voltage and strong lightning discharge ability, with high safety.

 The response speed is 25 nanoseconds.

 The new technology of high-energy gap N-PE discharge electrode has been adopted.



ICHYTI ac power surge protection device Details

Ac Power Surge Protection Device



ICHYTI ac power surge protection device Dimensions and wiring

Ac Power Surge Protection Device


ICHYTI ac power surge protection device FAQ

Q: When should SPD be used?

A: CHYT Surge protective devices (SPD) are employed to safeguard the electrical infrastructure, including the consumer unit, wiring, and associated components, against electrical surges caused by transient overvoltages.


Q: Are DC and AC fuses the same?

A: DC fuses are constructed differently than simple AC fuses and include additional components for arc extinguishing. The rated voltages for AC and DC fuses also vary. DC fuses are considered more advanced due to their complex design.


Q: Can I get a sample before the bulk order?

A: Certainly, we are pleased to accept sample orders for quality testing. We also welcome mixed samples.
