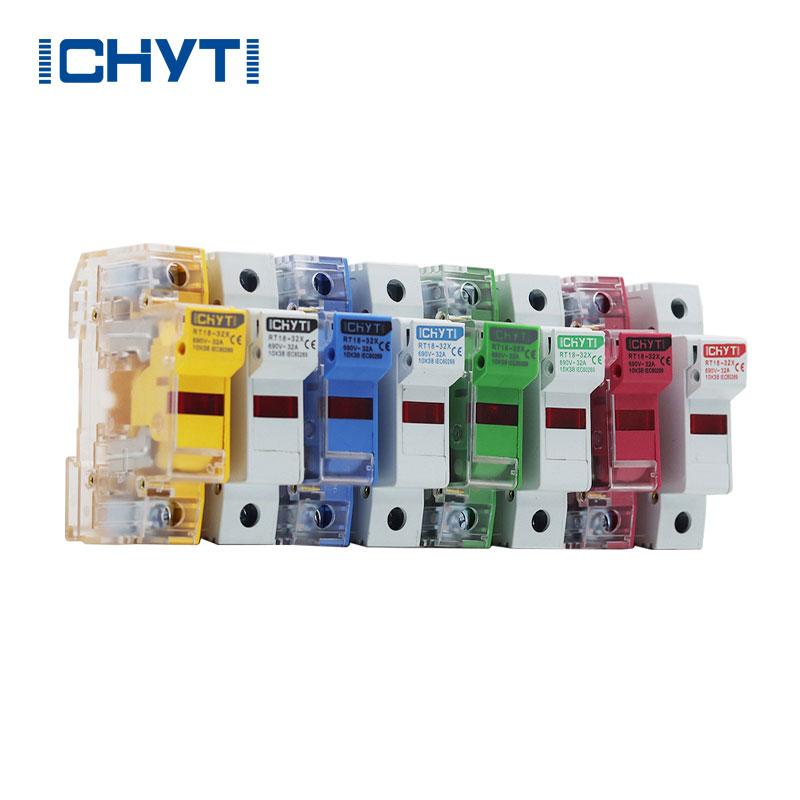

10*38 Ac Fuse Holder

China suppliers ICHYTI Wholesale 10*38 ac fuse holder Price List is an electrical component made of metal conductors and connected in series in a circuit. When an overload or short circuit current passes through a circuit, 10*38 ac fuse holder will fuse due to its own heating, thereby cutting off the circuit and protecting the circuit and equipment. 10*38 ac fuse holder have the characteristics of simple structure and ease of use, and are widely used in power systems, various electrical equipment, and household appliances.

ICHYTI 10*38 ac fuse holder Parameter (Specification)

ICHYTI 10*38 ac fuse holder Structural characteristics

The action of a fuse is achieved by melting the melt, and it has a very obvious characteristic, namely the ampere second characteristic. The ampere second characteristic refers to the operating current and operating time characteristics of a fuse, also known as the anti delay characteristic. This means that when the current in the circuit exceeds the rated current of the fuse, the fuse will fuse in a short period of time; When the current in the circuit is slightly higher than the rated current of the fuse, the fuse will have a longer melting time. In short, the larger the overload current, the shorter the fuse time; The smaller the overload current, the longer the fuse time.

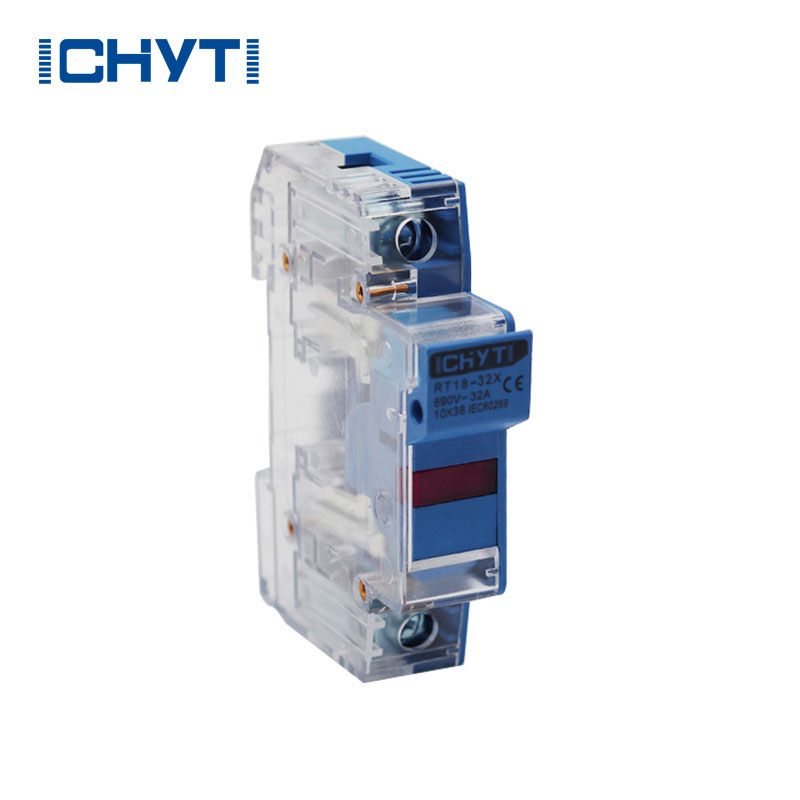

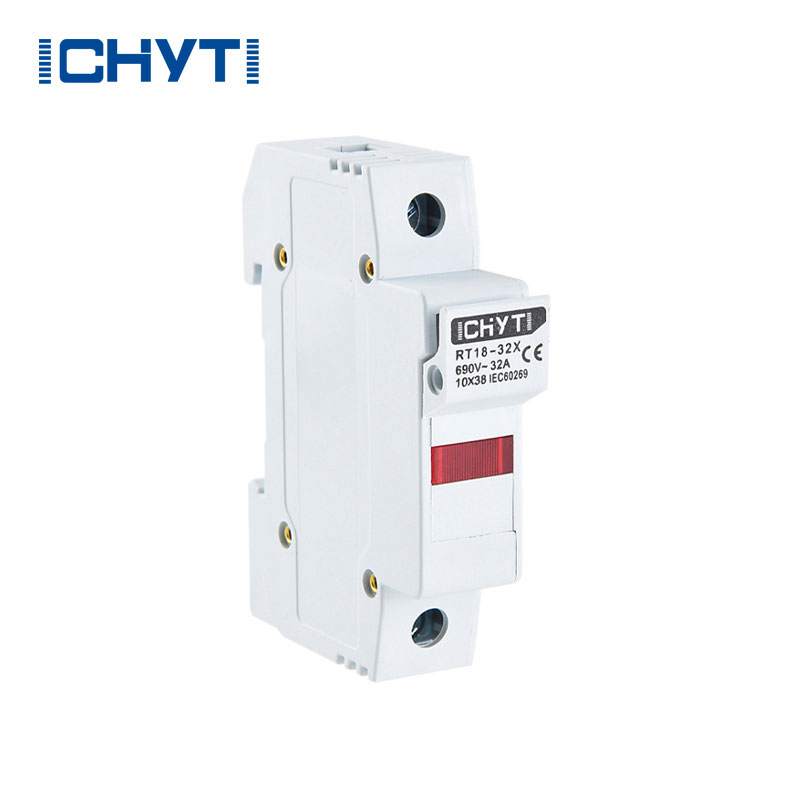

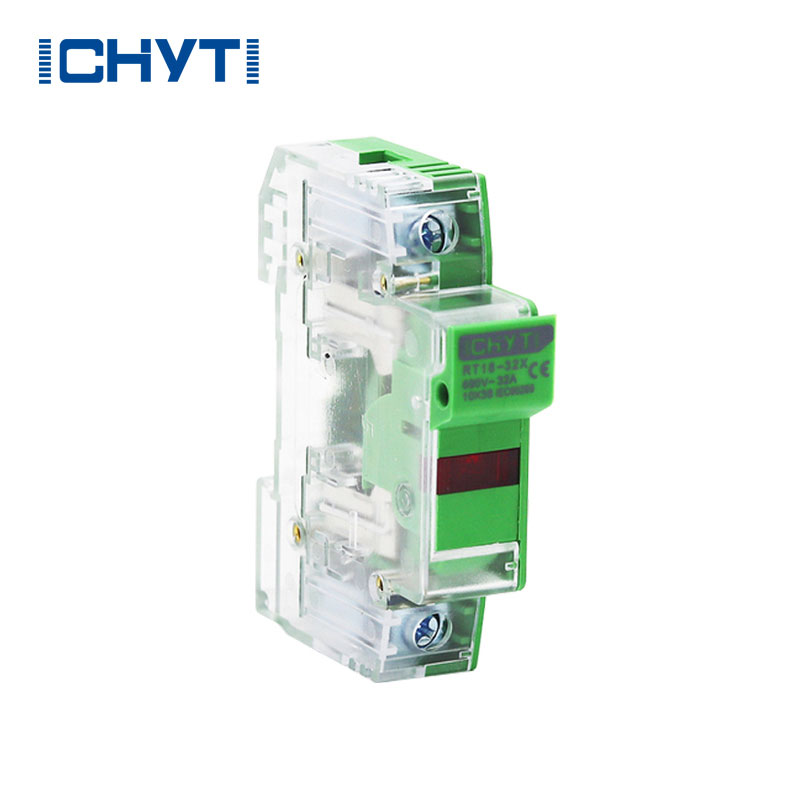

ICHYTI 10*38 ac fuse holder Details

ICHYTI 10*38 ac fuse holder Dimensions and wiring



ICHYTI 10*38 ac fuse holder Common types

Plug-in fuses are usually used at the end of lines with voltage levels of 380V and below as short circuit protection for distribution branches or electrical equipment. This type of fuse can be easily inserted and removed, making it easy to replace the fuse link.

The upper cover of the melt of the spiral fuse is equipped with a fuse indicator. When the melt melts, the indicator will pop out and can be observed through the glass hole on the porcelain cap. Spiral fuses have a high breaking current and are suitable for circuits with voltage levels of 500V and below and current levels of 200A and below. They are commonly used in machine tool electrical control equipment for short circuit protection.
